NSN 5970-00-899-6941 8616040, 00-899-6941, 008996941
Product Details | BUSHING INSULATOR
5970-00-899-6941 An insulator designed to fit into and reduce the effective diameter of the hole(s). It may include mounting and/or conducting hardware. For flexible bushing-type insulators that are self-retaining and consist of two facing flanges separated by a neck, see GROMMET, NONMETALLIC. Also see SPACER, SLEEVE and BUSHING, SLEEVE. Excludes INSULATION SLEEVING, ELECTRICAL.
Part Alternates: 8616040, 5970-00-899-6941, 00-899-6941, 5970008996941, 008996941
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-899-6941 | 18301 ( INSULATOR, BUSHING ) |
Drawings & Photos | NSN 5970-00-899-6941
Cross Reference | NSN 5970-00-899-6941
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8616040 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-899-6941
Technical Data | NSN 5970-00-899-6941
| Characteristic | Specifications |
|---|---|

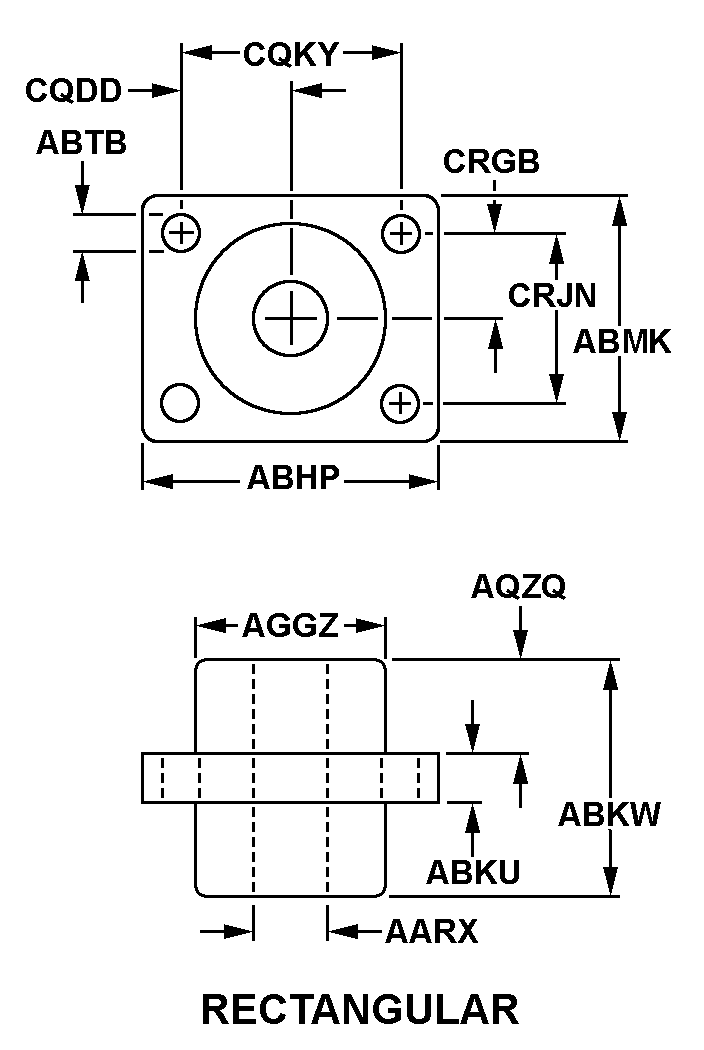

| STYLE DESIGNATOR | C25 RECTANGULAR |
| INSIDE DIAMETER | ANY ACCEPTABLE |
| OVERALL LENGTH | 1.281 INCHES NOMINAL |
| FLANGE THICKNESS | 0.250 INCHES NOMINAL |
| OVERALL HEIGHT | 0.410 INCHES NOMINAL |
| OVERALL WIDTH | 1.281 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| SHANK OUTSIDE DIAMETER | 0.880 INCHES NOMINAL |
| SHANK HEIGHT | 0.160 INCHES NOMINAL |
| THIRD MOUNTING HOLE SPACING | 0.844 INCHES NOMINAL |
| FIRST MOUNTING HOLE SPACING | 0.968 INCHES NOMINAL |
| FOURTH MOUNTING HOLE SPACING | 0.484 INCHES NOMINAL |
| SECOND MOUNTING HOLE SPACING | 0.968 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PLASTIC, MELAMINE, MIL-M-14, TYPE MME |
| IDENTIFICATION CODE COLOR | WHITE |
| SPECIAL FEATURES | FLANGE AT ONE END,C/B AT FLANGE END 0.820 IN. DIA BY 0.035 IN. DEP,2 EA CONDUCTOR HOLE 0.161 IN. DIA CENTRALLY LOCATED ON HORIZONTAL C/L @SPACED 0.437 IN. C TO C,2 EA CONDUCTOR HOLE 0.086-56NC-2B THD SIZE CENTRALLY LOCATED ON VERTICALLY SPACED 0.500 IN .C TO C |
Restrictions/Controls & Freight Information | NSN 5970-00-899-6941
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
