Product Details | FEEDTHRU INSULATOR
5970-00-904-0230 An insulator which is specifically designed to provide for the passage of electrical conductors through such items as panels, bulkheads, walls, and the like. It consists of two or more insulators, including one or more studs fed through the items in such a way as to be used as conductors. The studs may be used for mounting. See also INSULATOR, BOWL; and TERMINAL, FEEDTHRU, INSULATED.
Part Alternates: REC61002REVB, 5970-00-904-0230, 00-904-0230, 5970009040230, 009040230
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-904-0230 | 18284 ( INSULATOR, FEEDTHRU ) |
Drawings & Photos | NSN 5970-00-904-0230
Cross Reference | NSN 5970-00-904-0230
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| REC61002REVB | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-904-0230
Technical Data | NSN 5970-00-904-0230
| Characteristic | Specifications |
|---|---|

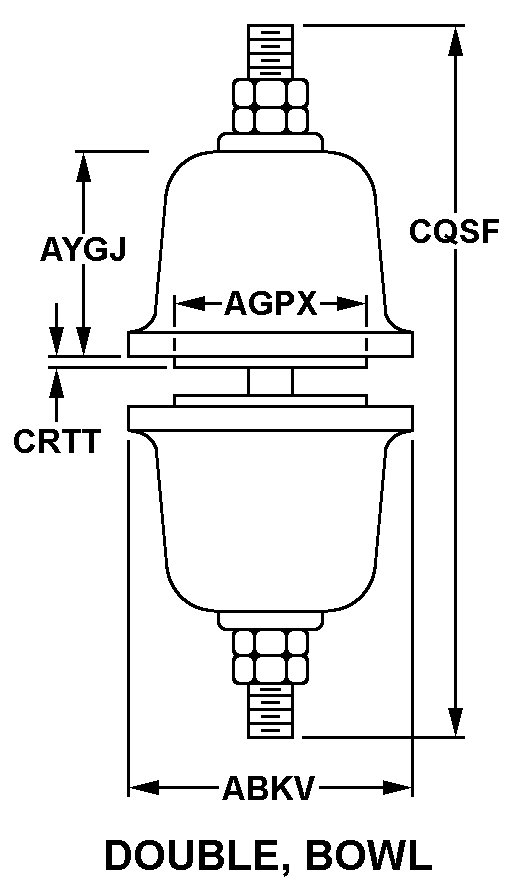

| STYLE DESIGNATOR | F6 DOUBLE, BOWL |
| OUTSIDE DIAMETER | 10.000 INCHES NOMINAL |
| CENTER STUD LENGTH | 18.250 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL CERAMIC |
| SURFACE TREATMENT AND LOCATION | OVERALL GLAZED |
| SCREW THREAD SERIES DESIGNATOR AND LOCATION | CENTER STUD UNC |
| SCREW THREAD DIAMETER AND LOCATION | 1.375 CENTER STUD INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH AND LOCATION | 10 CENTER STUD |
| SPECIAL FEATURES | SHIELD LOCATED AT TOP OF INSULATOR BENEATH LUG NUT |
| TEST DATA DOCUMENT | 80064-REC61002B DRAWING |
| MANUFACTURERS CODE | 80064 |
| DESIGN CONTROL REFERENCE | REC61002REVB |
Restrictions/Controls & Freight Information | NSN 5970-00-904-0230
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
