NSN 5970-00-907-9566 10865333, 00-907-9566, 009079566
Product Details | CLEAT INSULATOR
5970-00-907-9566 An insulator of a generally rectangular shape which is designed to be attached to a rigid structure. It consists of two separate parts. For items of a generally cylindrical shape, see INSULATOR, KNOB.
Part Alternates: 10865333, 5970-00-907-9566, 00-907-9566, 5970009079566, 009079566
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-907-9566 | 18282 ( INSULATOR, CLEAT ) |

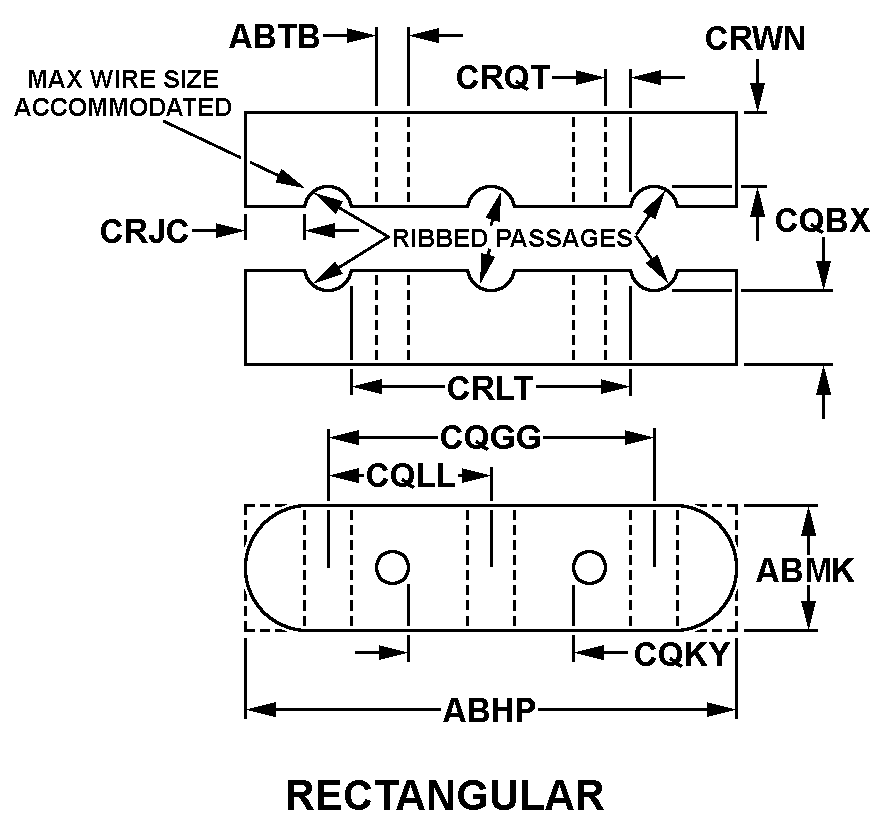

Drawings & Photos | NSN 5970-00-907-9566
Demand History | NSN 5970-00-907-9566
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5970-00-907-9566 | 2024-11-309 | 1 | DIBBS |
| 5970-00-907-9566 | 2024-01-18 | 24 | DIBBS |
| 5970-00-907-9566 | 2022-04-118 | 1 | DIBBS |
Cross Reference | NSN 5970-00-907-9566
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10865333 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5970-00-907-9566
Related Products | NSN 5970-00-907-9566
Technical Data | NSN 5970-00-907-9566
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | D3 RECTANGULAR |
| OVERALL LENGTH | 1.880 INCHES NOMINAL |
| OVERALL WIDTH | 0.750 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.280 INCHES NOMINAL |
| FIRST DISTANCE BETWEEN CONDUCTOR GROOVES | 1.240 INCHES NOMINAL |
| SECOND DISTANCE BETWEEN CONDUCTOR GROOVES | 0.620 INCHES NOMINAL |
| FIRST DISTANCE FROM CONDUCTOR SLOT TO OPPOSITE SURFACE | 0.260 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5970-00-907-9566
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5970-00-907-9566
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
