NSN 5970-01-046-8494 75B20348, 01-046-8494, 010468494
Product Details | BUSHING INSULATOR
5970-01-046-8494 An insulator designed to fit into and reduce the effective diameter of the hole(s). It may include mounting and/or conducting hardware. For flexible bushing-type insulators that are self-retaining and consist of two facing flanges separated by a neck, see GROMMET, NONMETALLIC. Also see SPACER, SLEEVE and BUSHING, SLEEVE. Excludes INSULATION SLEEVING, ELECTRICAL.
Part Alternates: 75B20348, 5970-01-046-8494, 01-046-8494, 5970010468494, 010468494
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 AUG 1977 | 01-046-8494 | 18301 ( INSULATOR, BUSHING ) |
Drawings & Photos | NSN 5970-01-046-8494
Cross Reference | NSN 5970-01-046-8494
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 75B20348 | 01341 | MICROPHASE CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5970-01-046-8494
Related Products | NSN 5970-01-046-8494
Technical Data | NSN 5970-01-046-8494
| Characteristic | Specifications |
|---|---|

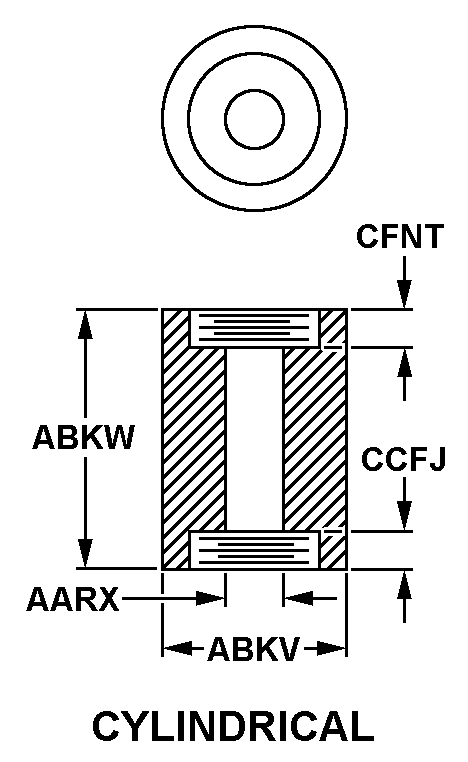

| STYLE DESIGNATOR | C6 CYLINDRICAL |
