Product Details | BUSHING INSULATOR
5970-01-109-3682 An insulator designed to fit into and reduce the effective diameter of the hole(s). It may include mounting and/or conducting hardware. For flexible bushing-type insulators that are self-retaining and consist of two facing flanges separated by a neck, see GROMMET, NONMETALLIC. Also see SPACER, SLEEVE and BUSHING, SLEEVE. Excludes INSULATION SLEEVING, ELECTRICAL.
Part Alternates: 900757, 5970-01-109-3682, 01-109-3682, 5970011093682, 011093682
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13-MAR-81 | 01-109-3682 | 18301 ( INSULATOR, BUSHING ) |
Drawings & Photos | NSN 5970-01-109-3682
Demand History | NSN 5970-01-109-3682
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5970-01-109-3682 | 2013-11-321 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-01-109-3682
Technical Data | NSN 5970-01-109-3682
| Characteristic | Specifications |
|---|---|

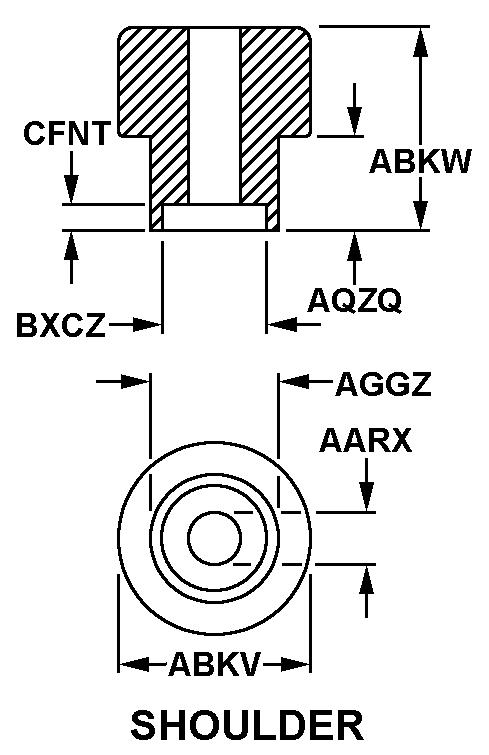

| STYLE DESIGNATOR | C38 SHOULDER |
| INSIDE DIAMETER | 0.330 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.625 INCHES NOMINAL |
| OVERALL HEIGHT | 0.120 INCHES NOMINAL |
| SHANK OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| SHANK HEIGHT | 0.055 INCHES MINIMUM AND 0.065 INCHES MAXIMUM |
| FIRST COUNTERBORE DIAMETER | 0.415 INCHES MINIMUM AND 0.430 INCHES MAXIMUM |
| FIRST COUNTERBORE DEPTH | 0.025 INCHES MINIMUM AND 0.035 INCHES MAXIMUM |
| MATERIAL AND LOCATION | OVERALL PLASTIC,EXPOXY RESIN ARALDITE 6010 ANDARALDITE HARDENER 906,CIBA-GEIGY CORP |
| SPECIAL FEATURES | ONE SLOT 0.060 IN. MIN AND 0.070 IN. MAX |
| MANUFACTURERS CODE | 33827 |
| DESIGN CONTROL REFERENCE | 900757 |
