Product Details | ANGLE BRACKET INSULATOR
5970-01-141-4515 An insulator formed into a dihedral angle (generally a right angle) designed to position, align or support an item(s) in relation to another.
Part Alternates: 531R959H01, 5970-01-141-4515, 01-141-4515, 5970011414515, 011414515
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-141-4515 | 19191 ( INSULATOR, ANGLE BRACKET ) |
Drawings & Photos | NSN 5970-01-141-4515
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-01-141-4515
Technical Data | NSN 5970-01-141-4515
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC,ACETAL,L-P-392,TYPE 1,CLASS 1 AND RUBBER,SILICONE,ZZ-R-765,CLASS 2B,GRADE 50 |
| FIRST LEG LENGTH | 0.250 INCHES NOMINAL |
| SECOND LEG LENGTH | 0.235 INCHES NOMINAL |
| FIRST LEG THICKNESS | 0.050 INCHES NOMINAL |
| SECOND LEG THICKNESS | 0.090 INCHES NOMINAL |
| ANGLE | 90.0 DEGREES |
| LEG WIDTH | 6.480 INCHES NOMINAL |
| LEG CORNER RADIUS | 0.090 INCHES NOMINAL |
| WIDTH AT LEG END | 5.720 INCHES NOMINAL |

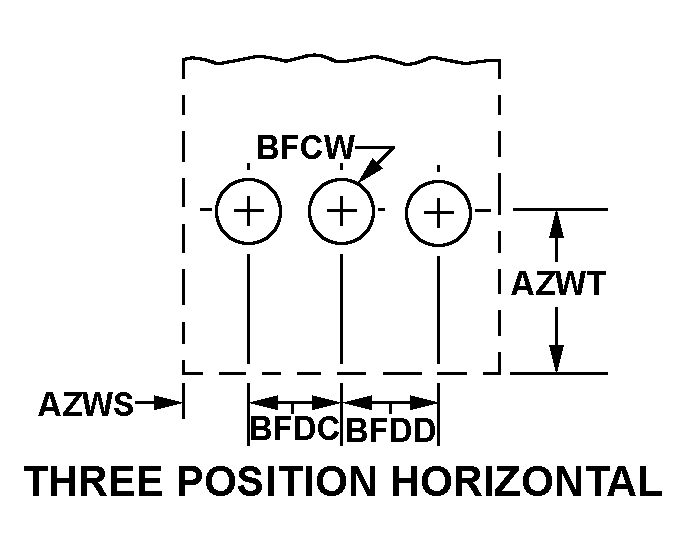

| HOLE ARRANGEMENT STYLE | 6 THREE POSITION HORIZONTAL |
| HORIZONTAL DISTANCE FROM EDGE TO HOLE CENTER | 0.490 INCHES NOMINAL |
| VERTICAL DISTANCE FROM EDGE TO HOLE CENTER | 0.140 INCHES NOMINAL |
| HOLE DIAMETER/SIZE | 0.070 INCHES MINIMUM AND 0.075 INCHES MAXIMUM |
| HORIZONTAL DISTANCE BETWEEN FIRST AND SECOND HOLE CENTERS | 2.750 INCHES NOMINAL |
| HORIZONTAL DISTANCE BETWEEN SECOND AND THIRD HOLE CENTERS | 2.750 INCHES NOMINAL |
| VOLTAGE RATING AND TYPE | NOT RATED |
| REINFORCEMENT FEATURE | PROVIDED |
| SPECIAL FEATURES | CORNERS OF W AT LEG END ROUNDED RADIUS 0.090 IN. |
| MANUFACTURERS CODE | 97942 |
| DESIGN CONTROL REFERENCE | 531R959H01 |
