NSN 5970-01-142-5814 3263611, 326361-1, 01-142-5814
Product Details | BUSHING INSULATOR
5970-01-142-5814 An insulator designed to fit into and reduce the effective diameter of the hole(s). It may include mounting and/or conducting hardware. For flexible bushing-type insulators that are self-retaining and consist of two facing flanges separated by a neck, see GROMMET, NONMETALLIC. Also see SPACER, SLEEVE and BUSHING, SLEEVE. Excludes INSULATION SLEEVING, ELECTRICAL.
Part Alternates: 3263611, 326361-1, 5970-01-142-5814, 01-142-5814, 5970011425814, 011425814
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 NOV 1982 | 01-142-5814 | 18301 ( INSULATOR, BUSHING ) |
Drawings & Photos | NSN 5970-01-142-5814
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-01-142-5814
Technical Data | NSN 5970-01-142-5814
| Characteristic | Specifications |
|---|---|

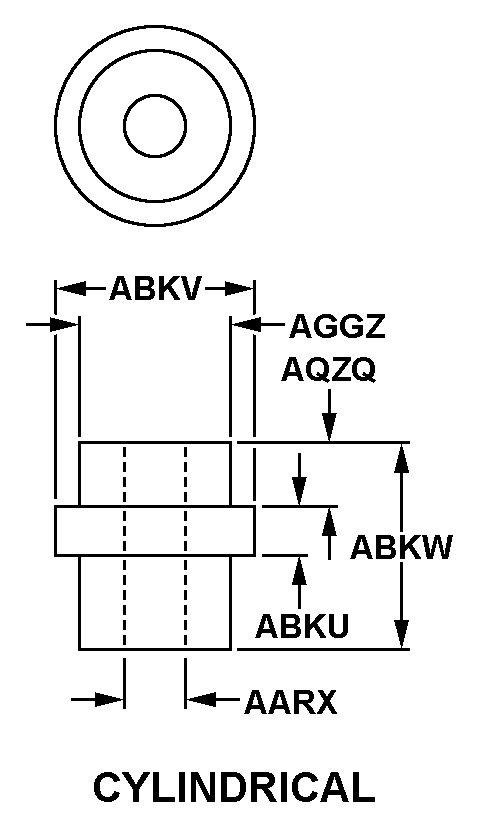

| STYLE DESIGNATOR | C16 CYLINDRICAL |
| SHANK HEIGHT | 1.250 INCHES NOMINAL |
| SPECIAL FEATURES | PLATE IS OFFSET AT ANGLE TO TUBE 0.260 IN. |
Restrictions/Controls & Freight Information | NSN 5970-01-142-5814
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
