Product Details | ANGLE BRACKET INSULATOR
5970-01-275-9645 An insulator formed into a dihedral angle (generally a right angle) designed to position, align or support an item(s) in relation to another.
Part Alternates: 9472, 5970-01-275-9645, 01-275-9645, 5970012759645, 012759645
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 MAR 1988 | 01-275-9645 | 19191 ( INSULATOR, ANGLE BRACKET ) |
Drawings & Photos | NSN 5970-01-275-9645
Demand History | NSN 5970-01-275-9645
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9472 | 2024-05-135 | 70 | DIBBS |
| 9472 | 2024-03-65 | 25 | DIBBS |
| 9472 | 2024-01-09 | 10 | DIBBS |
| 9472 | 2024-01-01 | 6 | DIBBS |
| 9472 | 2023-08-227 | 6 | DIBBS |
| 9472 | 2023-07-208 | 6 | DIBBS |
Cross Reference | NSN 5970-01-275-9645
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9472 | 10741 | CARLISLE AND FINCH COMPANY, THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5970-01-275-9645
Related Products | NSN 5970-01-275-9645
Technical Data | NSN 5970-01-275-9645
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC,XENON,THE CARLISLE AND FINCH CO. |
| FIRST LEG LENGTH | 1.062 INCHES NOMINAL |
| SECOND LEG LENGTH | 1.187 INCHES NOMINAL |
| FIRST LEG THICKNESS | 0.015 INCHES NOMINAL |
| SECOND LEG THICKNESS | 0.015 INCHES NOMINAL |
| ANGLE | 90.0 DEGREES |
| LEG WIDTH | 2.000 INCHES NOMINAL |

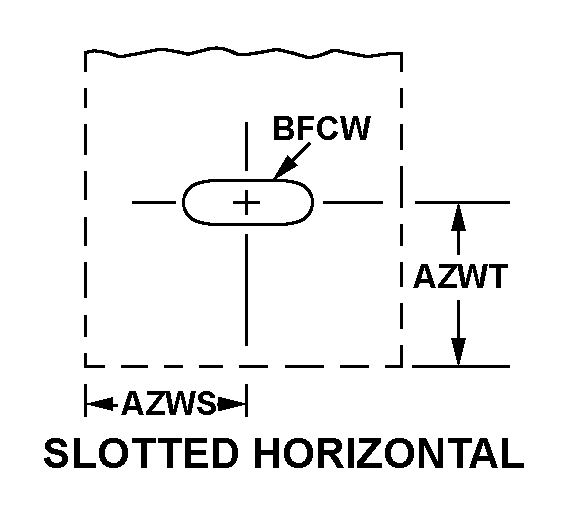

| HOLE ARRANGEMENT STYLE | 13 SLOTTED HORIZONTAL |
| HORIZONTAL DISTANCE FROM EDGE TO HOLE CENTER | 0.437 INCHES NOMINAL |
| VERTICAL DISTANCE FROM EDGE TO HOLE CENTER | 0.500 INCHES NOMINAL |
| REINFORCEMENT FEATURE | NOT PROVIDED |
Restrictions/Controls & Freight Information | NSN 5970-01-275-9645
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 024520 | BOAT ASSY R OUTFIT STEERING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 810 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | N | Ship's parts. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
