NSN 5970-01-326-1807 3941235017, 394-1235-017, 4894020014
Product Details | INSULATOR ASSEMBLY
5970-01-326-1807 Two or more insulators on a common mounting or mounted on each other. Do not use for single complete feedthru insulators (double bowl type) which are termed INSULATOR, FEEDTHRU regardless of complexity.
Part Alternates: 3941235017, 394-1235-017, 4894020014, 489-4020-014, 5970-01-326-1807, 01-326-1807, 5970013261807, 013261807
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 SEP 1990 | 01-326-1807 | 00220 ( INSULATOR ASSEMBLY ) |
Drawings & Photos | NSN 5970-01-326-1807
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-01-326-1807
Technical Data | NSN 5970-01-326-1807
| Characteristic | Specifications |
|---|---|
| INSULATOR QUANTITY | 2 |

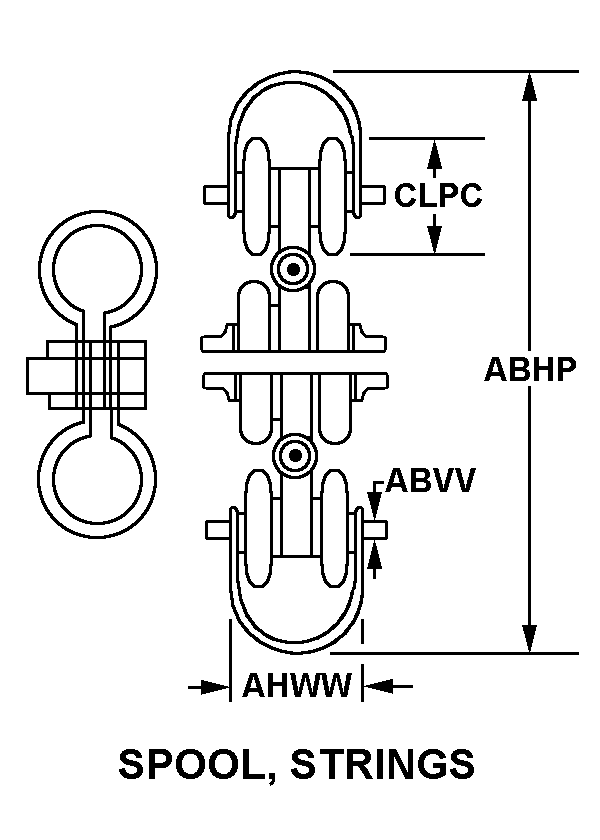

| STYLE DESIGNATOR | A1 SPOOL, STRINGS |
Restrictions/Controls & Freight Information | NSN 5970-01-326-1807
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
