NSN 5970-01-347-2604 5022000632S , 6749953, 996388-001
Product Details | ELECTRICAL TEXTILE SLEEVING
5970-01-347-2604 A treated or untreated flexible tubing of natural or synthetic fibers such as cotton, silk, rayon, glass, or nylon, specifically designed to inclose a wire or cable but does not have a definite rated electrical characteristic. Includes items in bulk or in definite fabricated lengths. For items having definite rated electrical characteristics, see INSULATION SLEEVING, ELECTRICAL.
Part Alternates: 5022000632S , 6749953, 996388-001, 5970-01-347-2604, 01-347-2604, 5970013472604, 013472604, 996388001
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 OCT 1991 | 01-347-2604 | 19932 ( SLEEVING, TEXTILE, ELECTRICAL ) |

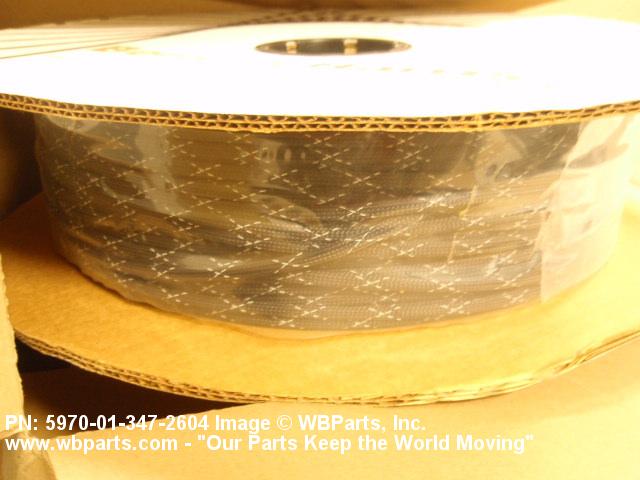

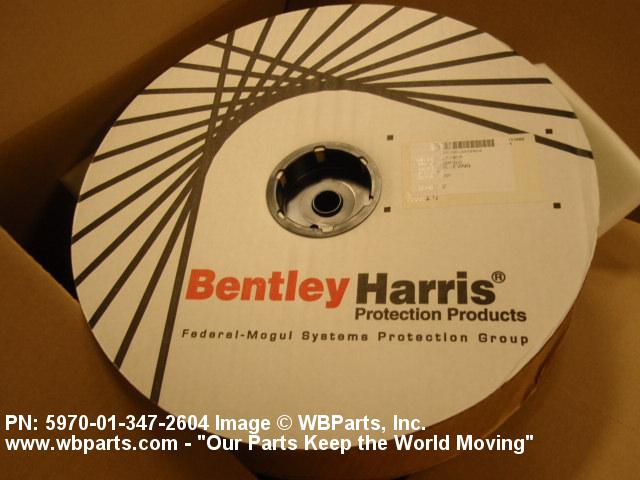

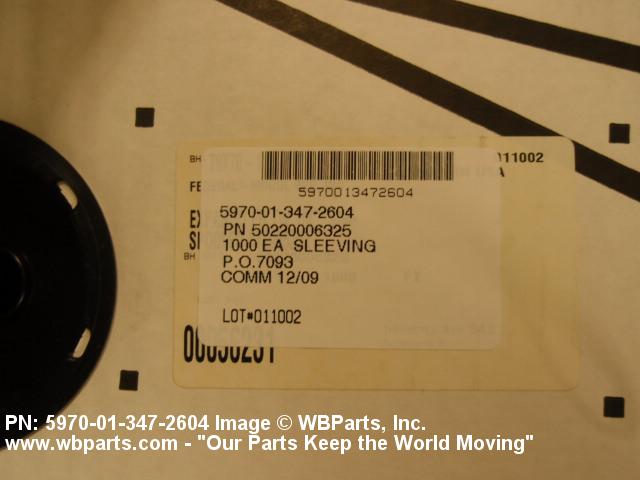

Drawings & Photos | NSN 5970-01-347-2604
Demand History | NSN 5970-01-347-2604
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5970-01-347-2604 | 2015-08-221 | 807 | DIBBS |
| 5970-01-347-2604 | 2015-04-97 | 2120 | DIBBS |
| 5970-01-347-2604 | 2013-01-15 | 1000 | DIBBS |
| 5970-01-347-2604 | 2012-09-256 | 100 | DIBBS |
| 5970-01-347-2604 | 2012-08-242 | 100 | DIBBS |
| 5970-01-347-2604 | 2012-08-240 | 1200 | DIBBS |
| 5970-01-347-2604 | 2012-08-227 | 100 | DIBBS |
| 5970-01-347-2604 | 2009-11-323 | 1000 | United States |
| 5970-01-347-2604 | 2009-11-323 | 1000 | United States |
| 5970-01-347-2604 | 2009-10-293 | 1000 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-01-347-2604
Technical Data | NSN 5970-01-347-2604
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A2 NONSHRINKABLE |
| WALL THICKNESS | 0.025 INCHES NOMINAL |
| INSIDE DIAMETER | 0.250 INCHES NOMINAL |
| OVERALL LENGTH | ANY ACCEPTABLE |
| MATERIAL | FLAME-RETARDED BRAIDED FIBER,YPE PSTR,FORM MF IN ACCORDANCE WITH MIL-C-572 |
| COLOR | BLACK |
| FLEXIBILITY | FLEXIBLE |
| TEMP RATING | 125.0 DEG CELSIUS |
| ENVIRONMENTAL PROTECTION | MILDEW RESISTANT |
| SPECIAL FEATURES | WHITE CRISS-CROSS TRACER |
| MANUFACTURERS CODE | 81851 |
| DESIGN CONTROL REFERENCE | 6749953 |
Restrictions/Controls & Freight Information | NSN 5970-01-347-2604
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CH | Defense Supply Center Richmond Richmond, VA 23297 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5970-01-347-2604
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
T FT : Foot |
