NSN 5975-00-050-5647 00-050-5647, 000505647
Product Details | ELECTRICAL EQUIPMENT CABINET
5975-00-050-5647 An enclosure generally fabricated of sheet material designed to accommodate (but does not include) electrical/electronic equipment so that the equipment may be operated without removal. It may include wires, cables, terminal boards, connectors, etc., required for equipment operation. For items designed to accommodate equipment mounted on panels, see RACK, ELECTRICAL EQUIPMENT. See also CASE (2) (as modified). Excludes INTERCONNECTING BOX; INTERCONNECTING CABINET; JUNCTION BOX; and TERMINAL BOX.
Part Alternates: 5975-00-050-5647, 00-050-5647, 5975000505647, 000505647
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-050-5647 | 06352 ( CABINET, ELECTRICAL EQUIPMENT ) |
Drawings & Photos | NSN 5975-00-050-5647
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-050-5647
Technical Data | NSN 5975-00-050-5647
| Characteristic | Specifications |
|---|---|

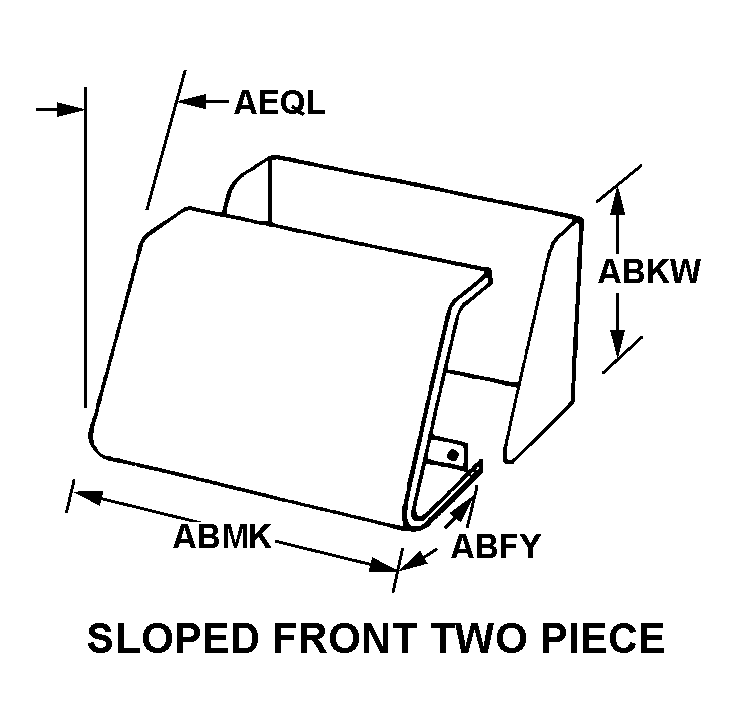

| STYLE DESIGNATOR | B8 SLOPED FRONT TWO PIECE |
| OVERALL DEPTH | 4.186 INCHES NOMINAL |
| OVERALL HEIGHT | 4.000 INCHES NOMINAL |
| OVERALL WIDTH | 7.000 INCHES NOMINAL |
| PANEL SLOPE ANGLE IN DEG | 29.0 |
| MATERIAL | ALUMINUM |
| COLOR | GRAY, HAMMERTONE |
| ENVIRONMENTAL PROTECTION | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5975-00-050-5647
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
