NSN 5975-00-141-0546 ELB13, ELB-13, LB100SS

Product Details | CONDUIT OUTLET

5975-00-141-0546 An item designed to be used in a conduit system for the purpose of providing outlets or attachments for electrical wiring devices and/or designed to provide access and facilitate installment of wires. It may or may not include a cover(s). It does not include wiring devices. Excludes ENTRANCE ELBOW, ELECTRICAL. See also JUNCTION BOX.

Part Alternates: ELB13, ELB-13, LB100SS, LB-100SS, LB49MT, LB-49MT, TWOLB4, TWOLB-4, LB34, 15123, 15-123, 17503, 5975-00-141-0546, 00-141-0546, 5975001410546, 001410546

Electrical and Electronic Equipment Components | Electrical Hardware and Supplies

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	17 DEC 1969	00-141-0546	06945 ( CONDUIT OUTLET )

Drawings & Photos | NSN 5975-00-141-0546

Part Number	Request Date	QTY	Origin
TWOLB-4	2021-07-188	2	DIBBS
15123	2020-08-223	34	United States
15123	2018-11-324	4
15123	2017-08-214	2	Singapore
15123	2016-05-125	20	US
15123	2015-02-57	2	United States
15123	2013-05-127	2	United States

Cross Reference | NSN 5975-00-141-0546

Part Number	Cage Code	Manufacturer
15-123	72971	EFCOR INC
17503	33342	ATLAS TECHNOLOGIES INC
ELB-13	33342	ATLAS TECHNOLOGIES INC
LB-100SS	83879	EGS ELECTRIC CO LLC
LB-49MT	77774	CROUSE-HINDS LIGHTING
LB34	05500	BRIDGEPORT FITTINGS INC
LB49MT	15235	CROUSE-HINDS CO
TWOLB-4	75282	KILLARK ELECTRIC MFG CO

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5975-00-141-0546

Compare

Related Products | NSN 5975-00-141-0546

5975-00-141-0550, 5975-00-141-0554, 5975-00-141-3559, 5975-00-141-4365, 5975-00-141-4842

Technical Data | NSN 5975-00-141-0546

Characteristic	Specifications

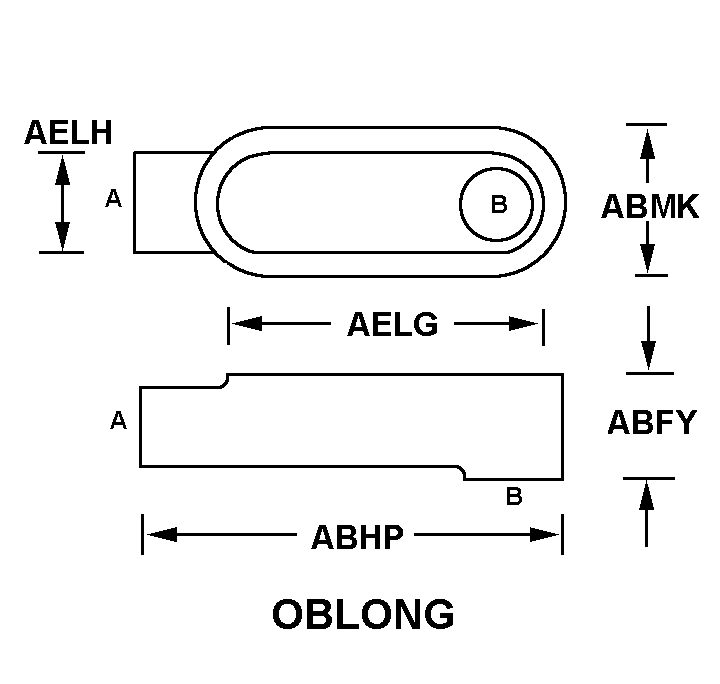

STYLE DESIGNATOR	LB OBLONG
OVERALL DEPTH	3.469 INCHES NOMINAL
OVERALL LENGTH	7.031 INCHES NOMINAL
OVERALL WIDTH	2.188 INCHES NOMINAL
COVER OPENING LENGTH	5.312 INCHES NOMINAL
COVER OPENING WIDTH	1.938 INCHES NOMINAL
CONDUIT ENTRANCE TYPE	HUB DRILLED ALL ENTRANCE
CONDUIT TYPE ACCOMMODATED	RIGID METALLIC THINWALL ALL ENTRANCE
CONDUIT TRADE SIZE ACCOMMODATED	1.250 INCHES ALL ENTRANCE
TRADE DESIGNATION	LB SERIES MARK 9
MATERIAL	ALUMINUM, COPPER FREE OVERALL
SURFACE TREATMENT	LACQUER, ALUMINUM CELLULOSE OVERALL
COVER MOUNTING METHOD	THREADED FASTENER
COVER MOUNTING HOLE QUANTITY	2
COVER MOUNTING HOLE ARRANGEMENT STYLE	F1 LINE
COVER MOUNTING SURFACE TYPE	FLAT
COVER MOUNTING GASKET TYPE	SOLID CENTER
COVER QUANTITY	1
FUNCTIONAL COVER STYLE	E1 BLANK
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION	NOT RATED

Restrictions/Controls & Freight Information | NSN 5975-00-141-0546

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	063160	SWITCH BOXES/ELEC ENCLOSURES
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	CX	Defense Supply Center Richmond Richmond, VA 23297-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5975-00-141-0546

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
