NSN 5975-00-212-6248 AN31116, AN3111-6, SS1876
Product Details | ELECTRICAL BONDING RING
5975-00-212-6248 An item of metallic composition, usually round and flat with a center hole or slotted hole designed to accommodate an electrical cable or conduit, and which, when used in conjunction with a cable clamp or similar locking device, completes a positive bond between the cable or conduit fitting, such as connectors, adapters, and couplings, and the cable or conduit shield and/or individual conductor shield(s). See also FERRULE, ELECTRICAL CONDUCTOR.
Part Alternates: AN31116, AN3111-6, SS1876, SS187-6, 21-1089833, 7614260PT23, 5975-00-212-6248, 00-212-6248, 5975002126248, 211089833, 002126248
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-212-6248 | 11130 ( RING, ELECTRICAL BONDING ) |

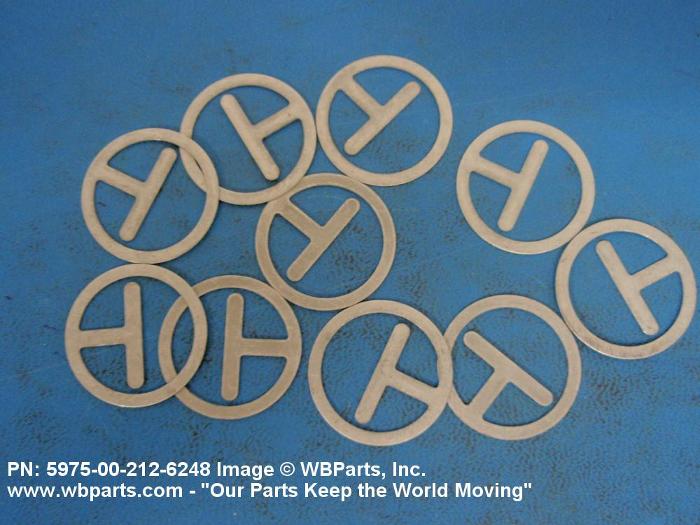

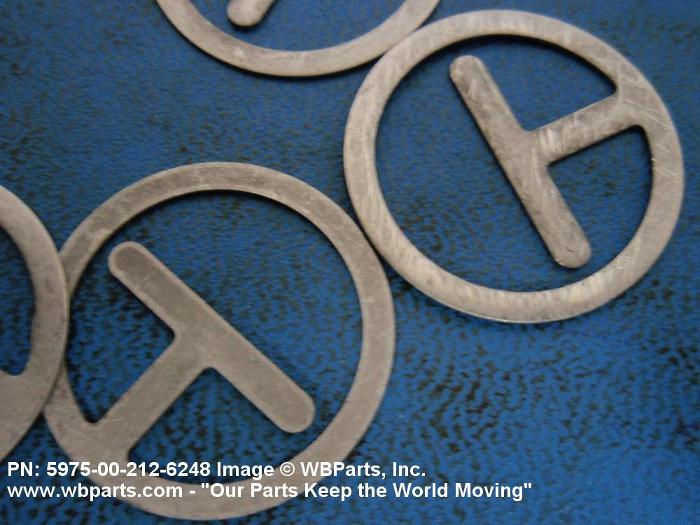

Drawings & Photos | NSN 5975-00-212-6248
Demand History | NSN 5975-00-212-6248
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5975-00-212-6248 | 2024-10-276 | 15 | US |
| 7614260PT23 | 2016-02-49 | 4 | Canada |
| 5975-00-212-6248 | 2011-11-333 | 4 | Canada |
| 5975-00-212-6248 | 2011-08-216 | 1 | Canada |
| 5975-00-212-6248 | 2011-02-53 | 1 | Canada |
| 5975-00-212-6248 | 2011-02-52 | 1 | Canada |
Cross Reference | NSN 5975-00-212-6248
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 21-1089833 | 38597 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 7614260PT23 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 7614260PT23 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| AN3111-6 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| SS187-6 | 10639 | AVIONICS SPECIALTIES INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5975-00-212-6248
Related Products | NSN 5975-00-212-6248
Technical Data | NSN 5975-00-212-6248
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | N1 TAB LOCK |
| SLOT WIDTH | 0.125 INCHES NOMINAL |
| RADIUS | 0.031 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.020 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 1.105 INCHES NOMINAL |
| STRAP WIDTH | 0.125 INCHES NOMINAL |
| TONGUE LENGTH | 0.500 INCHES NOMINAL |
| ACCOMMODATION HOLE INSIDE DIAMETER | 0.914 INCHES NOMINAL |
| MATERIAL | COPPER BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-576 FED SPEC SINGLE MATERIAL RESPONSE BODY |
| SURFACE TREATMENT | TIN BODY |
| MOUNTING METHOD | ANY ACCEPTABLE |
| III SUPPLEMENTARY FEATURES | END ITEM SHERIDAN M-551 TANK |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN3111-6 |
Restrictions/Controls & Freight Information | NSN 5975-00-212-6248
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 160270 | POLE/TRANS LINE CONSTRUCTN MATERIAL |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-212-6248
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
