Product Details | STUFFING TUBE PLUG
5975-00-296-3862 An item designed to be fitted into the body of a STUFFING TUBE in order to prevent the leakage of liquids and/or gases through the opening in the absence of the cable normally passing through the tube.
Part Alternates: M19622140002, M19622-14-0002, MILS1962214, MIL-S-19622-14, MILS19622F, MIL-S-19622F, 5975-00-296-3862, 00-296-3862, 5975002963862, 002963862
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-296-3862 | 03882 ( PLUG, STUFFING TUBE ) |

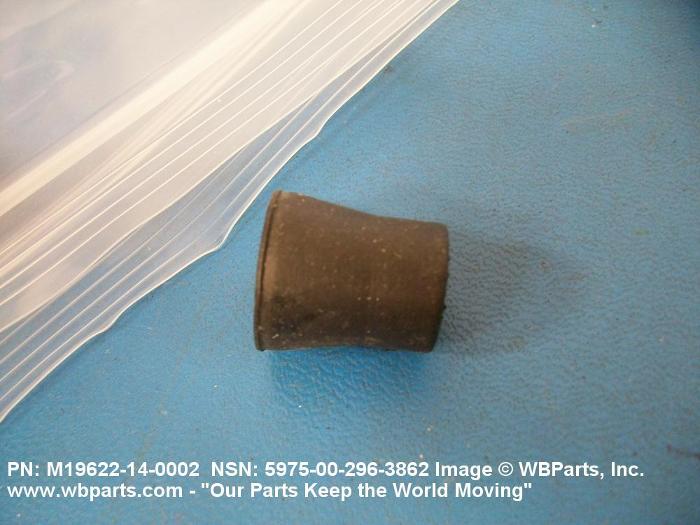

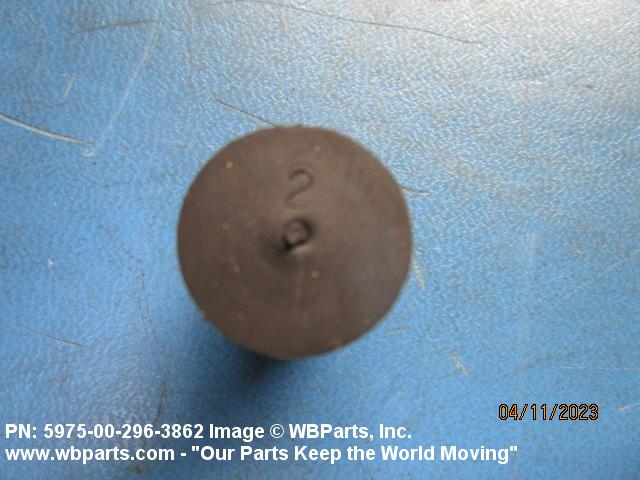

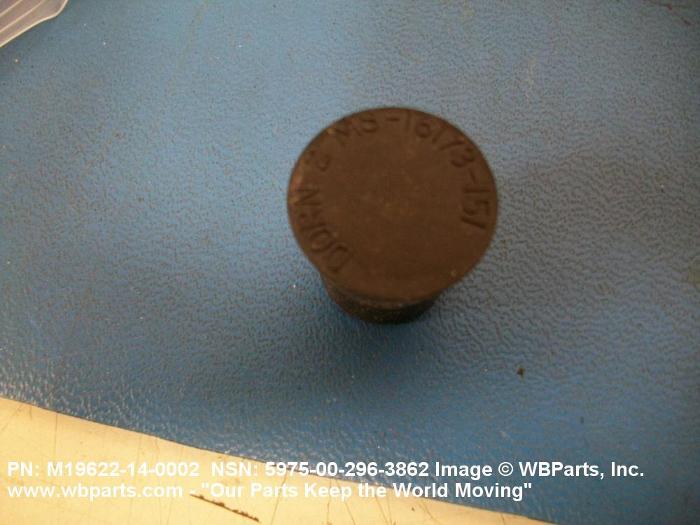

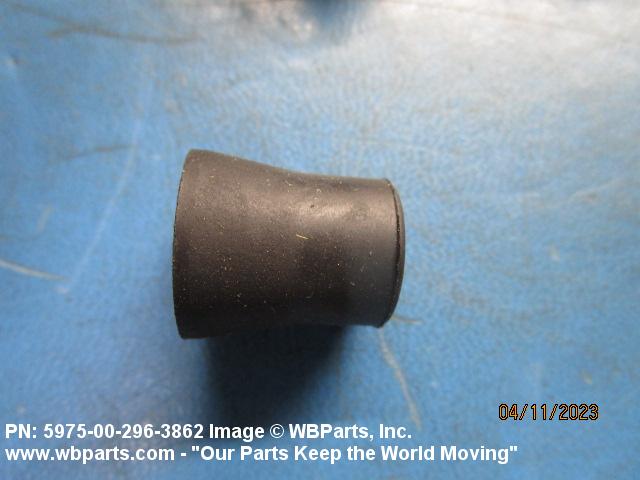

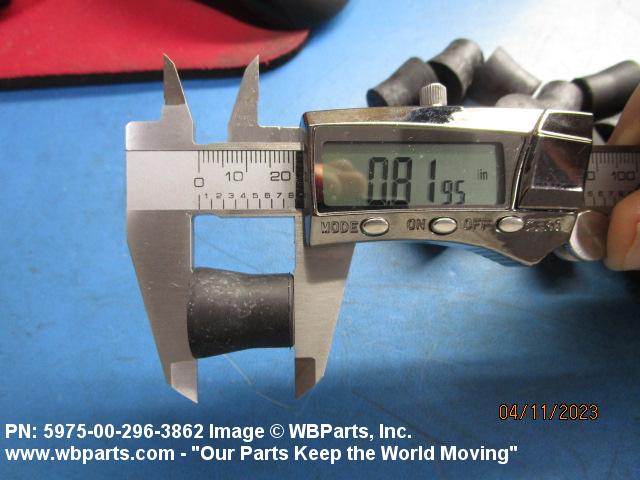

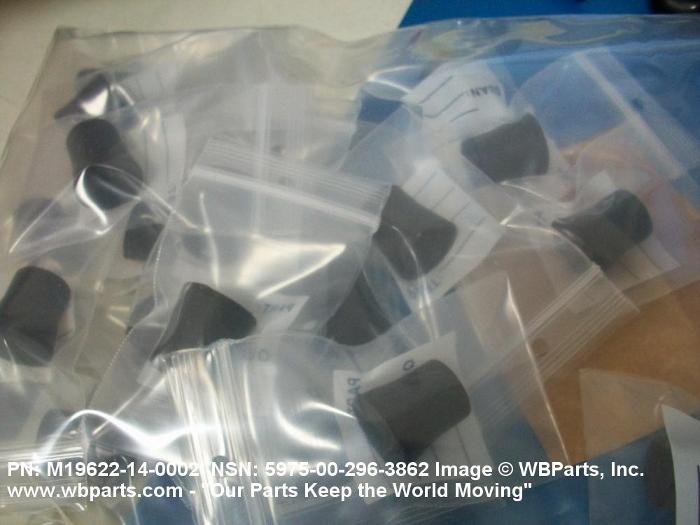

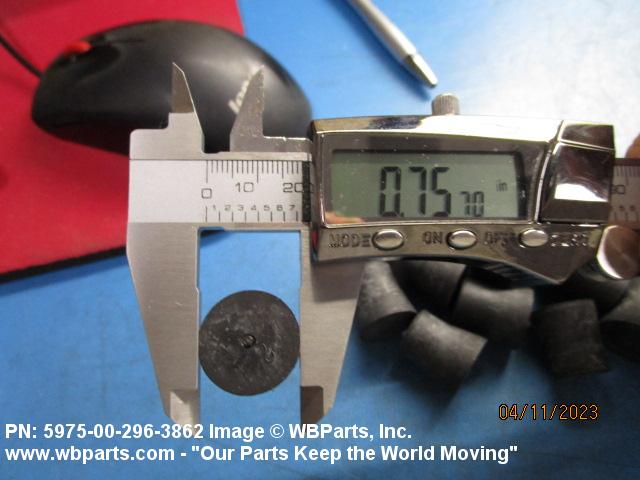

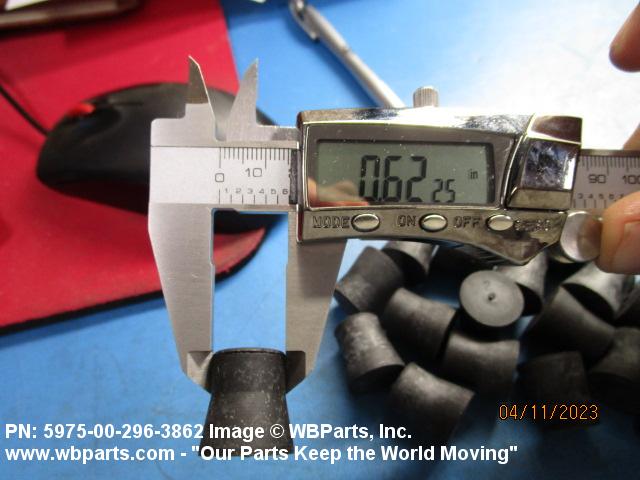

Drawings & Photos | NSN 5975-00-296-3862
Demand History | NSN 5975-00-296-3862
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5975-00-296-3862 | 2024-03-19 | 2 | United States |
| M19622140002 | 2023-03-28 | 1 | United States |
| M19622140002 | 2023-03-17 | 1 | United States |
| 5975-00-296-3862 | 2021-11-12 | 2 | us |
| MILS1962214 | 2019-03-13 | 6 | CA |
| 5975-00-296-3862 | 2017-06-13 | 8 | US |
| 5975-00-296-3862 | 2016-10-11 | 38 | US |
| 5975-00-296-3862 | 2016-04-21 | 700 | United States |
| 5975-00-296-3862 | 2016-04-19 | 2 | United States |
| M19622140002 | 2015-08-18 | 378 | US |
| 5975-00-296-3862 | 2013-11-20 | 330 | DIBBS |
| 5975-00-296-3862 | 2013-09-25 | 2958 | DIBBS |
| 5975-00-296-3862 | 2013-09-05 | 1 | DIBBS-RFPs |
| 5975-00-296-3862 | 2012-12-14 | 75 | United States |
| 5975-00-296-3862 | 2012-08-30 | 1 | US |
| 5975-00-296-3862 | 2012-05-23 | 1844 | DIBBS |
| 5975-00-296-3862 | 2011-04-17 | 20 | Canada |
| M19622140002 | 2008-07-18 | 16 | US |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5975-00-296-3862
Related Products | NSN 5975-00-296-3862
5975-00-296-3863, 5975-00-296-4036, 5975-00-296-4041, 5975-00-296-4092, 5975-00-296-4093
Technical Data | NSN 5975-00-296-3862
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER CHLOROPRENE CLASS CR OVERALL |
| SIZE | 0.563 INCHES NOMINAL |
| STYLE DESIGNATOR | 32 TAPERED SKIRT |
| OVERALL LENGTH | 0.813 INCHES NOMINAL |
| BODY LENGTH | 0.343 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.627 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 0.771 INCHES NOMINAL |
| DISK THICKNESS | 0.063 INCHES NOMINAL |
| TAPER ANGLE | 10.0 DEGREES NOMINAL |
| SPECIAL MARKINGS | 2 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-19622F |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M19622-14-0002 |
Restrictions/Controls & Freight Information | NSN 5975-00-296-3862
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093750 | BUNGS/PLUGS NOI IN PKGS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-296-3862
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
