NSN 5975-00-935-3942 MS336716, MS3367-1-6, MILS23190
Product Details | ELECTRICAL COMPONENTS TIEDOWN STRAP
5975-00-935-3942 A preformed item of flexible or semiflexible material of various cross-sectional shapes. It may be tapered to a point at one or both ends, or provided with holes, slots, detents, or other locking devices. It is designed to surround wiring harnesses and other electrical/electronic components. It may be preprinted with legendary characters, symbol(s), letter(s), numeral(s), or color coded, and may be provided with means for securing to other objects. Excludes BAND, MARKER; CLAMP, ELECTRICAL; CLAMP, LOOP; MARKER, IDENTIFICATION; and STRAP, RETAINING.
Part Alternates: MS336716, MS3367-1-6, MILS23190, MIL-S-23190, 5975-00-935-3942, 00-935-3942, 5975009353942, 009353942
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 NOV 1967 | 00-935-3942 | 61736 ( STRAP, TIEDOWN, ELECTRICAL COMPONENTS ) |

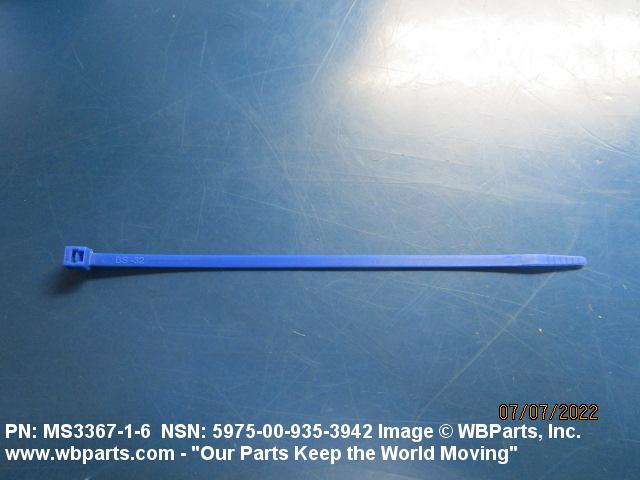

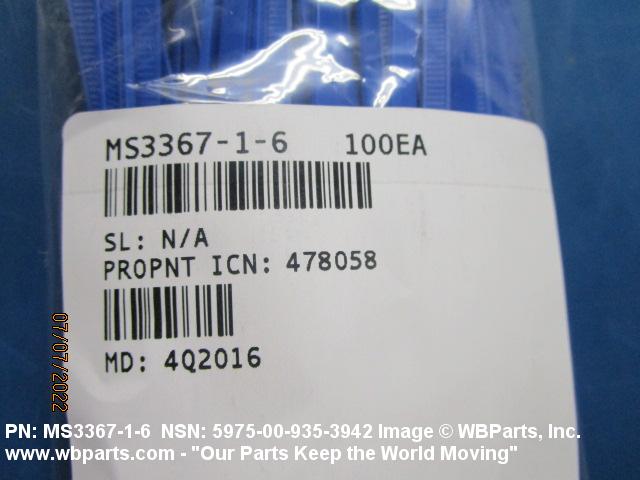

Drawings & Photos | NSN 5975-00-935-3942
Demand History | NSN 5975-00-935-3942
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5975-00-935-3942 | 2022-06-180 | 1 | Canada |
| MS336716 | 2020-07-189 | 1 | United States |
| 5975-00-935-3942 | 2016-06-159 | 264 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-935-3942
Technical Data | NSN 5975-00-935-3942
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC, MIL-M-20693, COMP A, TYPE 1 |

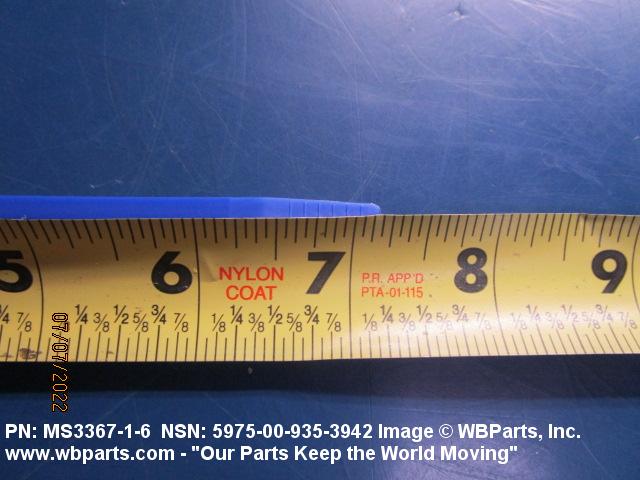

| LENGTH | 6.300 INCHES NOMINAL |

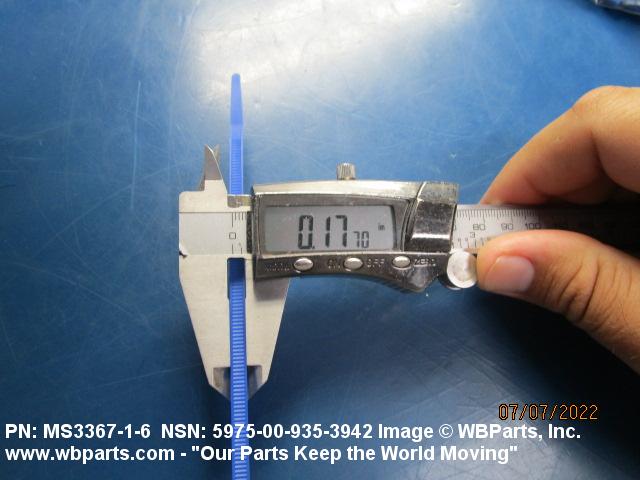

| WIDTH | 0.190 INCHES NOMINAL |

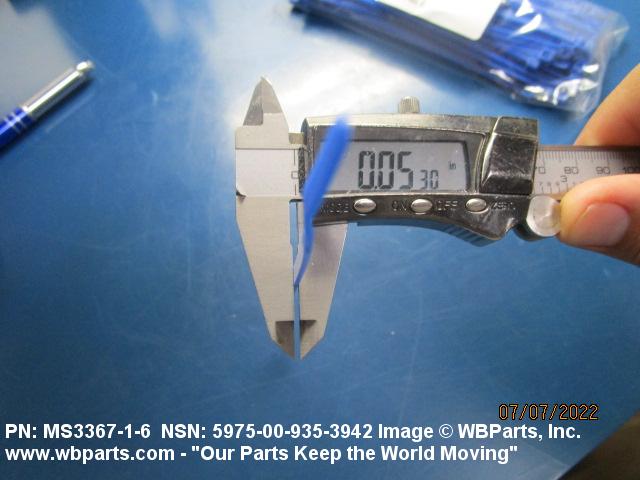

| THICKNESS | 0.055 INCHES NOMINAL |
| COLOR | BLUE |
| MINIMUM TENSILE STRENGTH | 50 POUNDS PER SQUARE INCH |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-23190 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS3367-1-6 |
Restrictions/Controls & Freight Information | NSN 5975-00-935-3942
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 157170 | PLASTIC/RUBR STRAPS/ROPE/CORD/STRIP |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-935-3942
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
