Product Details | ELECTRICAL COMPONENTS TIEDOWN STRAP
5975-00-984-6582 A preformed item of flexible or semiflexible material of various cross-sectional shapes. It may be tapered to a point at one or both ends, or provided with holes, slots, detents, or other locking devices. It is designed to surround wiring harnesses and other electrical/electronic components. It may be preprinted with legendary characters, symbol(s), letter(s), numeral(s), or color coded, and may be provided with means for securing to other objects. Excludes BAND, MARKER; CLAMP, ELECTRICAL; CLAMP, LOOP; MARKER, IDENTIFICATION; and STRAP, RETAINING.
Part Alternates: MS1782110, MS17821-1-0, MS1803412, MS18034-1-2, MS336710, MS3367-1-0, MS336711, MS3367-1-1, MS3367110, MS3367-1-10, MS336712, MS3367-1-2, MS336717, MS3367-1-7, M1150063310, M1150-063310 , AS23190, AS33671, SST2SC0, SST2S-C-0, SST2SMP0, SST2S-MP0, TY25M0, VG95387100, VG95387-100, WWS 7790 3401 , WWS77903401, PC239681, PC-23968-1, R17356P26, L7500, L-7-50-0 , L7500M, L-7-50-0-M , MILS23190, MIL-S-23190, 5975PL0840281 , 6009084002, 600-9084-002, 6196498001, 6196498-001, 757592987910 , 832224997053, 94527710, 945277-10, 10134324 , 10503296, 155, 1-55, 16004 , 2183004-62, 23500479, 2-350047-9, 3120012, 4184400-31, 43993503301, 43993503-301, 485A399H01, 5000116664, 5193HX , 58592681, 5859268-1, 5975000862, TF5X, 5975-00-984-6582, 00-984-6582, 5975009846582, 418440031, 218300462, 009846582
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 OCT 1966 | 00-984-6582 | 61736 ( STRAP, TIEDOWN, ELECTRICAL COMPONENTS ) |

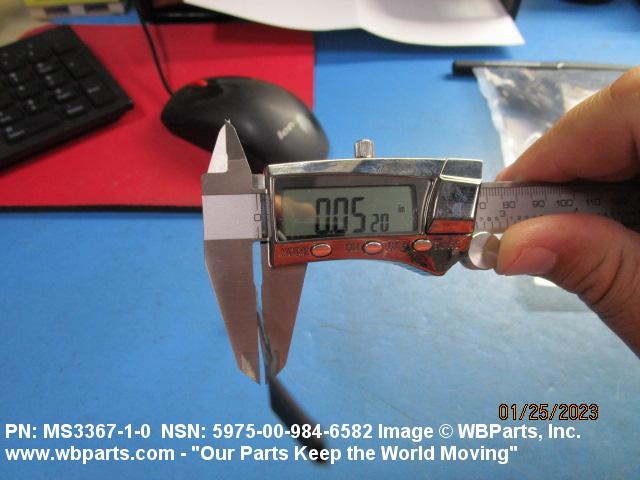

Drawings & Photos | NSN 5975-00-984-6582
Demand History | NSN 5975-00-984-6582
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5975-00-984-6582 | 2024-06-13 | 40000 | DIBBS |
| MS336710 | 2024-05-22 | 282 | US |
| 5975-00-984-6582 | 2024-02-23 | 2 | US |
| 5975-00-984-6582 | 2023-12-07 | 30000 | DIBBS |
| 5975-00-984-6582 | 2023-08-10 | 9991 | DIBBS |
| 5975-00-984-6582 | 2023-04-02 | 14943 | DIBBS |
| 5975-00-984-6582 | 2023-01-26 | 14943 | DIBBS |
| 5975-00-984-6582 | 2023-01-10 | 20 | United States |
| 5975-00-984-6582 | 2022-12-19 | 20 | United States |
| 5975-00-984-6582 | 2022-12-19 | 20 | United States |
| 5975-00-984-6582 | 2022-10-20 | 5 | JP |
| 5975-00-984-6582 | 2022-08-02 | 14943 | DIBBS |
| 5975-00-984-6582 | 2022-07-22 | 20 | United States |
| 5975-00-984-6582 | 2022-05-19 | 900 | DIBBS |
| 5975-00-984-6582 | 2022-05-11 | 14943 | DIBBS |
| 5975-00-984-6582 | 2021-07-19 | 15123 | DIBBS |
| 5975-00-984-6582 | 2021-07-07 | 15123 | DIBBS |
| 5975-00-984-6582 | 2021-06-29 | 1 | United States |
| 5975-00-984-6582 | 2021-06-29 | 10000 | US |
| 5975-00-984-6582 | 2021-03-24 | 1 | DIBBS-RFPs |
| 5975-00-984-6582 | 2021-03-11 | 1000 | UK |
| 5975-00-984-6582 | 2021-02-04 | 2 | QA |
| MS3367-1-0 | 2020-10-27 | 300 | US |
| 5975-00-984-6582 | 2020-07-23 | 800 | AE |
| 5975-00-984-6582 | 2020-07-23 | 800 | AE |
| 5975-00-984-6582 | 2020-07-16 | 1 | DIBBS-RFPs |
| AS23190 | 2020-06-29 | 1 | United States |
| MS3367-1-0 | 2020-05-15 | 1000 | Poland |
| MS336710 | 2019-03-21 | 25 | United States |
| 5975-00-984-6582 | 2019-03-05 | 1 | MANUAL |
| MS3367-1-0 | 2019-03-05 | 1 | United States |
| 5975-00-984-6582 | 2019-01-23 | 10 | India |
| 5975-00-984-6582 | 2018-12-06 | 4 | DIBBS-KIT |
| MS3367-1-0 | 2018-12-06 | 4 | |
| 5975-00-984-6582 | 2018-10-30 | 1 | PK |
| 5975-00-984-6582 | 2018-10-29 | 497 | MANUAL |
| MS3367-1-0 | 2018-10-29 | 497 | |
| 5975-00-984-6582 | 2018-07-30 | 6 | United States |
| 5975-00-984-6582 | 2018-05-01 | 500 | MANUAL |
| MS3367-1-0 | 2018-05-01 | 500 | United States |
| 5975-00-984-6582 | 2018-04-09 | 200 | us |
| 5975-00-984-6582 | 2018-03-15 | 15 | AU |
| 5975-00-984-6582 | 2017-04-27 | 1500 | AE |
| 5975-00-984-6582 | 2016-07-25 | 1 | IT |
| 5975-00-984-6582 | 2015-08-02 | 500000 | DIBBS |
| 5975-00-984-6582 | 2015-07-09 | 50 | TR |
| 5975-00-984-6582 | 2015-07-08 | 50 | MANUAL |
| AS23190 | 2015-07-01 | 10 | UK |
| 5975-00-984-6582 | 2015-05-20 | 50 | US |
| 5975-00-984-6582 | 2015-03-09 | 23738 | DIBBS |
| 5975-00-984-6582 | 2014-12-09 | 6954 | DIBBS |
| 5975-00-984-6582 | 2014-11-12 | 16206 | DIBBS |
| 5975-00-984-6582 | 2014-11-05 | 4653 | DIBBS |
| MS336710 | 2014-09-19 | 1 | US |
| 5975-00-984-6582 | 2014-09-11 | 9087 | DIBBS |
| 5975-00-984-6582 | 2014-07-01 | 15462 | DIBBS |
| 5975-00-984-6582 | 2014-06-02 | 5611 | DIBBS |
| 5975-00-984-6582 | 2014-04-01 | 28737 | DIBBS |
| TF5X | 2014-03-10 | 150 | US |
| 5975-00-984-6582 | 2014-01-23 | 7243 | DIBBS |
| 5975-00-984-6582 | 2013-09-04 | 50000 | United States |
| 5975-00-984-6582 | 2013-07-09 | 10 | MANUAL |
| MS3367-1-0 | 2013-07-09 | 10 | United States |
| 5975-00-984-6582 | 2013-04-01 | 36240 | DIBBS |
| 5975-00-984-6582 | 2013-03-24 | 36240 | DIBBS |
| 5975-00-984-6582 | 2012-10-18 | 15489 | DIBBS |
| 5975-00-984-6582 | 2012-07-31 | 5000 | Germany |
| MS3367-1-0 | 2012-07-05 | 500 | KR |
| MS336710 | 2012-04-19 | 38 | United States |
| MS3367-1-0 | 2012-03-22 | 100 | US |
| 5975-00-984-6582 | 2012-02-12 | 50 | CO |
| 5975-00-984-6582 | 2011-11-14 | 42000 | US |
| MS336710 | 2011-09-30 | 100 | United Arab Emirates |
| MS336710 | 2011-09-30 | 100 | United Arab Emirates |
| 5975-00-984-6582 | 2011-09-30 | 100 | PH |
| 5975-00-984-6582 | 2011-08-24 | 4 | United States |
| MS336710 | 2010-10-05 | 16 | Saudi Arabia |
| MS336710 | 2010-10-05 | 16 | Saudi Arabia |
| MS336710 | 2010-09-30 | 50 | US |
| 5975-00-984-6582 | 2010-05-25 | 6790 | DIBBS |
| MS336710 | 2009-08-18 | 4725 | United States |
| 5975-00-984-6582 | 2009-05-07 | 20000 | US |
| 5975-00-984-6582 | 2009-04-30 | 100 | United States |
| 5975-00-984-6582 | 2009-03-24 | 10 | Singapore |
| 5975-00-984-6582 | 2009-03-12 | 1 | US |
| 5975-00-984-6582 | 2008-05-16 | 500 | US |
| MS1782110 | 2008-05-01 | 100 | United States |
Cross Reference | NSN 5975-00-984-6582
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1-55 | 06383 | PANDUIT CORP. DBA PANDUIT |
| 10503296 | 56161 | GENERAL DYNAMICS LAND SYSTEMS - CANADA CORPORATION |
| 16004 | 70541 | AMERICAN SPONGE AND CHAMOIS CO |
| 2-350047-9 | 00779 | TYCO ELECTRONICS CORPORATION |
| 2183004-62 | 49671 | LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS |
| 3120012 | D8905 | HAPPICH GMBH |
| 4184400-31 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 43993503-301 | D9444 | HONEYWELL REGELSYSTEME GMBHGESCHAEFTSBEREICH SONDERTECHNIK |
| 485A399H01 | 11660 | WESTINGHOUSE ELECTRIC CORP CONTROL BUSINESS UNIT |
| 5000116664 | F6573 | RENAULT TRUCKS DEFENSE |
| 5859268-1 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 5975000862 | 0125B | GENERAL DYNAMICS EUROPEAN LANDSYSTEMS - SANTA BARBARA SISTEMAS |
| 5975009846582 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 5975PL0840281 | 9009H | INSPEKTORAT WSPARCIA SIL ZBROJNYCH |
| 600-9084-002 | 46555 | APPLIED BIOSYSTEMS, LLC |
| 6196498-001 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 757592987910 | 0000V | NCB HUNGARY HONVEDSEGI EGYSEGES TERMEKKOD |
| 945277-10 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| AS23190 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS33671 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| L-7-50-0 | 0WG77 | THOMAS AND BETTS |
| L-7-50-0-M | 0WG77 | THOMAS AND BETTS |
| M1150-063310 | SZ003 | FORSVARETS MATERIELVERK DEFENCEMATERIEL ADMINISTRATION |
| MIL-S-23190 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS17821-1-0 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS18034-1-2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3367-1-0 | 03RL1 | ADVANCED CABLE TIES INC DBA ACT FASTENING SOLUTIONS |
| MS3367-1-0 | 0EFK4 | INTERNATIONAL TELEVISION CORP DBA I T C ELECTRONICS |
| MS3367-1-0 | 3BV84 | ELECTRICAL & ELECTRONICS CONTROLS INC |
| MS3367-1-0 | 7Z016 | KAMPI COMPONENTS CO., INC. |
| MS3367-1-0 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS3367-1-0 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3367-1-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3367-1-10 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3367-1-2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3367-1-7 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| PC-23968-1 | U2248 | SELEX ES LTD |
| R17356P26 | 16331 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| SST2S-C-0 | 06383 | PANDUIT CORP. DBA PANDUIT |
| SST2S-MP0 | 06383 | PANDUIT CORP. DBA PANDUIT |
| TF5X | 07693 | FCI CANADA INC |
| TY25M0 | 22421 | THOMAS AND BETTS LTD |
| TY25M0 | 56501 | THOMAS & BETTS CORPORATION |
| VG95387-100 | D9477 | BUNDESAMT FUER AUSRUESTUNG, |
| WWS 7790 3401 | 64678 | DAIMLER TRUCKS NORTH AMERICA LLC |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5975-00-984-6582
Related Products | NSN 5975-00-984-6582
5975-00-985-0832, 5975-00-985-1464, 5975-00-985-1467, 5975-00-985-1477, 5975-00-985-1494
Technical Data | NSN 5975-00-984-6582
| Characteristic | Specifications |
|---|---|
| MATERIAL | POLYAMIDE NYLON, MIL-M-20693, COMP A, TYPE 2 |
| LENGTH | 6.000 INCHES MINIMUM |
| WIDTH | 0.190 INCHES MAXIMUM |
| THICKNESS | 0.055 INCHES MAXIMUM |
| COLOR | BLACK |
| END TYPE | PLAIN W/ATTACHMENT |
| END ATTACHMENT/FASTENING FACILITY | KEEPER |
| KEEPER QUANTITY | 1 |
| FASTENED KEEPER FEATURE | NOT INCLUDED |
| MINIMUM TENSILE STRENGTH | 50 POUNDS PER SQUARE INCH |
| HOLE QUANTITY | 1 |
| INSIGNIA | NOT INCLUDED |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS3367-1-0 |
Restrictions/Controls & Freight Information | NSN 5975-00-984-6582
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 157170 | PLASTIC/RUBR STRAPS/ROPE/CORD/STRIP |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-984-6582
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 HD : Each |
