NSN 5975-01-006-1856 01-006-1856, 010061856
Product Details | ELECTRICAL WALL PLATE
5975-01-006-1856 An item designed to mount directly on a bracket or an electrical current carrying wiring device(s) such as switch(es) or outlet(s) (receptacle). The bracket(s) or electrical current carrying device is mounted in a JUNCTION BOX. For trade designated items designed to be attached directly on or through a bracket or electrical wiring device to a CONDUIT OUTLET, see COVER, CONDUIT OUTLET. For items designed for mounting directly on a JUNCTION BOX, see COVER, JUNCTION BOX.
Part Alternates: 5975-01-006-1856, 01-006-1856, 5975010061856, 010061856
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-006-1856 | 07716 ( PLATE, WALL, ELECTRICAL ) |
Drawings & Photos | NSN 5975-01-006-1856
Cross Reference | NSN 5975-01-006-1856
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 223F | 77881 | HUBBELL-RACO INC |
| 225 | 77881 | HUBBELL-RACO INC |
| 5211 | 74545 | HUBBELL INC WIRING DEVICE DIV |
| 7550815 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
| HBL5206WO | 74545 | HUBBELL INC WIRING DEVICE DIV |
| RP-5 | 64533 | MAJOR LITING INC |
| SM-C-801057-2 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-01-006-1856
Technical Data | NSN 5975-01-006-1856
| Characteristic | Specifications |
|---|---|
| UNIT TYPE | OUTLET |
| MATERIAL | BRASS |
| MATERIAL THICKNESS | 0.040 INCHES NOMINAL |
| SURFACE TREATMENT | ENAMEL,BAKED ALUMIMUM |
| COLOR | GRAY |
| GANG QUANTITY | 1 |
| OPENING QUANTITY | 2 |

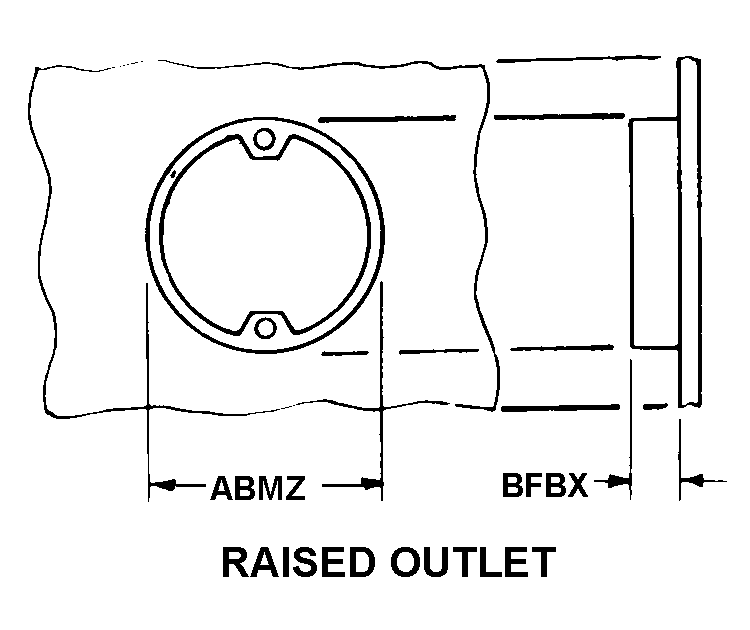

| OPENING STYLE DESIGNATOR | 11 RAISED OUTLET |
| DIAMETER | ANY ACCEPTABLE |
| RAISE HEIGHT | ANY ACCEPTABLE |
| INSULATING ADAPTER | NOT INCLUDED |
| COVER | PROVIDED |
| LENGTH | 4.500 INCHES |
| WIDTH | 2.750 INCHES |
| MOUNTING HOLE QUANTITY | 1 |
| SPECIAL FEATURES | W/GASKET AND MTG SCREWS |
Restrictions/Controls & Freight Information | NSN 5975-01-006-1856
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
