NSN 5975-01-074-9162 WWC563, WW-C-563, WW-C-563 TY3
Product Details | ELECTRICAL CONDUIT BEND
5975-01-074-9162 An item fabricated in the form of a curved section specifically designed to mechanically join a conduit or conduit fitting to another conduit or conduit fitting. Items of this type do not have a boss or hub at either end, nor do they have facilities for mounting wiring devices or pulling electrical conductors. See also ELBOW, ELECTRICAL CONDUIT and CONDUIT OUTLET.
Part Alternates: WWC563, WW-C-563, WW-C-563 TY3, WWC563TY3, 5975-01-074-9162, 01-074-9162, 5975010749162, 010749162
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 10 APR 1979 | 01-074-9162 | 06998 ( BEND, ELECTRICAL CONDUIT ) |

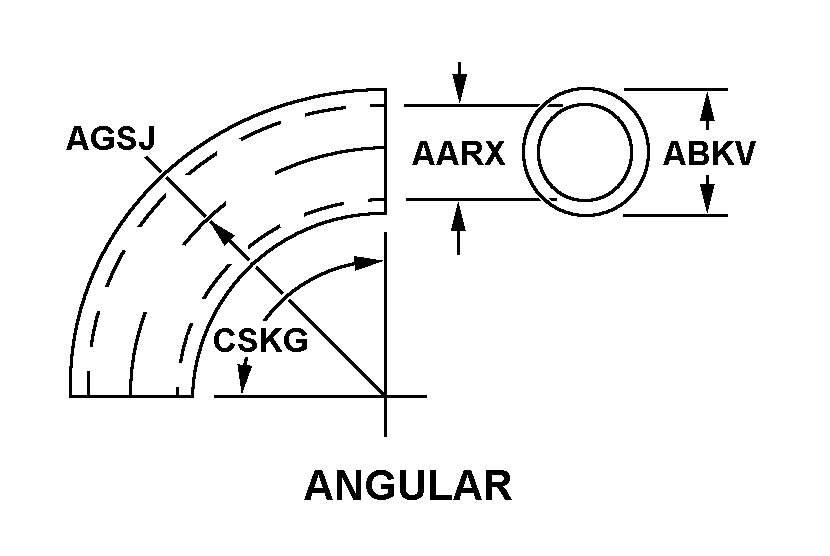

Drawings & Photos | NSN 5975-01-074-9162
Demand History | NSN 5975-01-074-9162
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| WWC563 | 2008-01-11 | 70 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-01-074-9162
Technical Data | NSN 5975-01-074-9162
| Characteristic | Specifications |
|---|---|
| TRADE SIZE | 3.000 |
| STRUCTURAL DESIGN | THINWALL |
| STYLE DESIGNATOR | A1 ANGULAR |
| INSIDE DIAMETER | 3.356 INCHES NOMINAL |
| OUTSIDE DIAMETER | 3.500 INCHES NOMINAL |
| BEND RADIUS | 13.000 INCHES NOMINAL |
| BEND ANGLE | 90.0 DEGREES NOMINAL |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | ZINC OVERALL |
| SPECIAL MARKINGS | EMT |
| NONDEFINITIVE SPEC/STD DATA | 3 TYPE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | WW-C-563 |
Restrictions/Controls & Freight Information | NSN 5975-01-074-9162
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
