NSN 5975-01-130-7306 8001401, 80014-01, 885C864
Product Details | DUST AND MOISTURE SEAL BOOT
5975-01-130-7306 A flexible, nonmetallic item designed to prevent entry of dust, moisture and other contaminants into critical areas around shafts, levers, electrical wires and hoses. Sealing may be either static or dynamic. The item may include mounting hardware (support plates, clamps and the like). Excludes BELLOWS, PROTECTION; GROMMET, NONMETALLIC; and CABLE NIPPLE, ELECTRICAL. See also CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and SHIELD, ELECTRICAL CONNECTOR.20253400020Hardware, Commercial59300008Switches
Part Alternates: 8001401, 80014-01, 885C864, 885C864P3, 5975-01-130-7306, 01-130-7306, 5975011307306, 011307306
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 APR 1982 | 01-130-7306 | 19302 ( BOOT, DUST AND MOISTURE SEAL ) |
Drawings & Photos | NSN 5975-01-130-7306
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-01-130-7306
Technical Data | NSN 5975-01-130-7306
| Characteristic | Specifications |
|---|---|

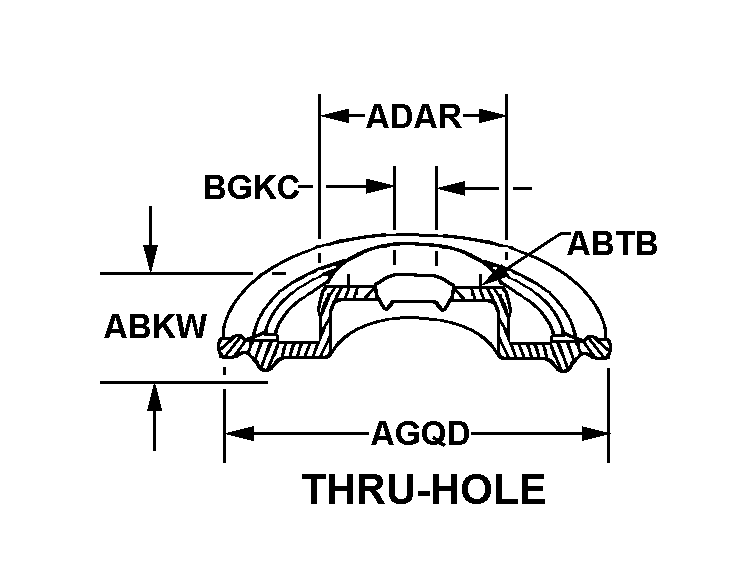

| STYLE DESIGNATOR | A36 THRU-HOLE |
| OVERALL HEIGHT | 0.330 INCHES MINIMUM AND 0.370 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 0.760 INCHES NOMINAL |
| BASE OUTSIDE DIAMETER | 2.980 INCHES MINIMUM AND 3.020 INCHES MAXIMUM |
| OPENING INSIDE DIAMETER | 0.500 INCHES NOMINAL |
| MATERIAL | RUBBER BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM-D2000,2BA520C12Z NATIONAL SPEC SINGLE MATERIAL RESPONSE BODY |
| III SUPPLEMENTARY FEATURES | NHABOOT RETAINER |
| III FSC APPLICATION DATA | F111 PAVE TACK |
| MANUFACTURERS CODE | 24664 |
| DESIGN CONTROL REFERENCE | 80014-01 |
Restrictions/Controls & Freight Information | NSN 5975-01-130-7306
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
