NSN 5975-01-151-7033 77166341, 7716634-1, 01-151-7033
Product Details | ELECTRICAL CONDUIT COUPLING NUT
5975-01-151-7033 An item of metallic composition with internal threads and an internal seat designed to join a ferrule capped conduit to a fitting. See also BONDNUT, ELECTRICAL CONDUIT.
Part Alternates: 77166341, 7716634-1, 5975-01-151-7033, 01-151-7033, 5975011517033, 011517033
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 APR 1983 | 01-151-7033 | 12814 ( NUT, COUPLING, ELECTRICAL CONDUIT ) |
Drawings & Photos | NSN 5975-01-151-7033
Demand History | NSN 5975-01-151-7033
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 77166341 | 2020-12-336 | 1 | US |
| 77166341 | 2020-05-134 | 250 | United States |
| 5975-01-151-7033 | 2016-06-173 | 250 | DIBBS |
| 5975-01-151-7033 | 2012-04-94 | 50 | DIBBS |
| 5975-01-151-7033 | 2012-03-74 | 3 | DIBBS |
| 7716634-1 | 2011-08-229 | 36 | US |
Cross Reference | NSN 5975-01-151-7033
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7716634-1 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5975-01-151-7033
Related Products | NSN 5975-01-151-7033
Technical Data | NSN 5975-01-151-7033
| Characteristic | Specifications |
|---|---|

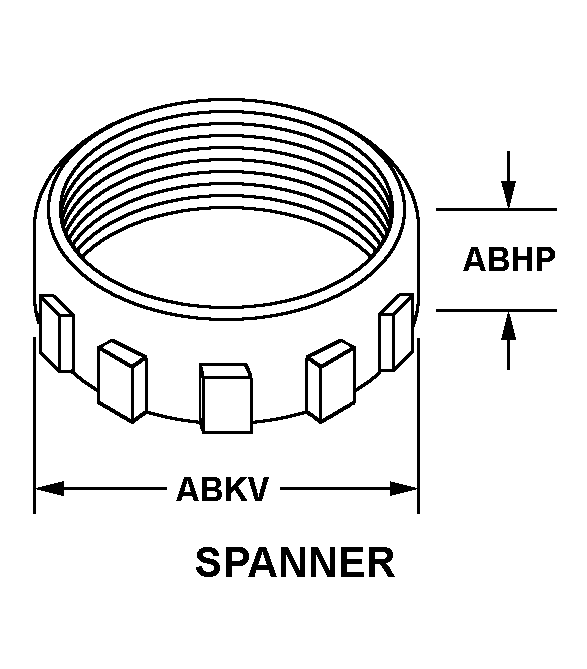

| STYLE DESIGNATOR | A59 SPANNER |
| OVERALL LENGTH | 0.656 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.102 INCHES MINIMUM AND 2.112 INCHES MAXIMUM SINGLE END |
| MATERIAL | ALUMINUM ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-501 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CADMIUM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE II,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE |
| THREAD SERIES DESIGNATOR | NS SINGLE END |
| NOMINAL THREAD SIZE | 1.750 INCHES SINGLE END |
| THREAD CLASS | 2B SINGLE END |
| THREAD LENGTH | ANY ACCEPTABLE SINGLE END |
| CONDUIT TYPE ACCOMMODATED | RIGID METALLIC THINWALL SINGLE END |
Restrictions/Controls & Freight Information | NSN 5975-01-151-7033
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-01-151-7033
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
