NSN 5975-01-198-5908 CTJ3A06, CTJ-3A-06, 01-198-5908
Product Details | ELECTRONIC JUNCTION RACK
5975-01-198-5908 An open frame structure specifically designed to accommodate (but does not include) electronic terminal junctions (TERMINAL BOARD; TERMINAL (1), FEEDTHRU; and the like). The item may consist of separable or nonseparable channels, mounting blocks and fastening devices. Mounting blocks are designed so the assembly can be mounted on panels or bulkheads. Tightening the fastening devices which secure the channels to the mounting blocks will also secure terminal junctions within the frame assembly. Excludes RACK, ELECTRICAL EQUIPMENT; TERMINAL BOARD; JUNCTION BOX; and HARDWARE KIT, ELECTRONIC EQUIPMENT.
Part Alternates: CTJ3A06, CTJ-3A-06, 5975-01-198-5908, 01-198-5908, 5975011985908, 011985908
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 10 JAN 1985 | 01-198-5908 | 32039 ( RACK, ELECTRONIC JUNCTION ) |

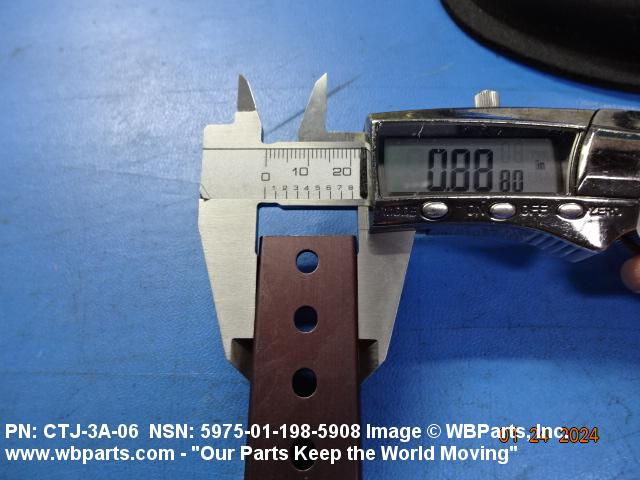

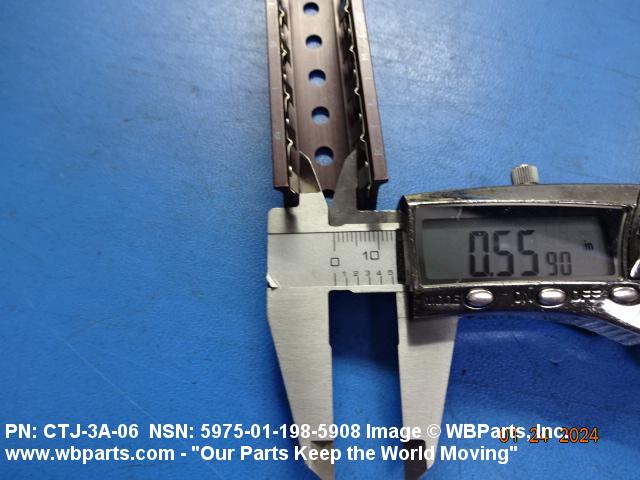

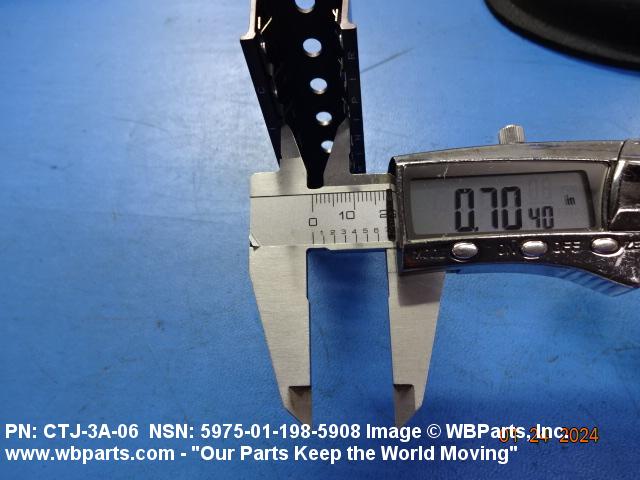

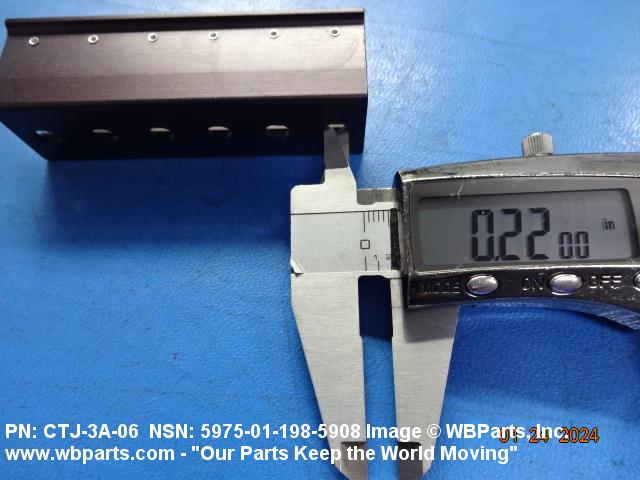

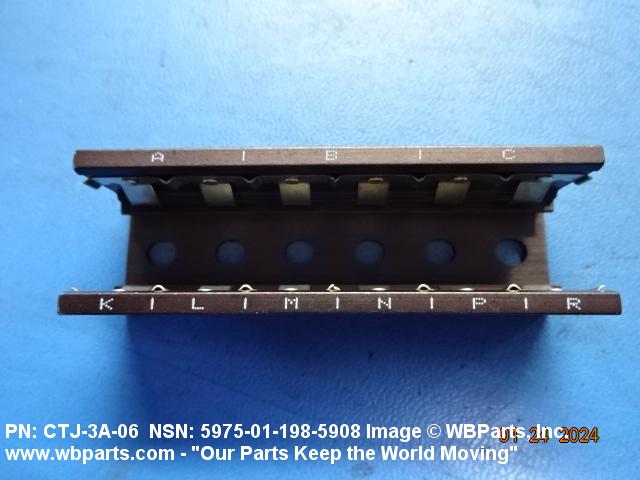

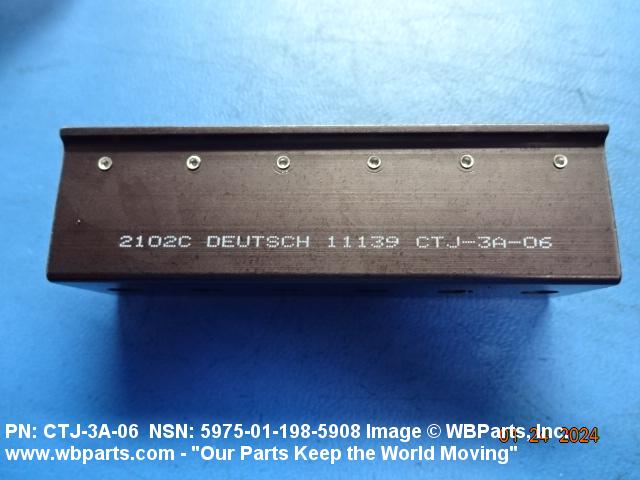

Drawings & Photos | NSN 5975-01-198-5908
Demand History | NSN 5975-01-198-5908
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5975-01-198-5908 | 2025-01-08 | 112 | United States |
| CTJ3A06 | 2024-01-10 | 2 | United States |
| 5975-01-198-5908 | 2018-02-37 | 290 | DIBBS |
| 5975-01-198-5908 | 2016-08-215 | 49 | DIBBS |
| 5975-01-198-5908 | 2016-03-81 | 45 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-01-198-5908
Technical Data | NSN 5975-01-198-5908
| Characteristic | Specifications |
|---|---|

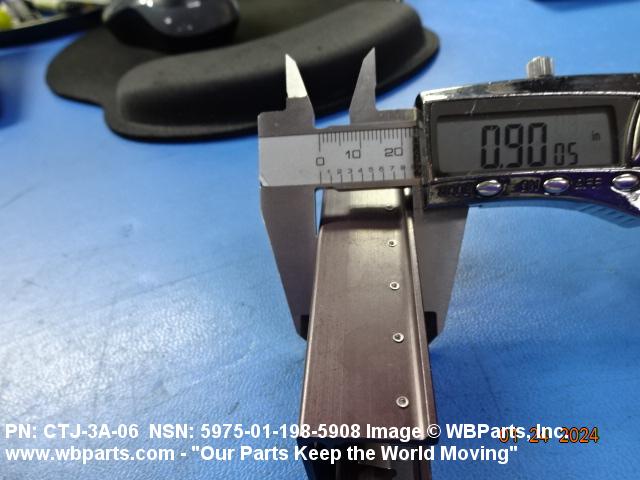

| OVERALL HEIGHT | 0.900 INCHES MAXIMUM |

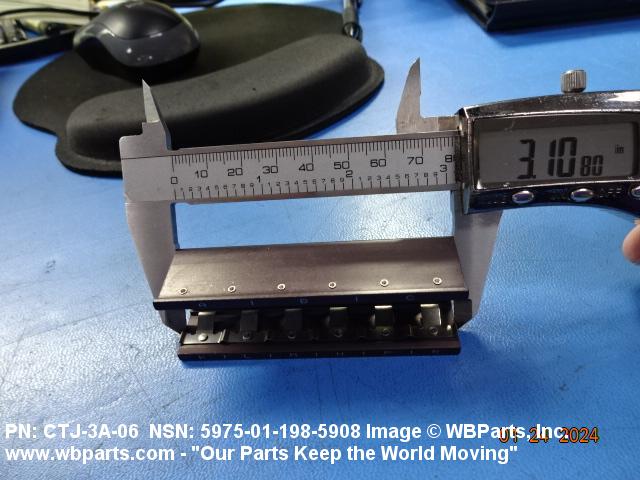

| OVERALL WIDTH | 3.108 INCHES NOMINAL |
| PANEL SPACE HEIGHT | 0.165 INCHES MINIMUM |
| MATERIAL | ALUMINUM ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-200/8 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE |
| COLOR | BLACK |
| MOUNTING PROVISION | UNTHREADED HOLE |
| PANEL MOUNTING RAIL DESIGN STYLE | K3 CHANNEL |
| PANEL MOUNTING RAIL HOLE TYPE | UNTHREADED ALL MOUNTING RAIL HOLES |
| PANEL MOUNTING RAIL HOLE NOMINAL DIAMETER | 0.190 INCHES ALL MOUNTING RAIL HOLES |
Restrictions/Controls & Freight Information | NSN 5975-01-198-5908
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 050965 | CONDUITS MECHANICAL CONTROL CABLE |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-01-198-5908
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
