NSN 5975-01-257-3092 1002350041, 100235-0041, 1025071041
Product Details | ELECTRICAL CONDUIT ADAPTER
5975-01-257-3092 An item designed to couple or join two different types or sizes of conduits, and/or to be inserted in the opening of a conduit outlet or box to accommodate a conduit of a larger or smaller size; or it may be designed with internal thread on one end for mating with an electrical connector and an external thread on the other end for mating with a conduit coupling nut; or to establish necessary mechanical accommodations between an electrical conduit, conduit assembly and an electrical connector. Excludes REDUCING WASHER, KNOCKOUT and BOX CONNECTOR, ELECTRICAL. See also ADAPTER, CABLE TO CONNECTOR; and CHASE NIPPLE, CONDUIT.
Part Alternates: 1002350041, 100235-0041, 1025071041, 10250710-41, 5975-01-257-3092, 01-257-3092, 5975012573092, 012573092
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 JUN 1987 | 01-257-3092 | 06935 ( ADAPTER, ELECTRICAL CONDUIT ) |

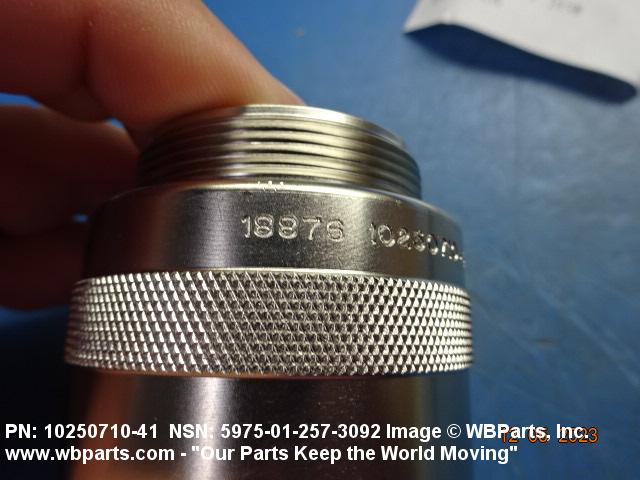

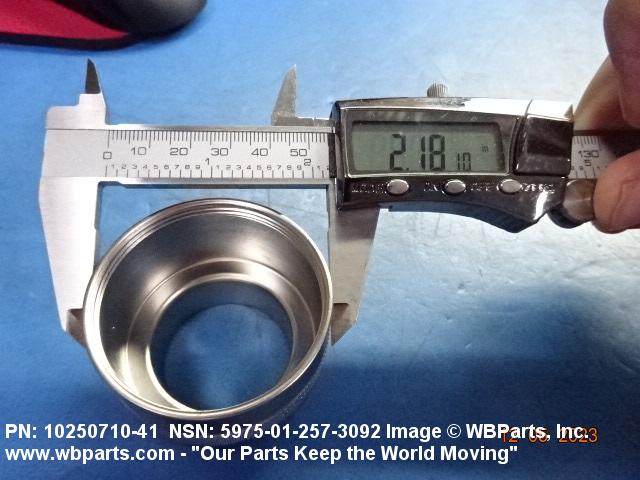

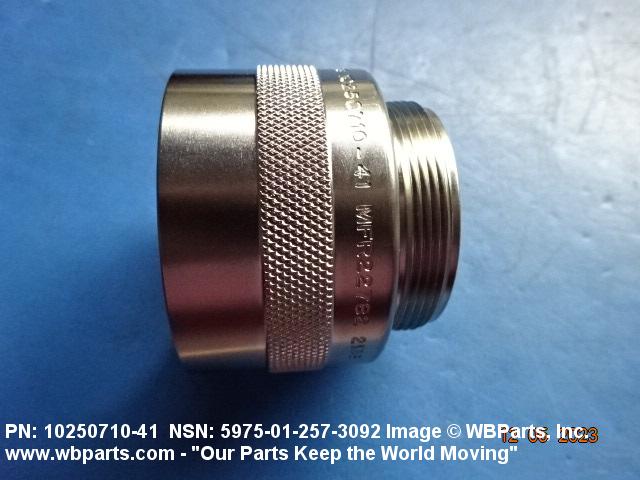

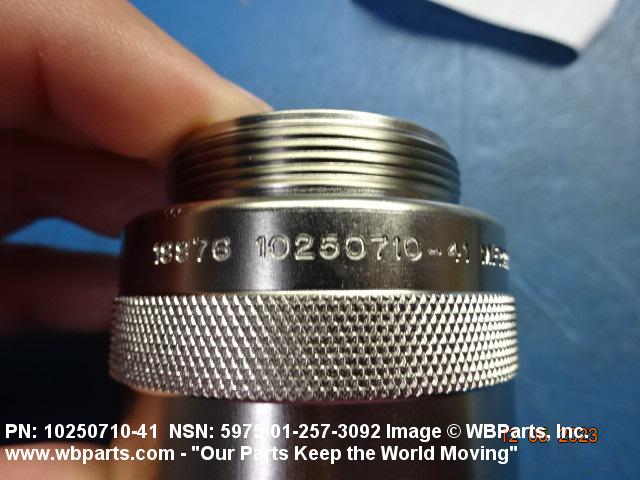

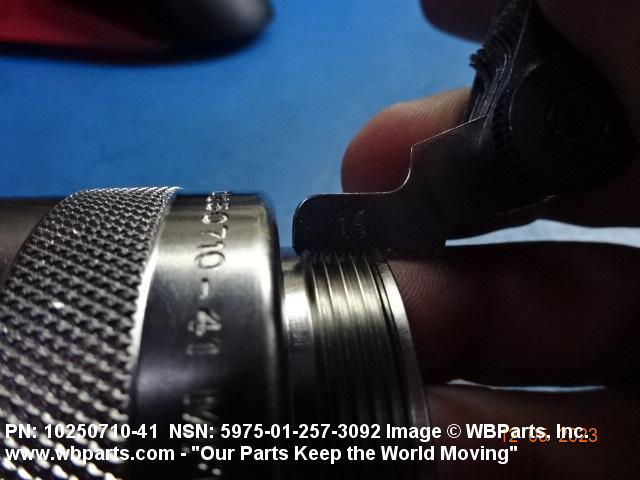

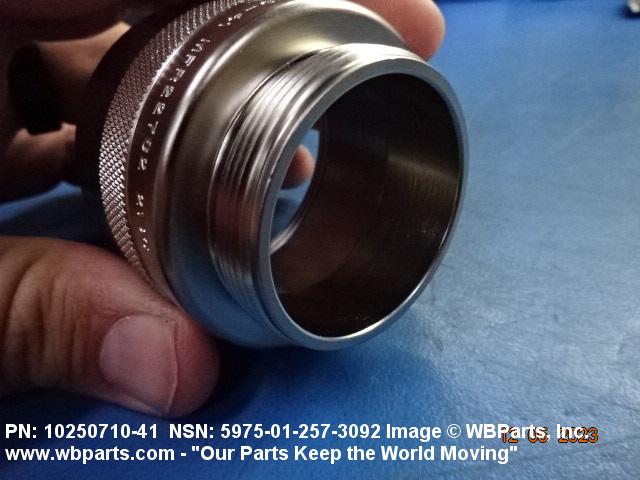

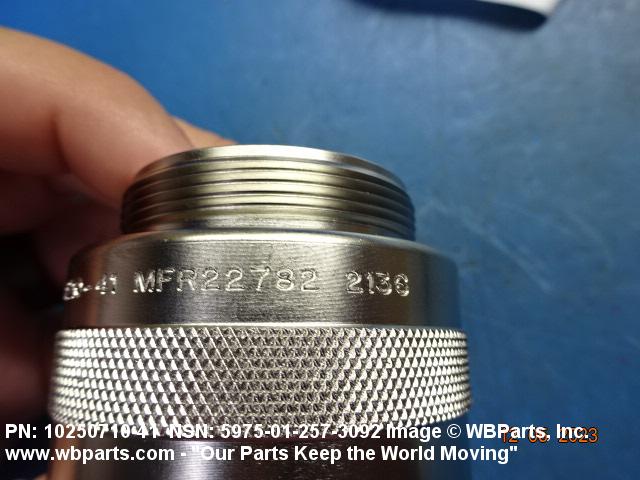

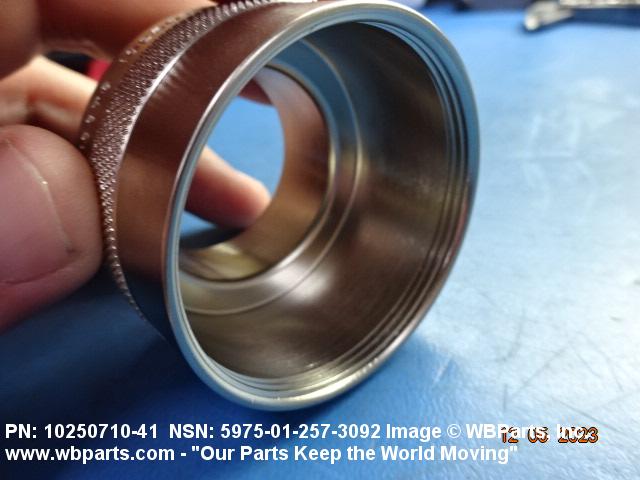

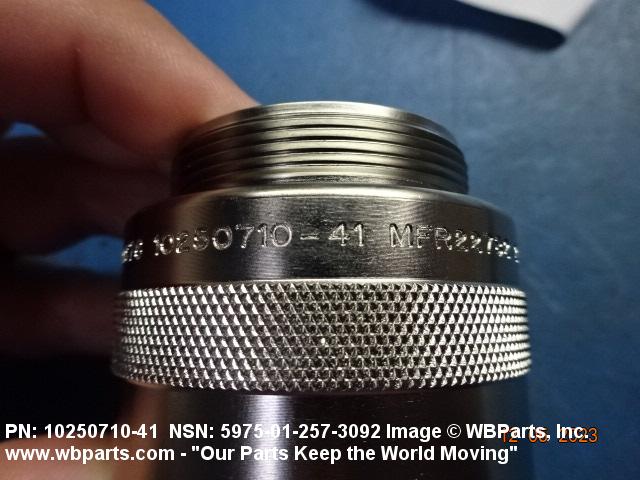

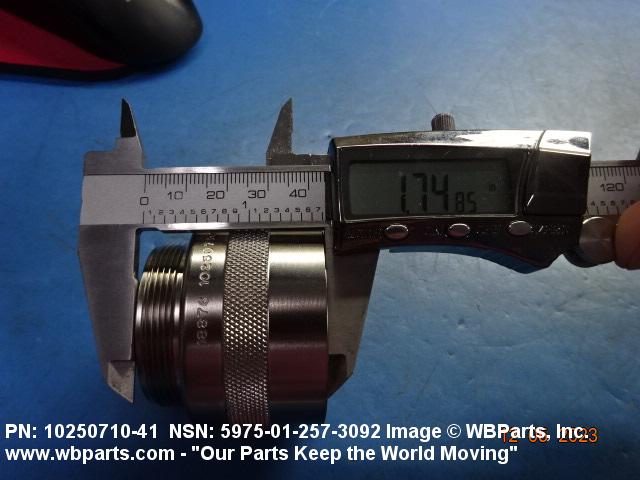

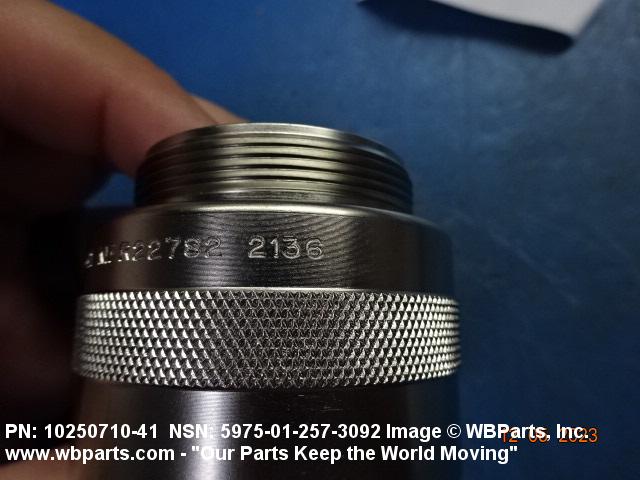

Drawings & Photos | NSN 5975-01-257-3092
Demand History | NSN 5975-01-257-3092
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5975-01-257-3092 | 2023-09-250 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-01-257-3092
Technical Data | NSN 5975-01-257-3092
| Characteristic | Specifications |
|---|---|
| MATERIAL | BRASS |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4610,1/2 HARD ASSN STD 1ST MATERIAL RESPONSE OR ASTM B16,1/2 HARD ASSN STD 2ND MATERIAL RESPONSE |
| SURFACE TREATMENT | NICKEL AND CADMIUM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-26074,CL 1,GR B MIL SPEC 1ST TREATMENT RESPONSE AND QQ-P-416,CL II,TY 2 FED SPEC 2ND TREATMENT RESPONSE |
| THREAD SERIES DESIGNATOR | UNS FIRST END UNS SECOND END |
| NOMINAL THREAD SIZE | 2.0625 INCHES FIRST END 1.750 INCHES SECOND END |
| THREAD QUANTITY | 16 PER INCH FIRST END 18 PER INCH SECOND END |
| THREAD CLASS | 2B FIRST END 2A SECOND END |
| SPECIAL FEATURES | LEFT HAND THREAD FIRST END |
| III SUPPLEMENTARY FEATURES | END ITEM PATRIOT MISSILE |
Restrictions/Controls & Freight Information | NSN 5975-01-257-3092
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062010 | FITTINGS CONDUIT NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CH | Defense Supply Center Richmond Richmond, VA 23297 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-01-257-3092
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
