NSN 5975-01-378-5788 C00343602, C003436-02, 630B006NF163H
Product Details | STUFFING TUBE
5975-01-378-5788 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Part Alternates: C00343602, C003436-02, 630B006NF163H, 5975-01-378-5788, 01-378-5788, 5975013785788, 013785788
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 AUG 1993 | 01-378-5788 | 00882 ( STUFFING TUBE ) |

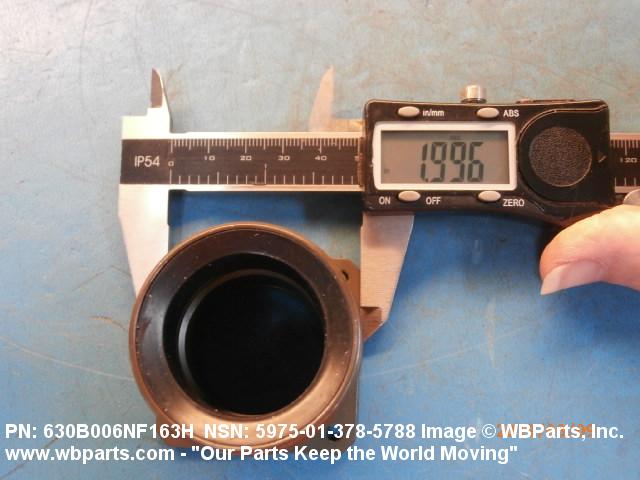

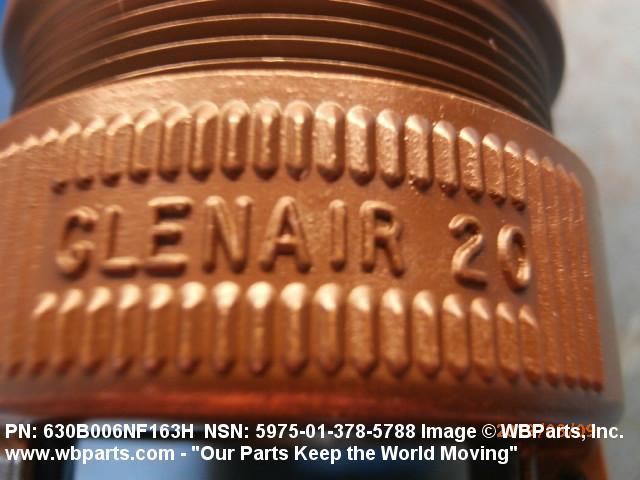

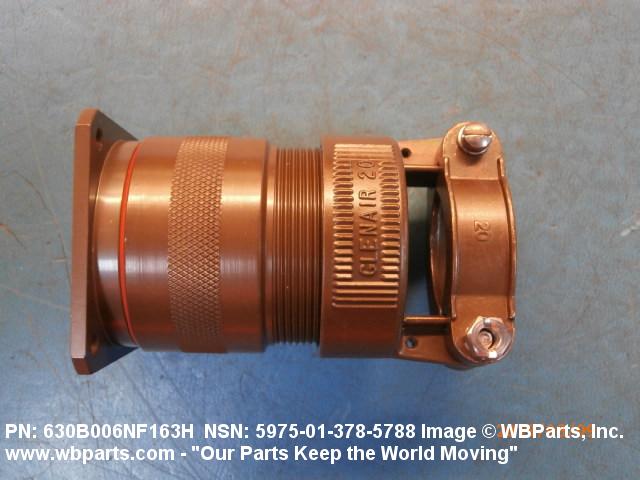

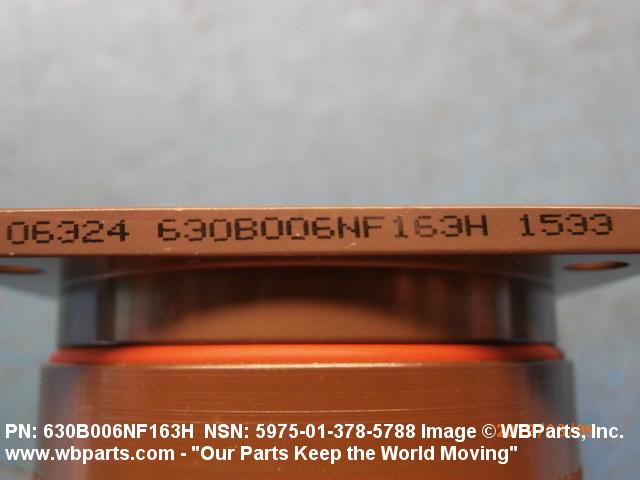

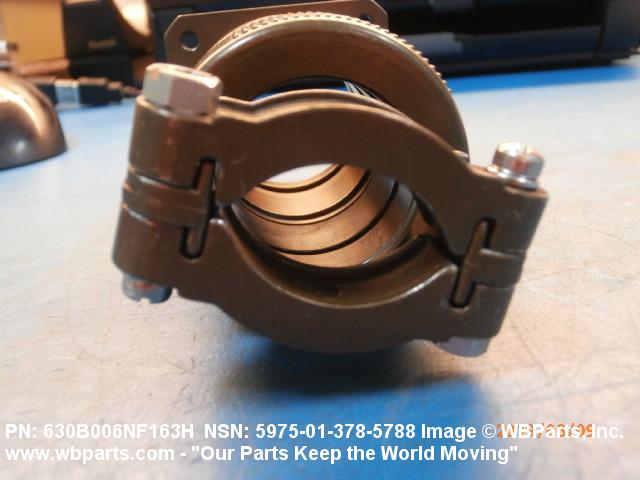

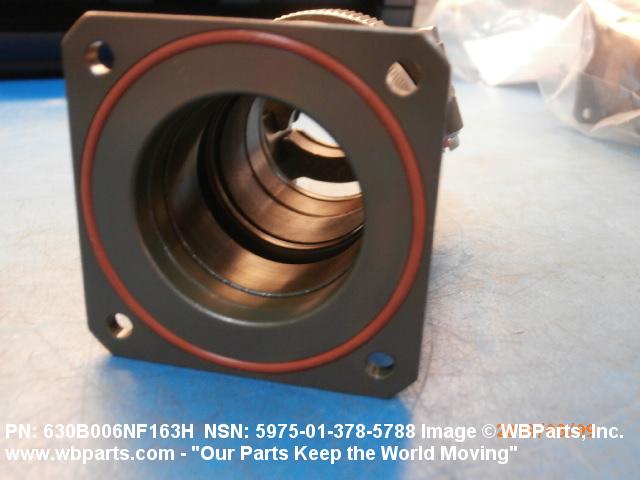

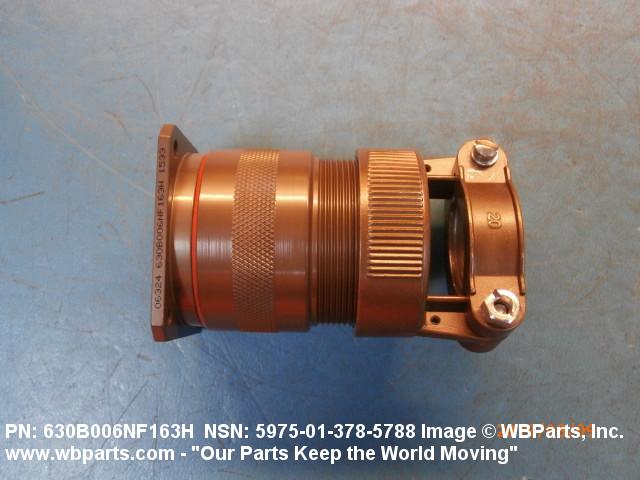

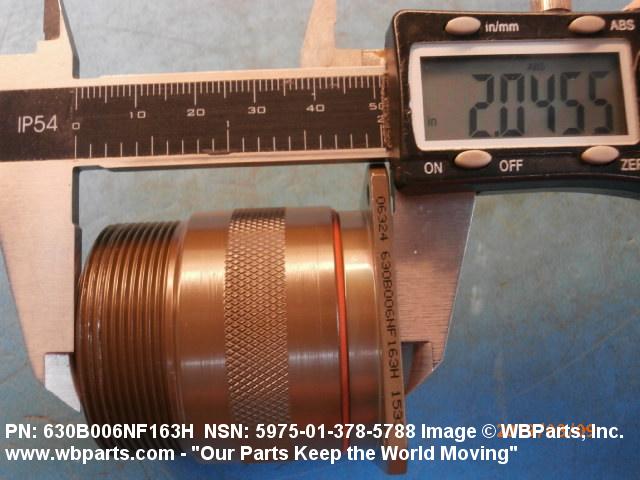

Drawings & Photos | NSN 5975-01-378-5788
Demand History | NSN 5975-01-378-5788
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 630B006NF163H | 2019-07-211 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-01-378-5788
Technical Data | NSN 5975-01-378-5788
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |

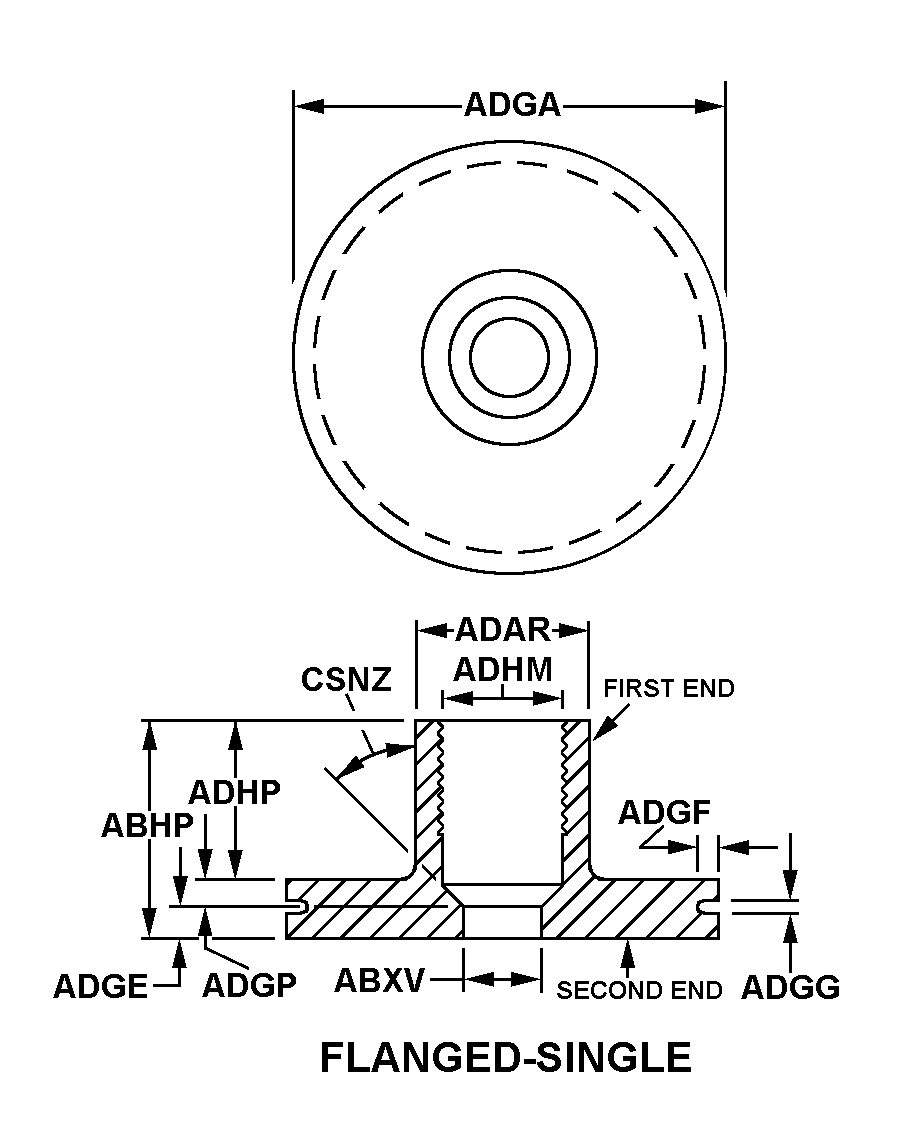

| STYLE DESIGNATOR | 54 FLANGED-SINGLE |
| OVERALL LENGTH | 1.820 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 2.113 INCHES NOMINAL |
| FIRST PACKING CHAMBER LENGTH | 1.092 INCHES NOMINAL |
| PACKING CHAMBER QUANTITY | 1 |
| MOUNTING METHOD | FLANGE |
Restrictions/Controls & Freight Information | NSN 5975-01-378-5788
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CH | Defense Supply Center Richmond Richmond, VA 23297 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-01-378-5788
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
