NSN 5975-01-432-4119 11B254100, 53370, 5337-0
Product Details | CONDUIT OUTLET
5975-01-432-4119 An item designed to be used in a conduit system for the purpose of providing outlets or attachments for electrical wiring devices and/or designed to provide access and facilitate installment of wires. It may or may not include a cover(s). It does not include wiring devices. Excludes ENTRANCE ELBOW, ELECTRICAL. See also JUNCTION BOX.
Part Alternates: 11B254100, 53370, 5337-0, 5975-01-432-4119, 01-432-4119, 5975014324119, 014324119
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 JUN 1996 | 01-432-4119 | 06945 ( CONDUIT OUTLET ) |
Drawings & Photos | NSN 5975-01-432-4119
Demand History | NSN 5975-01-432-4119
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5975-01-432-4119 | 2018-05-140 | 325 | DIBBS |
| 5975-01-432-4119 | 2018-03-81 | 158 | DIBBS |
| 5975-01-432-4119 | 2016-12-350 | 577 | DIBBS |
| 5975-01-432-4119 | 2012-01-13 | 5563 | DIBBS |
| 5975-01-432-4119 | 2011-12-356 | 5563 | DIBBS |
| 5975-01-432-4119 | 2011-12-355 | 5563 | DIBBS |
| 5975-01-432-4119 | 2011-12-340 | 5563 | DIBBS |
| 5975-01-432-4119 | 2011-11-334 | 4028 | DIBBS |
| 5975-01-432-4119 | 2011-11-322 | 4028 | DIBBS |
| 5975-01-432-4119 | 2011-11-320 | 4028 | DIBBS |
| 5975-01-432-4119 | 2011-11-319 | 4028 | DIBBS |
| 5975-01-432-4119 | 2011-11-318 | 4028 | DIBBS |
| 5975-01-432-4119 | 2011-10-302 | 4028 | DIBBS |
| 5975-01-432-4119 | 2011-10-299 | 4028 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5975-01-432-4119
Related Products | NSN 5975-01-432-4119
Technical Data | NSN 5975-01-432-4119
| Characteristic | Specifications |
|---|---|

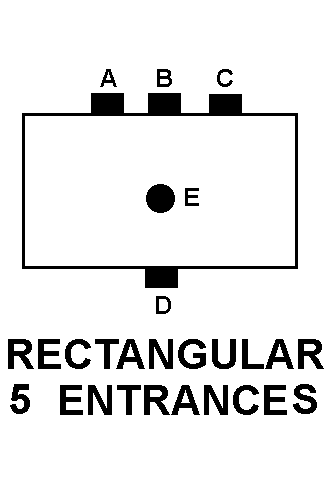

| STYLE DESIGNATOR | B42 RECTANGULAR 5 ENTRANCES |
| WIDTH | 4.500 INCHES NOMINAL |
| LENGTH | 4.562 INCHES NOMINAL |
| DEPTH | 2.000 INCHES NOMINAL |
| CONDUIT ENTRANCE TYPE | HUB DRILLED A ENTRANCE |
| CONDUIT TYPE ACCOMMODATED | FLEXIBLE METALLIC ALL ENTRANCE |
| CONDUIT TRADE SIZE ACCOMMODATED | 0.500 INCHES ALL ENTRANCE |
| TRADE DESIGNATION | UL |
| MATERIAL | ALUMINUM, DIE CAST OVERALL |
| COVER MOUNTING METHOD | INTERNAL THREADED |
| WIRING DEVICE GANG QUANTITY | 2 |
| MULTIGANG OUTLET PARTITIONING METHOD | TANDEM |
| COVER MOUNTING SURFACE TYPE | FLAT |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WEATHERPROOF |
| FURNISHED ITEMS | PLUG |
Restrictions/Controls & Freight Information | NSN 5975-01-432-4119
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063160 | SWITCH BOXES/ELEC ENCLOSURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CH | Defense Supply Center Richmond Richmond, VA 23297 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-01-432-4119
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
