NSN 5975-01-541-9157 TMS-SCE-1K-3/4-2.0.9., TMS-SCE-1K-3/4-2.0-9 , TMSSCE1K34209
Product Details | CABLE MARKER SLEEVE
5975-01-541-9157 A cylindrical item into which a wire or cable is inserted. It is inscribed for identification, to indicate connections or routing of electrical cables and the like. For unmarked items made of insulation material, see INSULATION SLEEVING, ELECTRICAL. For items secured by crimping, slot and tongue, or other similar methods of fastening, see BAND, MARKER.
Part Alternates: TMS-SCE-1K-3/4-2.0.9., TMS-SCE-1K-3/4-2.0-9 , TMSSCE1K34209, TMS-SCE-F1K-3/4-9, TMSSCEF1K349, 5975-01-541-9157, 01-541-9157, 5975015419157, 015419157
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 JUL 2006 | 01-541-9157 | 16785 ( SLEEVE, MARKER, CABLE ) |
Drawings & Photos | NSN 5975-01-541-9157
Demand History | NSN 5975-01-541-9157
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| TMS-SCE-1K-3/4-2.0-9 | 2012-02-39 | 1390 | IL |
| 5975-01-541-9157 | 2011-02-55 | 184 | DIBBS |
| 5975-01-541-9157 | 2010-10-277 | 108 | DIBBS |
| 5975-01-541-9157 | 2010-08-225 | 137 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-01-541-9157
Technical Data | NSN 5975-01-541-9157
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYOLEFIN |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE-AMS-DTL-2305/5 CLASSES 1 AND 3 ASSN STD ALL MATERIAL RESPONSES |
| COLOR | WHITE |
| INSCRIPTION | PART NUMBERS AS REQUIRED 1ST SIDE |

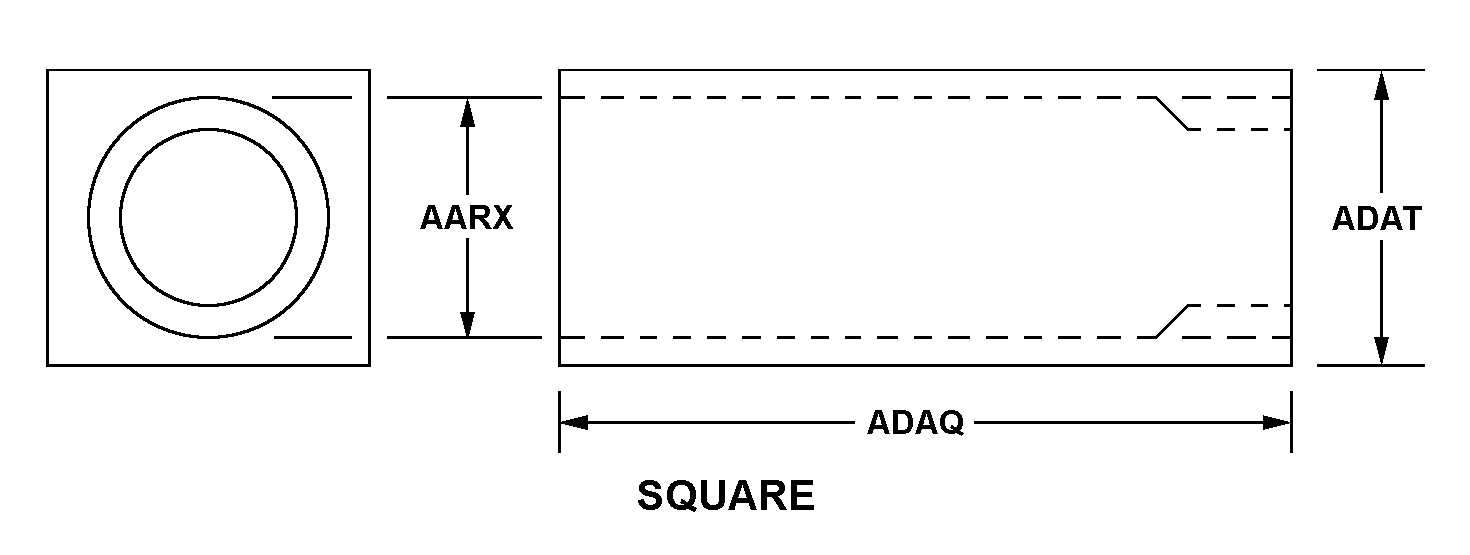

| STYLE DESIGNATOR | A5 SQUARE |
| INSIDE DIAMETER | 0.250 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| BODY LENGTH | 2.000 INCHES NOMINAL |
| BODY WIDTH | 0.774 INCHES NOMINAL |
| SPECIAL FEATURES | MARKER SLEEVE DESIGNED TO BE PRINTED BY COMPUTER DRIVEN DOT-MATRIX PRINTER. 1,000 FANFOLDED SLEEVES. |
Restrictions/Controls & Freight Information | NSN 5975-01-541-9157
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 020550 | BAGS/BOOTS/POUCHES/SLEEVES/TUBES |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | HX | Navy ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-01-541-9157
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Z EA : Each |
