NSN 5977-00-143-6727 1098, 8150002001, 815-0002-001
Product Details | ELECTRICAL CONTACT BRUSH HOLDER
5977-00-143-6727 A holder designed to accommodate and position a brush against a commutator or collector ring. Also includes items consisting of two or more brush holders (boxes) cast as an inseparable unit. May include facilities for applying pressure to the brush(es) and may also be furnished with the brush(es). See also HOLDER ASSEMBLY, ELECTRICAL CONTACT BRUSH.
Part Alternates: 1098, 8150002001, 815-0002-001, 5977-00-143-6727, 00-143-6727, 5977001436727, 001436727
Electrical and Electronic Equipment Components | Electrical Contact Brushes and Electrodes
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 OCT 1968 | 00-143-6727 | 02937 ( HOLDER, ELECTRICAL CONTACT BRUSH ) |

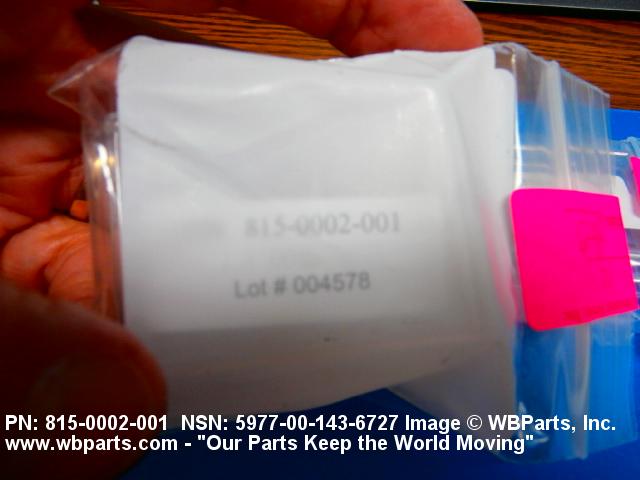

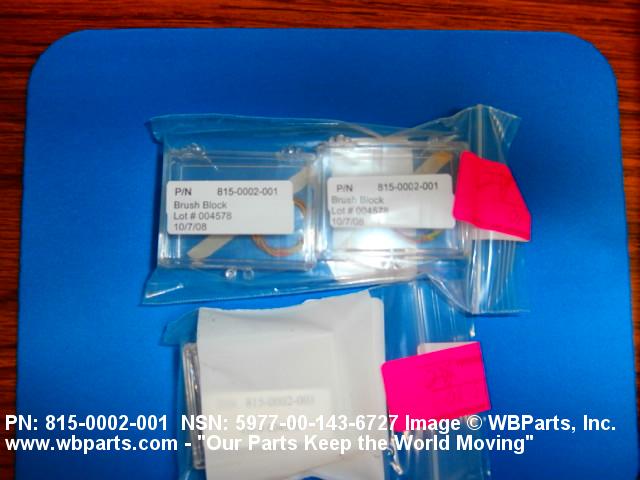

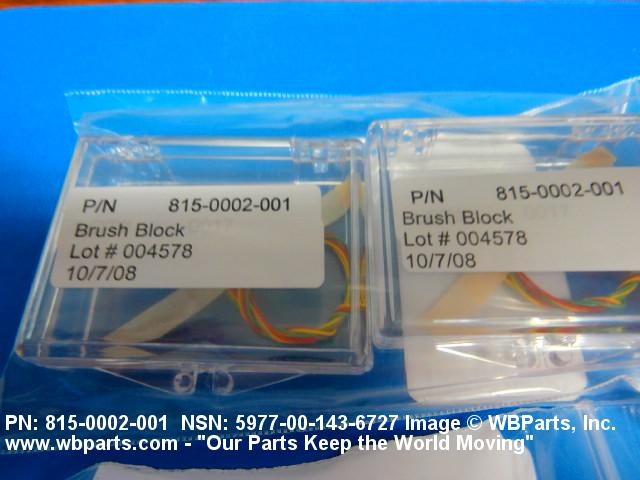

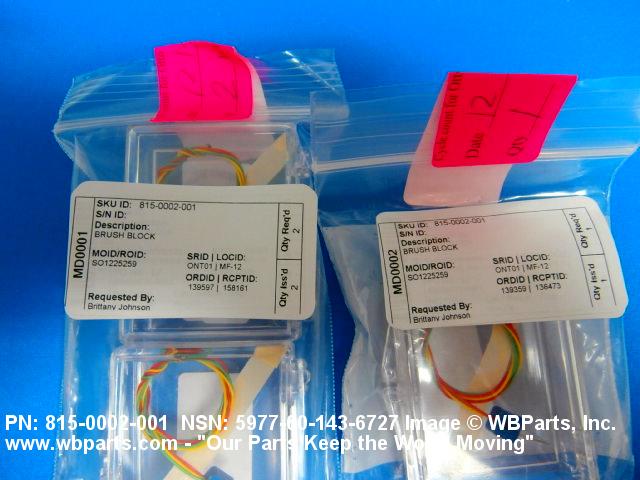

Drawings & Photos | NSN 5977-00-143-6727
Demand History | NSN 5977-00-143-6727
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 815-0002-001 | 2021-02-46 | 15 | DIBBS |
| 5977-00-143-6727 | 2017-03-85 | 4 | DIBBS |
| 5977-00-143-6727 | 2014-04-113 | 1 | DIBBS |
| 5977-00-143-6727 | 2012-09-264 | 1 | DIBBS |
| 5977-00-143-6727 | 2012-09-249 | 1 | DIBBS |
| 815-0002-001 | 2012-07-207 | 32 | |
| 815-0002-001 | 2012-04-102 | 30 | |
| 8150002001 | 2012-04-101 | 3 | Indonesia |
| 8150002001 | 2012-01-04 | 1 | Indonesia |
| 815-0002-001 | 2011-06-159 | 2 | |
| 5977-00-143-6727 | 2010-09-256 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5977-00-143-6727
Technical Data | NSN 5977-00-143-6727
| Characteristic | Specifications |
|---|---|
| OVERALL WIDTH | 0.250 INCHES NOMINAL |
| OVERALL THICKNESS | 0.156 INCHES NOMINAL |
| CONTACT END BEVEL | NOT INCLUDED |
| TERMINAL TYPE | WIRE LEAD |
| TERMINAL QUANTITY | 3 |
| CAP | NOT INCLUDED |
| MOUNTING FACILITY | UNTHREADED HOLES |
| MOUNTING FACILITY QUANTITY | 1 |
| BRUSH QUANTITY ACCOMMODATED PER HOLDER | 3 |
| FURNISHED ITEMS AND QUANTITY | 3 BRUSH |
| MANUFACTURERS CODE | 25583 |
| DESIGN CONTROL REFERENCE | 815-0002-001 |
Restrictions/Controls & Freight Information | NSN 5977-00-143-6727
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063035 | SETS RADIO/TV AND RELATED ARTICLES |
| Less than car load rating | ||
| Less than truck load rating | G | 125.0 |
| Water commodity Code | 758 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
