NSN 5977-00-285-0825 164277, 00-285-0825, 002850825
Product Details | ELECTRICAL CONTACT BRUSH HOLDER
5977-00-285-0825 A holder designed to accommodate and position a brush against a commutator or collector ring. Also includes items consisting of two or more brush holders (boxes) cast as an inseparable unit. May include facilities for applying pressure to the brush(es) and may also be furnished with the brush(es). See also HOLDER ASSEMBLY, ELECTRICAL CONTACT BRUSH.
Part Alternates: 164277, 5977-00-285-0825, 00-285-0825, 5977002850825, 002850825
Electrical and Electronic Equipment Components | Electrical Contact Brushes and Electrodes
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-285-0825 | 02937 ( HOLDER, ELECTRICAL CONTACT BRUSH ) |
Drawings & Photos | NSN 5977-00-285-0825
Cross Reference | NSN 5977-00-285-0825
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 164277 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5977-00-285-0825
Technical Data | NSN 5977-00-285-0825
| Characteristic | Specifications |
|---|---|

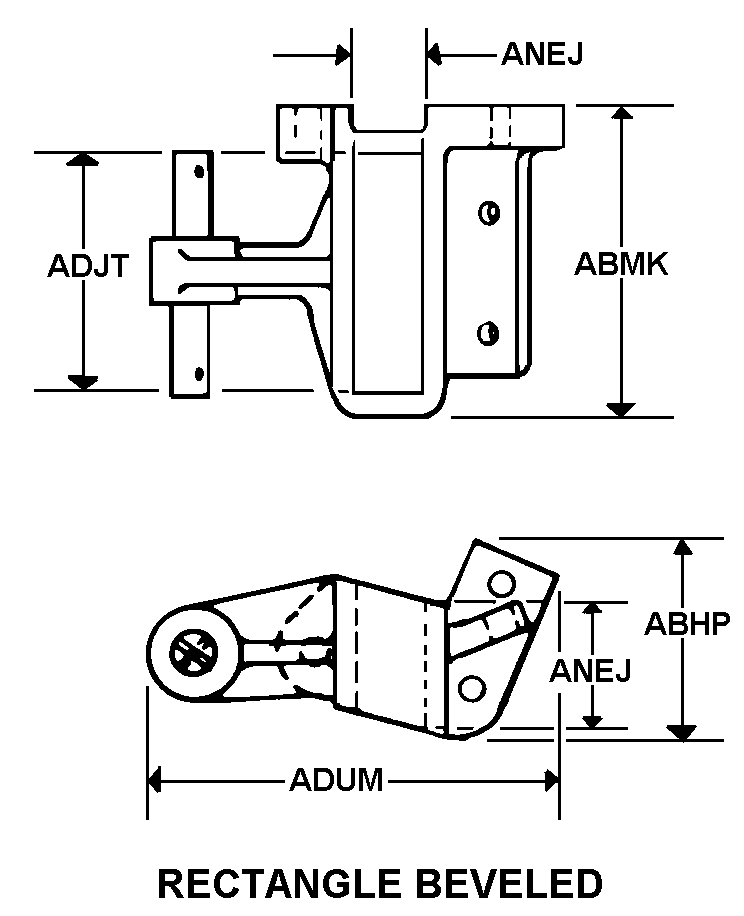

| STYLE DESIGNATOR | A28 RECTANGLE BEVELED |
| OVERALL LENGTH | 0.782 INCHES NOMINAL |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| INSIDE WIDTH | 0.812 INCHES NOMINAL |
| INSIDE LENGTH | 0.812 INCHES NOMINAL |
| OVERALL THICKNESS | 2.562 INCHES NOMINAL |
| INSIDE THICKNESS | 0.375 INCHES NOMINAL |
| MATERIAL AND LOCATION | BRASS BOX |
| CONTACT END BEVEL | INCLUDED |
| CAP | NOT INCLUDED |
| MOUNTING FACILITY | THREADED HOLES |
| MOUNTING FACILITY QUANTITY | 2 |
| BRUSH PRESSURE SPRING TYPE ACCOMMODATED | SPIRAL TORSION |
| BRUSH SPRING ADJUSTABILITY | NONADJUSTABLE |
| BRUSH PRESSURE SPRING | INCLUDED |
| BRUSH QUANTITY ACCOMMODATED PER HOLDER | 1 |
Restrictions/Controls & Freight Information | NSN 5977-00-285-0825
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063035 | SETS RADIO/TV AND RELATED ARTICLES |
| Less than car load rating | ||
| Less than truck load rating | G | 125.0 |
| Water commodity Code | 758 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5977-00-285-0825
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
