NSN 5980-01-103-5043 M19500/519-01, M1950051901, M20549
Product Details | LIGHT EMITTING DIODE
5980-01-103-5043 A two electrode, solid state, optoelectronic device that emits visible or infrared radiant energy when electrically energized. May or may not include mounting hardware and/or heat sink. Excludes LAMP, CARTRIDGE; and LIGHT, INDICATOR. For solid state devices which are responsive to infrared or radiant energy, see SEMICONDUCTOR DEVICE (1), PHOTO.20259800046Optoelectronic Devices and Associated Hardware62100045Indoor and Outdoor Electric Lighting Fixtures
Part Alternates: M19500/519-01, M1950051901, M20549, M205-49, MIL-PRF-19500/519, MILPRF19500519, MIL-S-19500/519, MILS19500519, JANM19500/51901, JANM1950051901, 3512 830 06051, 351283006051, 4150486003, 415-0486-003, 8082991, 808299-1, 5980-01-103-5043, 01-103-5043, 5980011035043, 011035043
Electrical and Electronic Equipment Components | Optoelectronic Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 NOV 1980 | 01-103-5043 | 32371 ( LIGHT EMITTING DIODE ) |

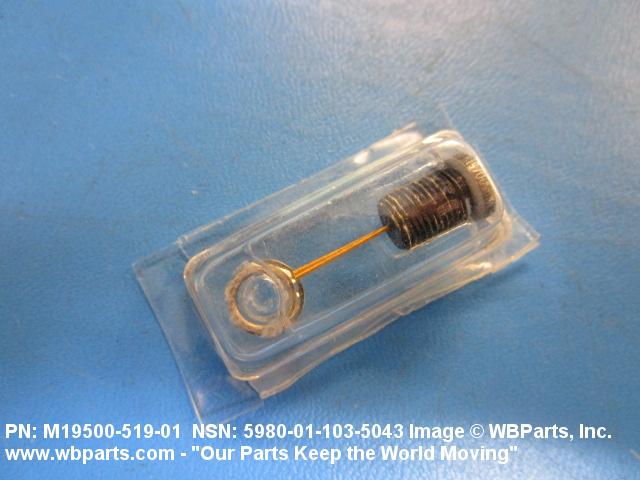

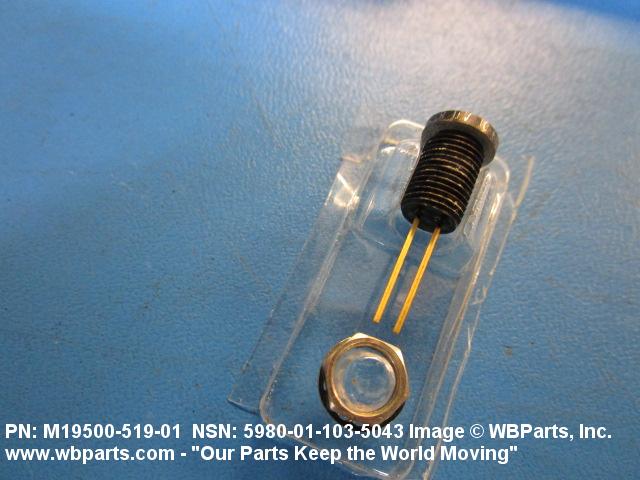

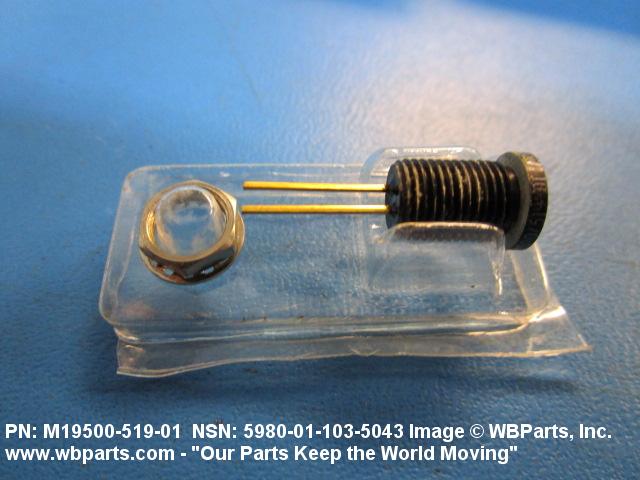

Drawings & Photos | NSN 5980-01-103-5043
Demand History | NSN 5980-01-103-5043
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| JANM1950051901 | 2023-12-354 | 1 | United States |
| 5980-01-103-5043 | 2021-03-90 | 6 | United States |
| JANM1950051901 | 2021-03-90 | 6 | United States |
Cross Reference | NSN 5980-01-103-5043
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3512 830 06051 | D9645 | THALES DEFENCE & SECURITY SYSTEMSGMBH |
| 415-0486-003 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 808299-1 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| JANM19500/51901 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M19500/519-01 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M205-49 | 54418 | MILTOPE CORPORATION |
| MIL-PRF-19500/519 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-S-19500/519 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5980-01-103-5043
Related Products | NSN 5980-01-103-5043
Technical Data | NSN 5980-01-103-5043

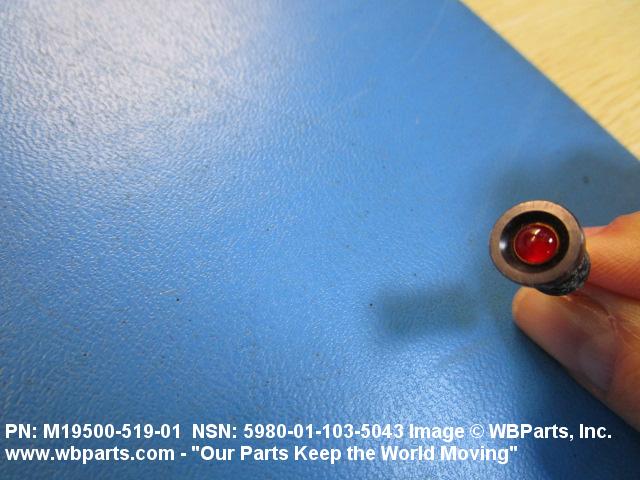

| Characteristic | Specifications |
|---|---|
| SEMICONDUCTOR MATERIAL | GALLIUM ARSENIDE PHOSPHIDE |
| VOLTAGE RATING IN VOLTS PER CHARACTERISTIC | 5.0 MAXIMUM BREAKDOWN VOLTAGE, DC |
| POWER RATING PER CHARACTERISTIC | 120.0 WATTS MAXIMUM FORWARD POWER DISSIPATION, MAXIMUM PEAK, TOTAL VALUE |
| COLOR TONE PRODUCED PER SOURCE | RED LENS |
| LENS TRANSPARENCY | TRANSLUCENT |
| LUMINOUS INTENSITY | 3.0 MILLICANDELA NOMINAL |
| MAXIMUM OPERATING TEMP PER MEASUREMENT POINT | 100.0 DEG CELSIUS AMBIENT AIR |
| INCLOSURE MATERIAL | METAL |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 1 |
| TERMINAL LENGTH | 0.500 INCHES MINIMUM |
| TERMINAL TYPE AND QUANTITY | 2 UNINSULATED WIRE LEAD |

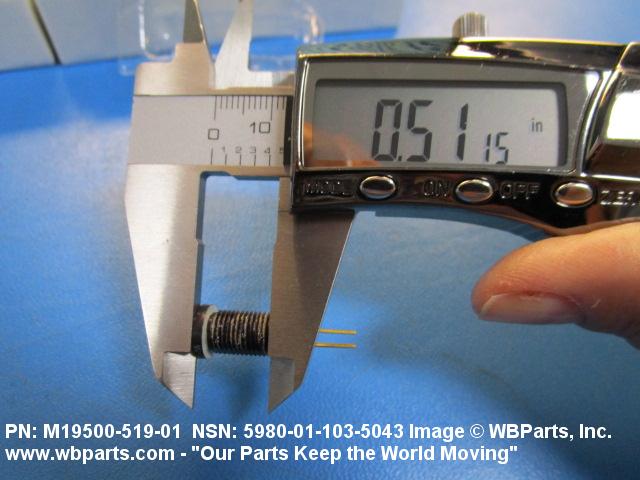

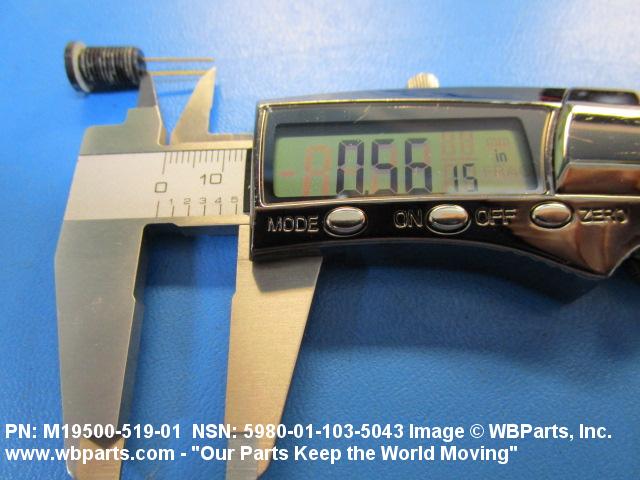

| OVERALL LENGTH | 0.500 INCHES MINIMUM AND 0.520 INCHES MAXIMUM |

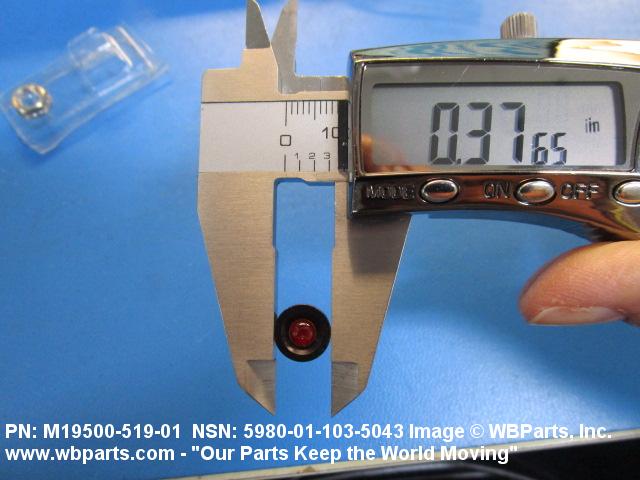

| OVERALL DIAMETER | 0.373 INCHES MINIMUM AND 0.388 INCHES MAXIMUM |
