NSN 5980-01-272-1470 LR1707R, LR-1707R, 01-272-1470
Product Details | LIGHT EMITTING DIODE
5980-01-272-1470 A two electrode, solid state, optoelectronic device that emits visible or infrared radiant energy when electrically energized. May or may not include mounting hardware and/or heat sink. Excludes LAMP, CARTRIDGE; and LIGHT, INDICATOR. For solid state devices which are responsive to infrared or radiant energy, see SEMICONDUCTOR DEVICE (1), PHOTO.20259800046Optoelectronic Devices and Associated Hardware62100045Indoor and Outdoor Electric Lighting Fixtures
Part Alternates: LR1707R, LR-1707R, 5980-01-272-1470, 01-272-1470, 5980012721470, 012721470
Electrical and Electronic Equipment Components | Optoelectronic Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 FEB 1988 | 01-272-1470 | 32371 ( LIGHT EMITTING DIODE ) |

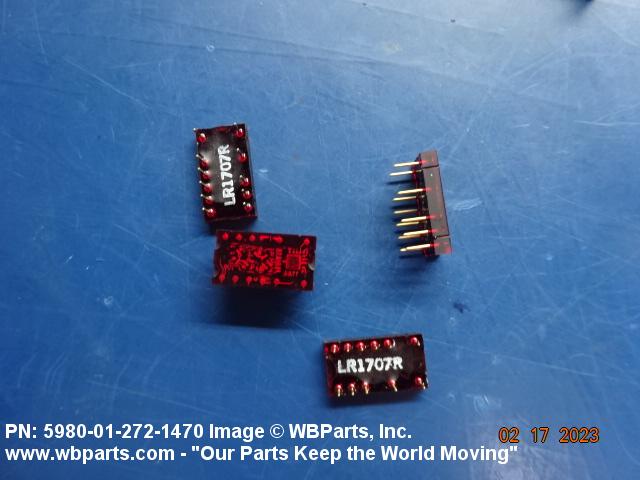

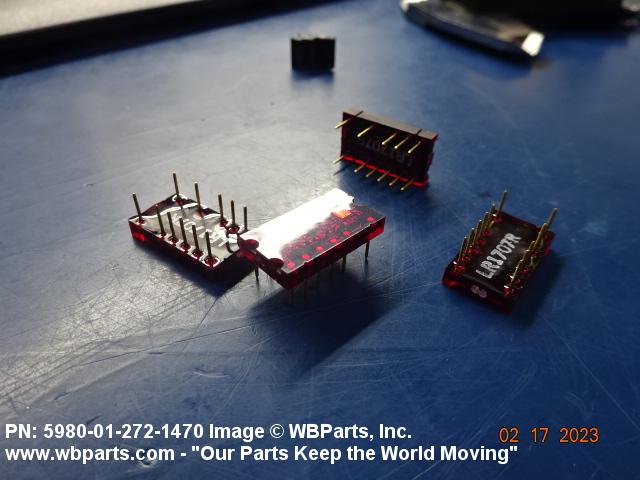

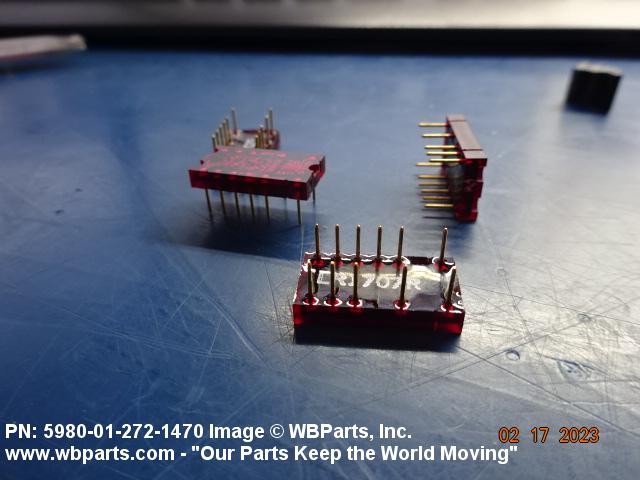

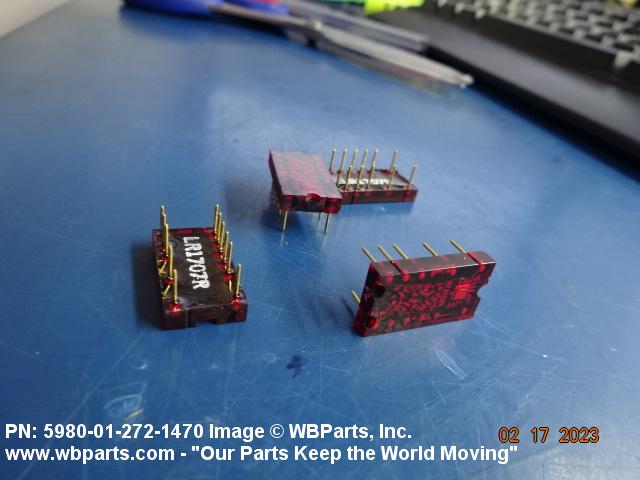

Drawings & Photos | NSN 5980-01-272-1470
Demand History | NSN 5980-01-272-1470
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5980-01-272-1470 | 2023-01-26 | 4 | United States |
Cross Reference | NSN 5980-01-272-1470
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LR-1707R | 05464 | INDUSTRIAL ELECTRONIC ENGINEERS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5980-01-272-1470
Technical Data | NSN 5980-01-272-1470
| Characteristic | Specifications |
|---|---|
| VOLTAGE RATING IN VOLTS PER CHARACTERISTIC | 5.0 NOMINAL COLLECTOR SUPPLY VOLTAGE |
| COLOR TONE PRODUCED PER SOURCE | RED SEMICONDUCTOR |
| LUMINOUS INTENSITY | 35.0 MICROCANDELA NOMINAL |

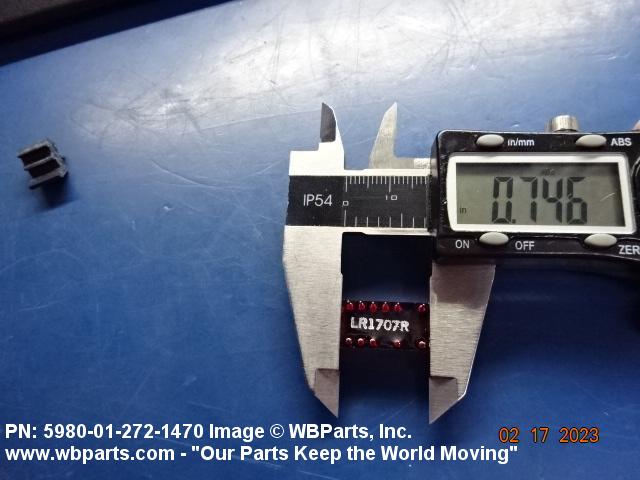

| OVERALL LENGTH | 0.740 INCHES MAXIMUM |

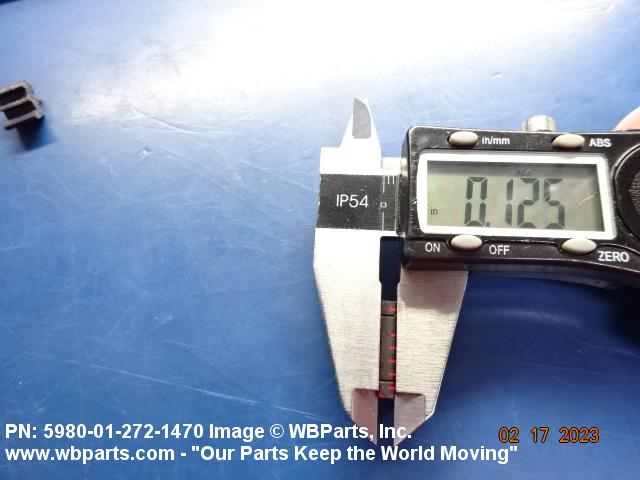

| OVERALL HEIGHT | 0.150 INCHES MAXIMUM |

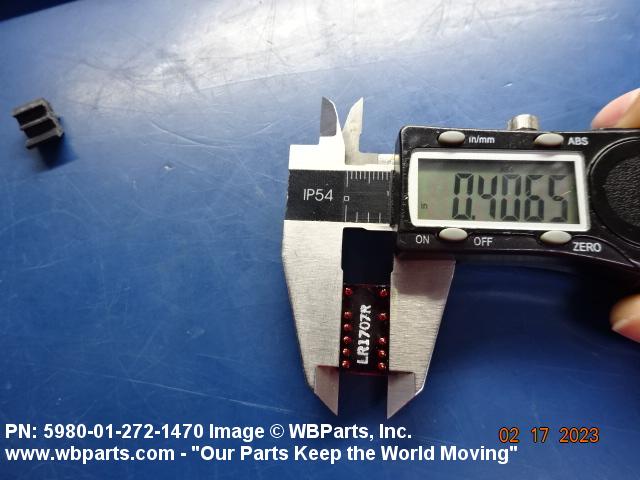

| OVERALL WIDTH | 0.400 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5980-01-272-1470
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
