NSN 5985-00-060-1554 601TNCF, 00-060-1554, 000601554
Product Details | WAVEGUIDE ADAPTER
5985-00-060-1554 An item designed to establish the necessary accommodations to connect a waveguide to a coaxial line, or to connect two or more terminated waveguides whose physical design does not normally allow connection.
Part Alternates: 601TNCF, 5985-00-060-1554, 00-060-1554, 5985000601554, 000601554
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 JUN 1967 | 00-060-1554 | 00186 ( ADAPTER, WAVEGUIDE ) |
Drawings & Photos | NSN 5985-00-060-1554
Demand History | NSN 5985-00-060-1554
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 601TNCF | 2019-07-197 | 2 | DIBBS |
Cross Reference | NSN 5985-00-060-1554
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 601TNCF | 00443 | WAVELINE INCORPORATED |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-00-060-1554
Related Products | NSN 5985-00-060-1554
Technical Data | NSN 5985-00-060-1554
| Characteristic | Specifications |
|---|---|

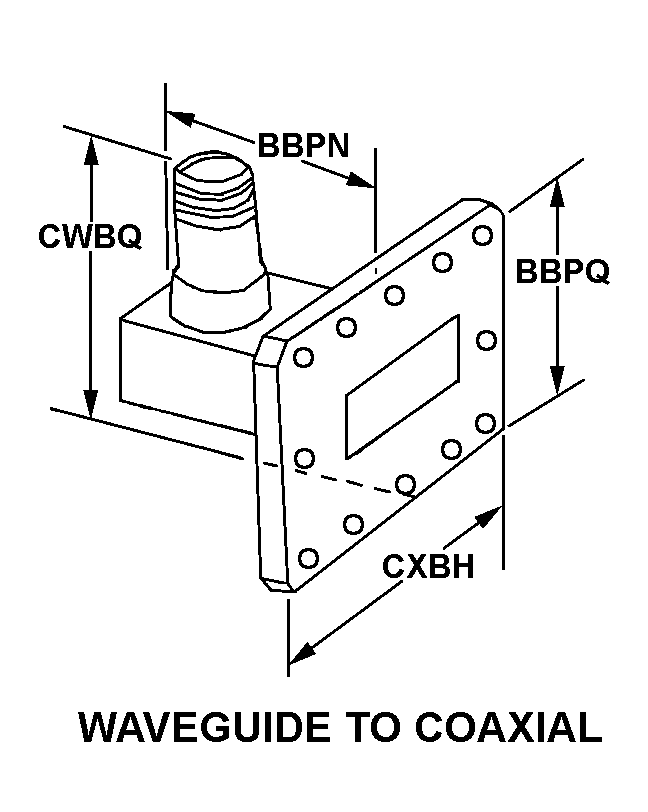

| STYLE DESIGNATOR | D9 WAVEGUIDE TO COAXIAL |
| ADAPTER LENGTH | 1.360 INCHES MINIMUM AND 1.400 INCHES MAXIMUM |
| ADAPTER HEIGHT | 1.625 INCHES NOMINAL |
| ADAPTER OVERALL HEIGHT | 1.762 INCHES NOMINAL |
| ADAPTER OVERALL WIDTH | 1.625 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | A1 INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR |
| WAVEGUIDE OUTSIDE WIDTH | 1.000 INCHES NOMINAL |
| WAVEGUIDE INSIDE WIDTH | 0.900 INCHES NOMINAL |
| WAVEGUIDE INSIDE HEIGHT | 0.400 INCHES NOMINAL |
| WAVEGUIDE OUTSIDE HEIGHT | 0.500 INCHES NOMINAL |
| TUBING WALL CONSTRUCTION STYLE | J1 SEAMLESS SINGLE TUBING SEGMENT |
| MATERIAL | COPPER ALLOY SINGLE TUBING SEGMENT AND FLANGE |
| SURFACE TREATMENT | ANY ACCEPTABLE SINGLE TUBING SEGMENT AND FLANGE ALL SURFACES |
| FLANGE QUANTITY | 1 |
| FLANGE STYLE | C28 COVER TYPE SINGLE FLANGE |
| FLANGE INSIDE WIDTH | 1.003 INCHES NOMINAL SINGLE FLANGE |
| FLANGE INSIDE HEIGHT | 0.505 INCHES NOMINAL SINGLE FLANGE |
| FLANGE OUTSIDE WIDTH | 1.625 INCHES NOMINAL SINGLE FLANGE |
| FLANGE OUTSIDE HEIGHT | 1.625 INCHES NOMINAL SINGLE FLANGE |
| FLANGE DEPTH | 0.437 INCHES NOMINAL SINGLE FLANGE |
| FLANGE CONNECTING FACILITY AND QUANTITY | 4 UNTHREADED HOLE SINGLE FLANGE SINGLE CONNECTION FACILITY |
| FLANGE CONNECTING HOLE DIAMETER | 0.169 INCHES NOMINAL SINGLE FLANGE SINGLE CONNECTION FACILITY |
| COAXIAL CONNECTOR SERIES DESIGNATION | TNC |
| CONNECTOR END DESIGN | FEMALE |
| VOLTAGE STANDING WAVE RATIO | 1.15 |
| SPECIAL FEATURES | FREQUENCY RANGE 8.20 TO 12.4 GHZ |
| (NON-CORE DATA) FRAGILITY FACTOR | MODERATELY DELICATE |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | EXTERNAL SURFACES SILVER |
| III FSC APPLICATION DATA | RADAR EQUIPMENT |
Restrictions/Controls & Freight Information | NSN 5985-00-060-1554
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063520 | WAVEGUIDE IN BOXES/CRATES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-00-060-1554
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
