NSN 5985-00-217-0457 M5815/1-01, M5815101, AT-256A/ARC
Product Details | ANTENNA
5985-00-217-0457 An item consisting of a conductor or a system of conductors specifically designed to radiate and/or receive electromagnetic waves in free space. May include beam-forming devices, drive motors, synchros, radome, and associated mechanical structure.
Part Alternates: M5815/1-01, M5815101, AT-256A/ARC, AT256AARC, AT256ARC, MIL-A-5815/1, MILA58151, 653569, 65-3569, 50F12696, 5985-00-217-0457, 00-217-0457, 5985002170457, 002170457
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-217-0457 | 00749 ( ANTENNA ) |

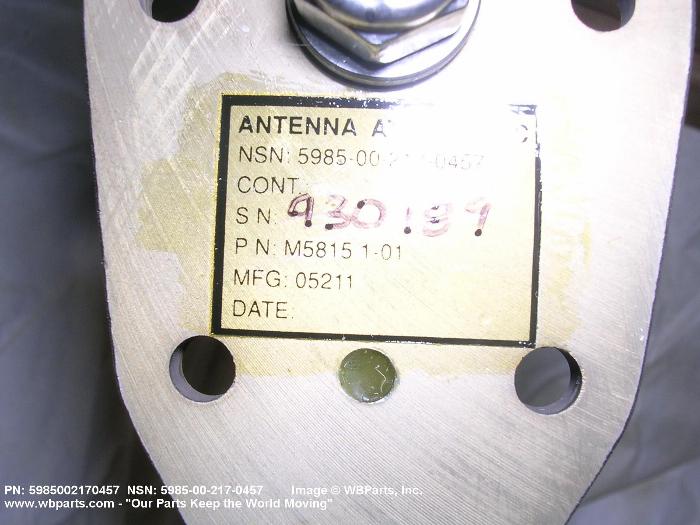

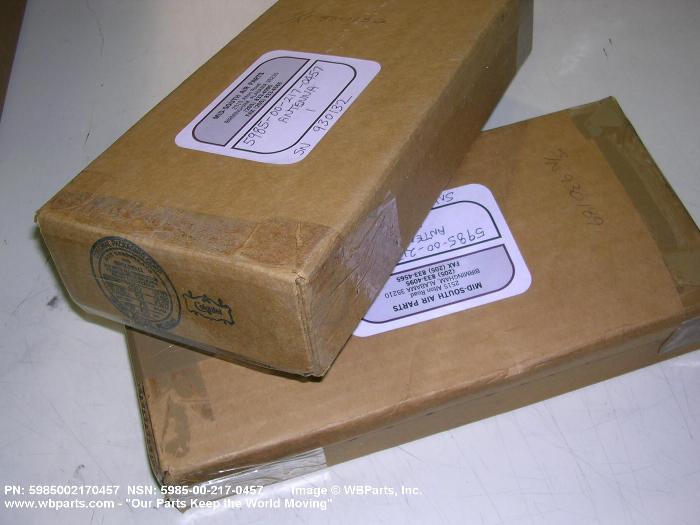

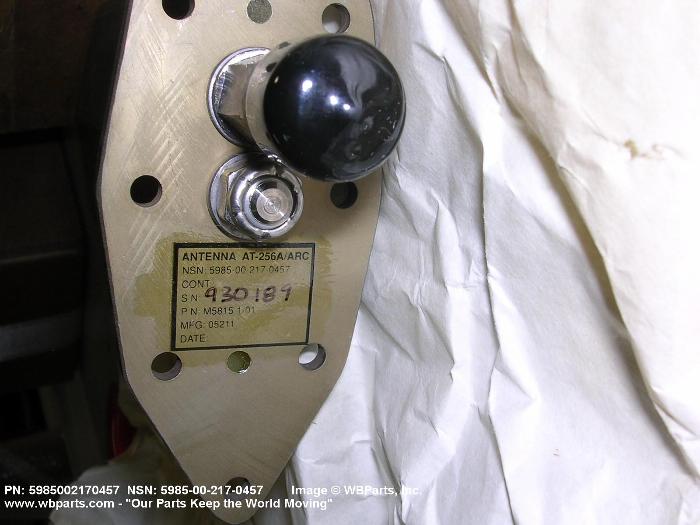

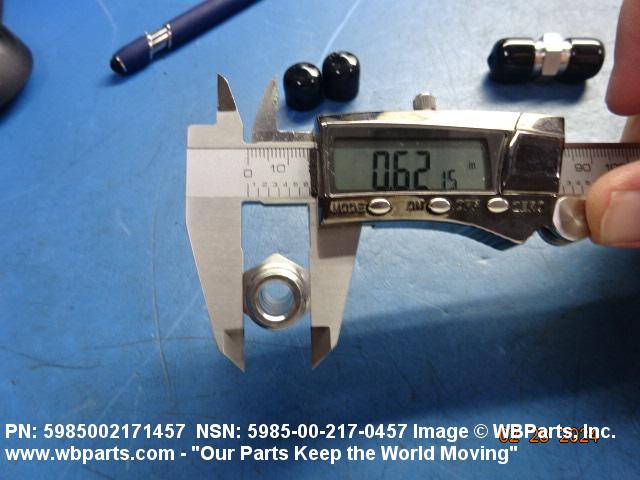

Drawings & Photos | NSN 5985-00-217-0457
Demand History | NSN 5985-00-217-0457
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-00-217-0457 | 2025-08-219 | 2 | CA |
| 5985-00-217-0457 | 2025-08-219 | 37 | DIBBS |
| 5985-00-217-0457 | 2025-07-210 | 43 | US |
| 5985-00-217-0457 | 2025-03-90 | 27 | DIBBS |
| AT256AARC | 2024-02-57 | 2 | United States |
| 5985-00-217-0457 | 2024-02-44 | 2 | United States |
| AT256AARC | 2024-01-30 | 1 | MT |
| M5815101 | 2023-10-297 | 2 | US |
| AT256AARC | 2023-10-291 | 1 | United States |
| 5985-00-217-0457 | 2023-10-285 | 6 | DIBBS |
| 5985-00-217-0457 | 2023-10-282 | 8 | DIBBS |
| 5985-00-217-0457 | 2023-07-212 | 3 | KR |
| 5985-00-217-0457 | 2023-01-12 | 11 | DIBBS |
| 5985-00-217-0457 | 2022-12-341 | 5 | DIBBS |
| 5985-00-217-0457 | 2022-12-341 | 6 | DIBBS |
| 5985-00-217-0457 | 2022-11-321 | 9 | DIBBS |
| 5985-00-217-0457 | 2022-10-285 | 2 | Thailand |
| 5985-00-217-0457 | 2022-09-265 | 8 | DIBBS |
| 5985-00-217-0457 | 2022-09-248 | 6 | DIBBS |
| 5985-00-217-0457 | 2022-05-145 | 10 | DIBBS |
| 5985-00-217-0457 | 2019-06-179 | 1 | DIBBS-RFPs |
| 5985-00-217-0457 | 2019-04-105 | 21 | DIBBS |
| 5985-00-217-0457 | 2018-02-47 | 1 | US |
| 5985-00-217-0457 | 2018-02-46 | 1 | us |
| 5985-00-217-0457 | 2017-11-334 | 2 | DIBBS |
| 5985-00-217-0457 | 2016-12-364 | 26 | DIBBS |
| 5985-00-217-0457 | 2016-07-203 | 25 | DIBBS |
| 5985-00-217-0457 | 2016-06-178 | 2 | SA |
| 5985-00-217-0457 | 2016-03-82 | 49 | DIBBS |
| 5985-00-217-0457 | 2016-01-03 | 68 | DIBBS |
| AT-256A/ARC | 2015-09-252 | 4 | US |
| 5985-00-217-0457 | 2014-12-338 | 35 | DIBBS |
| M5815101 | 2014-08-232 | 9 | Brazil |
| 5985-00-217-0457 | 2014-04-120 | 67 | DIBBS |
| 5985-00-217-0457 | 2013-11-311 | 18 | DIBBS |
| 5985-00-217-0457 | 2013-09-272 | 22 | DIBBS |
| 5985-00-217-0457 | 2011-08-214 | 1 | US |
| 5985-00-217-0457 | 2011-07-186 | 121 | DIBBS |
| 5985-00-217-0457 | 2011-05-145 | 1 | United States |
| 5985-00-217-0457 | 2011-05-139 | 58 | DIBBS |
| 5985-00-217-0457 | 2011-05-138 | 1 | US |
| 5985-00-217-0457 | 2011-05-138 | 1 | United States |
| 5985-00-217-0457 | 2011-03-81 | 60 | DIBBS |
| 5985-00-217-0457 | 2010-10-285 | 53 | DIBBS |
| 5985-00-217-0457 | 2010-07-210 | 34 | DIBBS |
| 5985-00-217-0457 | 2010-06-160 | 102 | DIBBS |
| 5985-00-217-0457 | 2010-03-69 | 41 | DIBBS |
| 5985-00-217-0457 | 2009-08-230 | 1 | US |
| 5985-00-217-0457 | 2009-06-173 | 1 | US |
| AT256ARC | 2008-03-64 | 1 | US |
| 5985-00-217-0457 | 2007-11-325 | 1 | United States |
| 5985-00-217-0457 | 2007-01-29 | 2 | United States |
Cross Reference | NSN 5985-00-217-0457
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 50F12696 | 98752 | WARNER ROBINS AIR LOGISTICS CENTER |
| 65-3569 | 82918 | THE BOEING COMPANY DBA BOEING |
| AT-256A/ARC | 00752 | EDO CORPORATION DIV EDO CORPORATION AP&T |
| AT-256A/ARC | 05211 | R. A. MILLER INDUSTRIES, INC. DBA RAMI |
| AT-256A/ARC | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
| AT256ARC | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
| M5815/1-01 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-A-5815/1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-00-217-0457
Related Products | NSN 5985-00-217-0457
Technical Data | NSN 5985-00-217-0457
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | BLADE SINGLE ANTENNA ELEMENT |
| ELECTROMAGNETIC POLARIZATION TYPE | VERTICAL SINGLE ANTENNA ELEMENT |
| RADIATION PATTERN | OMNIDIRECTIONAL SINGLE ANTENNA ELEMENT |
| BEAM SCANNING METHOD | FIXED SINGLE ANTENNA ELEMENT |
| FREQUENCY RATING | 225.000 MEGAHERTZ MINIMUM AND 400.000 MEGAHERTZ MAXIMUM SINGLE ANTENNA ELEMENT |
| CHARACTERISTIC IMPEDANCE IN OHMS | 50.0 SINGLE ANTENNA ELEMENT |
| TERMINAL TYPE | RECEPTACLE, COAXIAL SINGLE ANTENNA ELEMENT |
| COAXIAL CONNECTOR SERIES DESIGNATION | N SINGLE ANTENNA ELEMENT |
| CONNECTOR END DESIGN | PIN SINGLE ANTENNA ELEMENT |
| OVERALL LENGTH | 4.969 INCHES MINIMUM AND 5.031 INCHES MAXIMUM |
| OVERALL HEIGHT | 10.488 INCHES MAXIMUM |
| OVERALL WIDTH | 1.069 INCHES MINIMUM AND 2.031 INCHES MAXIMUM |
| MOUNTING METHOD | BASE AND UNTHREADED HOLE |
| MOUNTING HOLE QUANTITY | 8 |
| MOUNTING HOLE DIAMETER | 0.188 INCHES NOMINAL |
| TEST DATA DOCUMENT | 81349-MIL-A-5815 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-A-5815/1 GOVERNMENT SPECIFICATION |
| III FSC APPLICATION DATA | ANTENNAS,WAVEGUIDES,AND RELATED EQUIPMENT |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-A-5815/1 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M5815/1-01 |
Restrictions/Controls & Freight Information | NSN 5985-00-217-0457
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
