Product Details | WAVEGUIDE ASSEMBLY
5985-00-248-8852 An item consisting of one or more definite lengths of straight or formed, flexible or rigid, prefabricated hollow tubing of conductive material. The tubing has a predetermined cross section and is designed to guide or conduct high frequency electromagnetic energy through its interior. One or more ends are terminated. May include common mounting of a SWITCH, WAVE GUIDE, a DUMMY LOAD, ELECTRICAL and other components such as waveguide section, cable terminal chamber and the like. Excludes COUPLER, ROTARY, RADIO FREQUENCY; COUPLER, DIRECTIONAL; ADAPTER, WAVEGUIDE; and TUNER, WAVEGUIDE.
Part Alternates: 45322, 5985-00-248-8852, 00-248-8852, 5985002488852, 002488852
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-248-8852 | 00305 ( WAVEGUIDE ASSEMBLY ) |
Drawings & Photos | NSN 5985-00-248-8852
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5985-00-248-8852
Related Products | NSN 5985-00-248-8852
5985-00-248-8853, 5985-00-248-8856, 5985-00-248-8857, 5985-00-248-8858, 5985-00-248-8859
Technical Data | NSN 5985-00-248-8852
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B5 DOUBLE BEND TYPE |
| WAVEGUIDE CENTER TO CENTER DISTANCE | 8.875 INCHES NOMINAL |
| WAVEGUIDE HEIGHT | 1.688 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | A1 INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR |
| WAVEGUIDE OUTSIDE WIDTH | 1.000 INCHES NOMINAL |
| WAVEGUIDE INSIDE WIDTH | 0.900 INCHES NOMINAL |
| WAVEGUIDE INSIDE HEIGHT | 0.400 INCHES NOMINAL |
| WAVEGUIDE OUTSIDE HEIGHT | 0.500 INCHES NOMINAL |
| FLEXIBILITY | RIGID ALL TUBING SEGMENT |

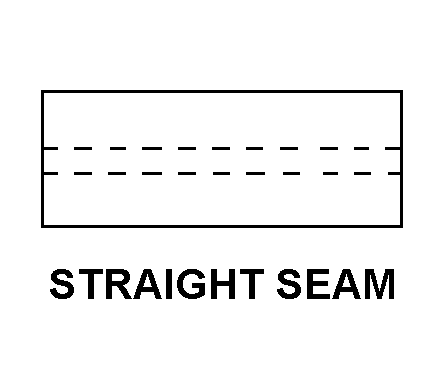

| TUBING WALL CONSTRUCTION STYLE | J4 STRAIGHT SEAM ALL TUBING SEGMENT |
| MATERIAL | COPPER ALLOY ALL TUBING SEGMENT AND FLANGE |
| SURFACE TREATMENT | SILVER ALL TUBING SEGMENT INSIDE SURFACES |
| FLANGE QUANTITY | 2 |
| FLANGE STYLE | C28 COVER TYPE FIRST FLANGE C3 CHOKE TYPE SECOND FLANGE |
| FLANGE INSIDE WIDTH | 1.0625 INCHES NOMINAL FIRST FLANGE 0.900 INCHES NOMINAL SECOND FLANGE |
| FLANGE INSIDE HEIGHT | 0.505 INCHES NOMINAL FIRST FLANGE 0.400 INCHES NOMINAL SECOND FLANGE |
| FLANGE OUTSIDE WIDTH | 1.625 INCHES NOMINAL FIRST FLANGE 1.625 INCHES NOMINAL SECOND FLANGE |
| FLANGE OUTSIDE HEIGHT | 1.625 INCHES NOMINAL FIRST FLANGE 1.625 INCHES NOMINAL SECOND FLANGE |
| FLANGE INSIDE DIAMETER | 1.422 INCHES NOMINAL SECOND FLANGE |
| FLANGE DEPTH | 0.4375 INCHES NOMINAL FIRST FLANGE 0.438 INCHES NOMINAL SECOND FLANGE |
| FLANGE CONNECTING FACILITY AND QUANTITY | 4 UNTHREADED HOLE FIRST FLANGE ALL CONNECTION FACILITIES 4 THREADED HOLE SECOND FLANGE ALL CONNECTION FACILITIES |
| FLANGE CONNECTING HOLE DIAMETER | 0.169 INCHES NOMINAL FIRST FLANGE ALL CONNECTION FACILITIES |
| THREAD SERIES DESIGNATOR | UNC SECOND FLANGE ALL CONNECTION FACILITIES |
| NOMINAL THREAD SIZE | 0.164 INCHES SECOND FLANGE ALL CONNECTION FACILITIES |
| THREAD CLASS | 2B SECOND FLANGE ALL CONNECTION FACILITIES |
| THREAD QUANTITY PER INCH | 32 SECOND FLANGE ALL CONNECTION FACILITIES |
| THREAD DIRECTION | RIGHT-HAND SECOND FLANGE ALL CONNECTION FACILITIES |
| (NON-CORE DATA) TUBING MANUFACTURER PART NUMBER | M85/1-079 ALL TUBING SEGMENT |
| (NON-CORE DATA) FLANGE MANUFACTURER PART NUMBER | M3922/53-001 FIRST FLANGE M3922/59-6 SECOND FLANGE |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | TUBING INSIDE SURFACE SILVER |
| III FSC APPLICATION DATA | RADAR EQUIPMENT,EXCEPT AIRBORNE |
Restrictions/Controls & Freight Information | NSN 5985-00-248-8852
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063520 | WAVEGUIDE IN BOXES/CRATES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-00-248-8852
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
