NSN 5985-00-249-8960 CPA20303, CPA2030-3, 69B25325
Product Details | WAVEGUIDE SEAL
5985-00-249-8960 An item or assembly designed to be fitted into or external to the end of a waveguide, in order to prevent the entrance of moisture or other foreign matter, without appreciably attenuating radio frequencies. May or may not be pressure proof.
Part Alternates: CPA20303, CPA2030-3, 69B25325, 5985-00-249-8960, 00-249-8960, 5985002498960, 002498960
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-249-8960 | 02477 ( SEAL, WAVEGUIDE ) |
Drawings & Photos | NSN 5985-00-249-8960
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-00-249-8960
Technical Data | NSN 5985-00-249-8960
| Characteristic | Specifications |
|---|---|

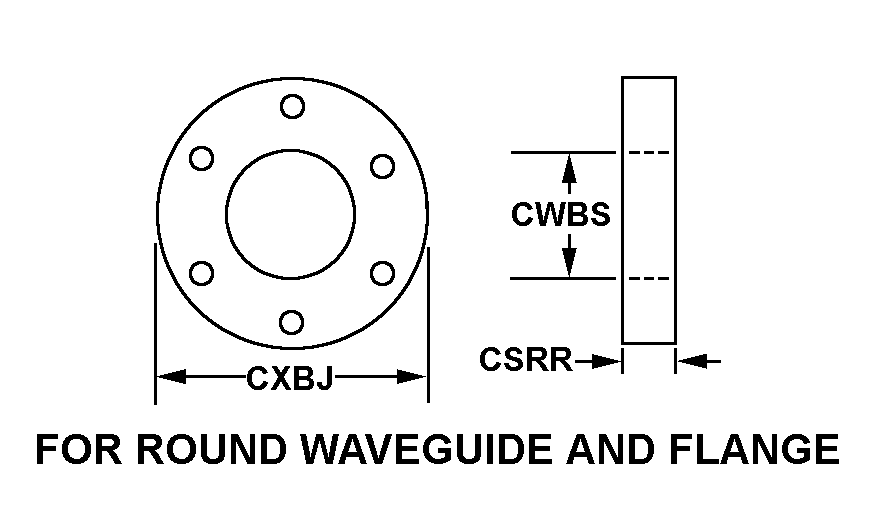

| STYLE DESIGNATOR | G4 FOR ROUND WAVEGUIDE AND FLANGE |
| SEAL THICKNESS | 0.250 INCHES NOMINAL |
| SEAL INSIDE DIAMETER | 0.516 INCHES NOMINAL |
| SEAL OUTSIDE DIAMETER | 1.640 INCHES NOMINAL |
| MATERIAL | PLASTIC POLYAMIDE SINGLE SEAL |
Restrictions/Controls & Freight Information | NSN 5985-00-249-8960
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
