Product Details | WAVEGUIDE SEAL

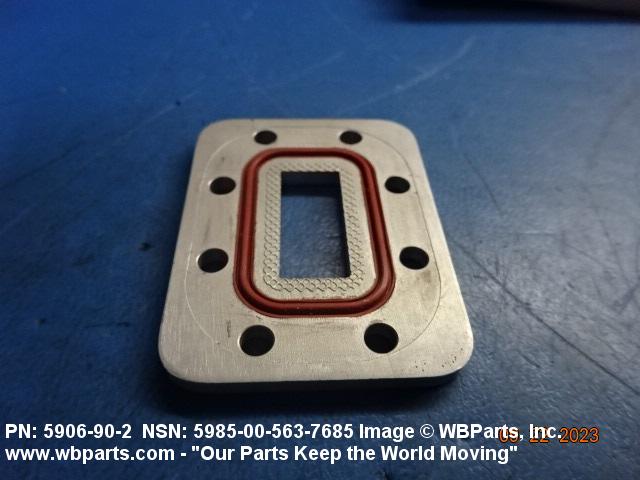

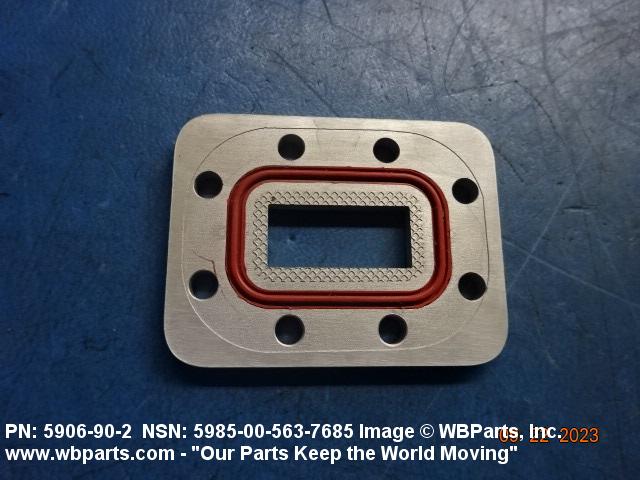

5985-00-563-7685 An item or assembly designed to be fitted into or external to the end of a waveguide, in order to prevent the entrance of moisture or other foreign matter, without appreciably attenuating radio frequencies. May or may not be pressure proof.
Part Alternates: M24211/2-011, M242112011, MIL-DTL-24211/2, MILDTL242112, MIL-G-24211/2, MILG242112, 2836632, 5906902, 5906-90-2, 5985-00-563-7685, 00-563-7685, 5985005637685, 005637685
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 NOV 1974 | 00-563-7685 | 02477 ( SEAL, WAVEGUIDE ) |
Drawings & Photos | NSN 5985-00-563-7685
Demand History | NSN 5985-00-563-7685
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M242112011 | 2025-09-267 | 55 | US |
| M242112011 | 2025-09-266 | 9 | US |
| 5985-00-563-7685 | 2025-08-234 | 4 | United States |
| M242112011 | 2025-06-168 | 50 | US |
| 5985-00-563-7685 | 2023-09-257 | 2 | United States |
| 5985-00-563-7685 | 2019-09-269 | 300 | US |
| 5985-00-563-7685 | 2018-04-105 | 168 | DIBBS |
| MILDTL242112 | 2017-05-142 | 50 | TW |
Cross Reference | NSN 5985-00-563-7685
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2836632 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 5906-90-2 | 83259 | PARKER-HANNIFIN CORPORATION DBA COMPOSITE SEALING SYSTEMS |
| M24211/2-011 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-24211/2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-G-24211/2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-00-563-7685
Related Products | NSN 5985-00-563-7685
Technical Data | NSN 5985-00-563-7685

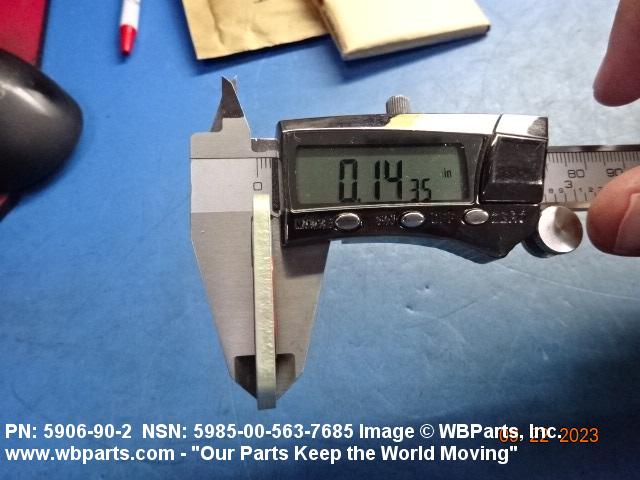

| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | G1 FOR RECTANGULAR WAVEGUIDE AND FLANGE |
| SEAL THICKNESS | 0.155 INCHES MINIMUM AND 0.165 INCHES MAXIMUM |
| SEAL INSIDE HEIGHT | 0.397 INCHES MINIMUM AND 0.403 INCHES MAXIMUM |

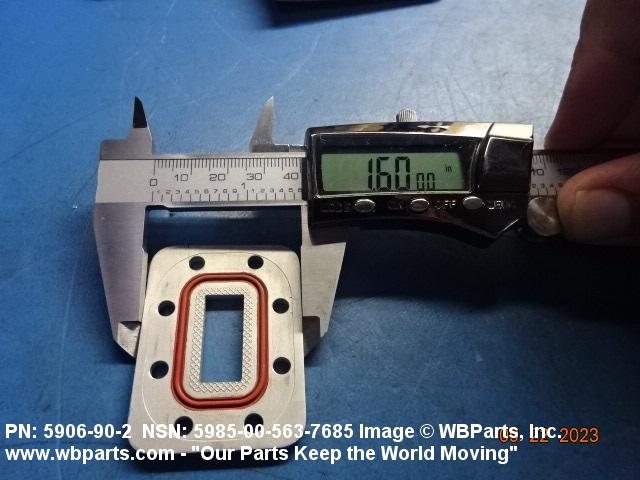

| SEAL OUTSIDE HEIGHT | 1.570 INCHES MINIMUM AND 1.610 INCHES MAXIMUM |

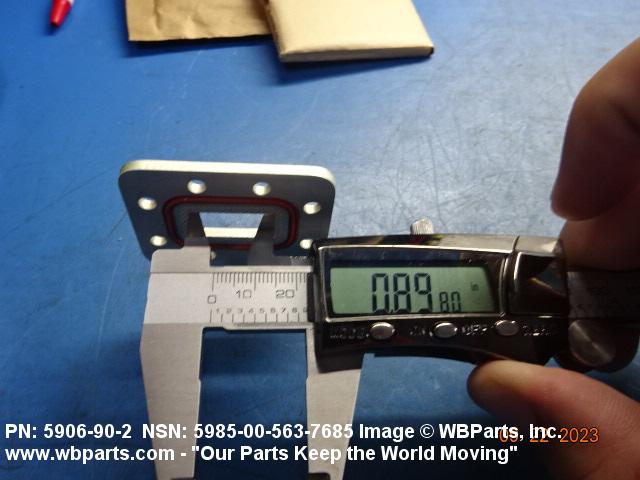

| SEAL INSIDE WIDTH | 0.897 INCHES MINIMUM AND 0.903 INCHES MAXIMUM |

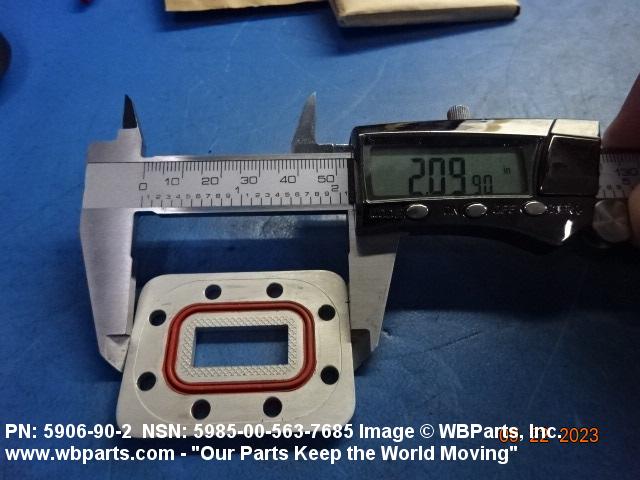

| SEAL OUTSIDE WIDTH | 2.070 INCHES MINIMUM AND 2.110 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY FIRST SEAL RUBBER SILICONE SECOND SEAL |
| (NON-CORE DATA) MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/11 FED SPEC SINGLE MATERIAL RESPONSE FIRST SEAL ZZ-R-765 FED SPEC SINGLE MATERIAL RESPONSE SECOND SEAL |
| SURFACE TREATMENT | CADMIUM FIRST VANE INSIDE SURFACES |
| (NON-CORE DATA) TEST DATA DOCUMENT | 81349-MIL-G-24211 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-G-24211/2 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-DTL-24211/2 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24211/2-011 |
