NSN 5985-00-644-3275 R7437, 00-644-3275, 006443275
Product Details | ANTENNA REFLECTOR
5985-00-644-3275 An object placed at a distance from a source of radiation, and designed to change the direction of incident radiation without appreciable transmission through it. It is used with an antenna. See also ANTENNA ELEMENT.
Part Alternates: R7437, 5985-00-644-3275, 00-644-3275, 5985006443275, 006443275
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-644-3275 | 00244 ( REFLECTOR, ANTENNA ) |
Drawings & Photos | NSN 5985-00-644-3275
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-00-644-3275
Technical Data | NSN 5985-00-644-3275
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OR STEEL, STAINLESS |

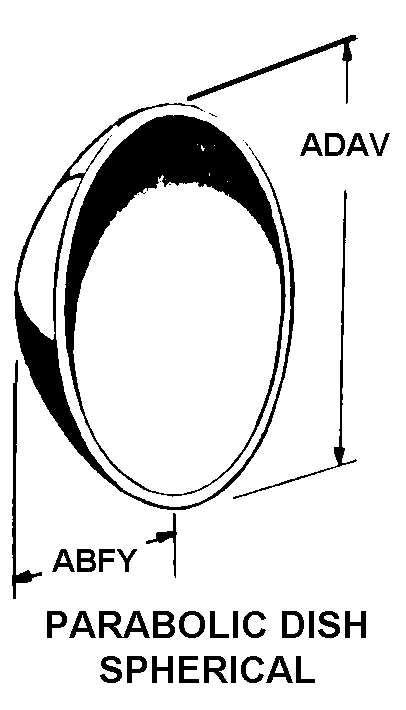

| STYLE DESIGNATOR | 1B PARABOLIC DISH SPHERICAL |
| OVERALL DEPTH | 4.000 FEET NOMINAL |
| OVERALL DIAMETER | 9.000 FEET NOMINAL |
| SPECIAL FEATURES | MTD BY TWO BRG BLK 35.000 IN C TO C AND CLV 32.000 IN FROM BRG BLK |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | R7437 |
Restrictions/Controls & Freight Information | NSN 5985-00-644-3275
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
