NSN 5985-00-805-8370 MA710, 00-805-8370, 008058370
Product Details | WAVEGUIDE SHUTTER
5985-00-805-8370 A waveguide section which contains a switching device to permit the interruption or diversion of the radio frequency energy by means of a mechanical barrier.
Part Alternates: MA710, 5985-00-805-8370, 00-805-8370, 5985008058370, 008058370
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-805-8370 | 02035 ( SHUTTER, WAVEGUIDE ) |

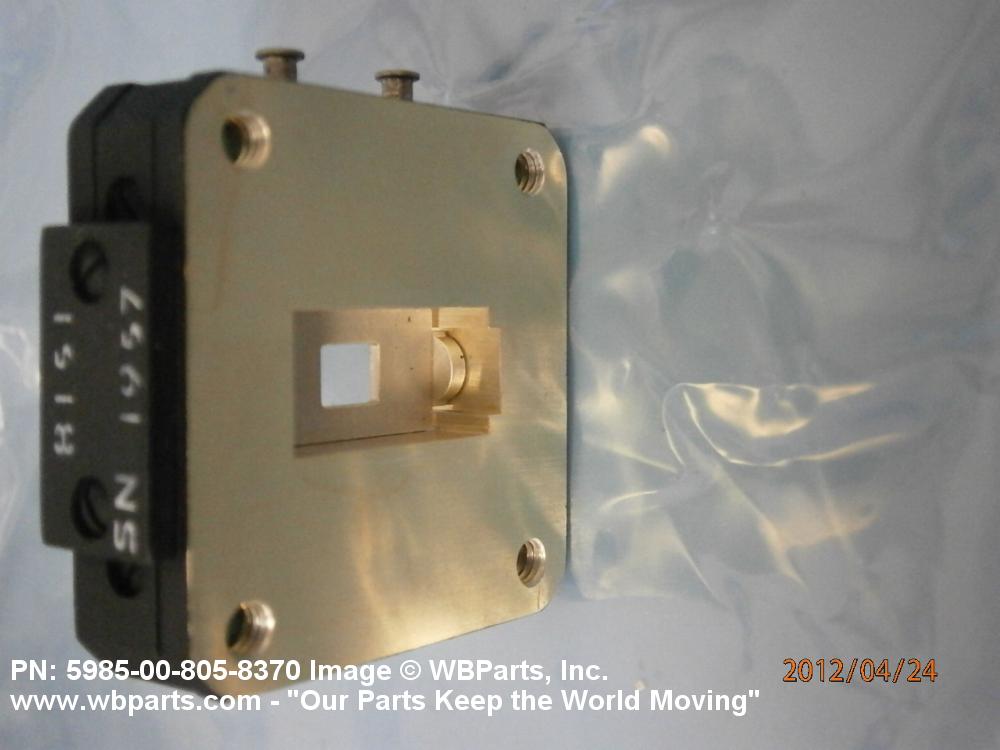

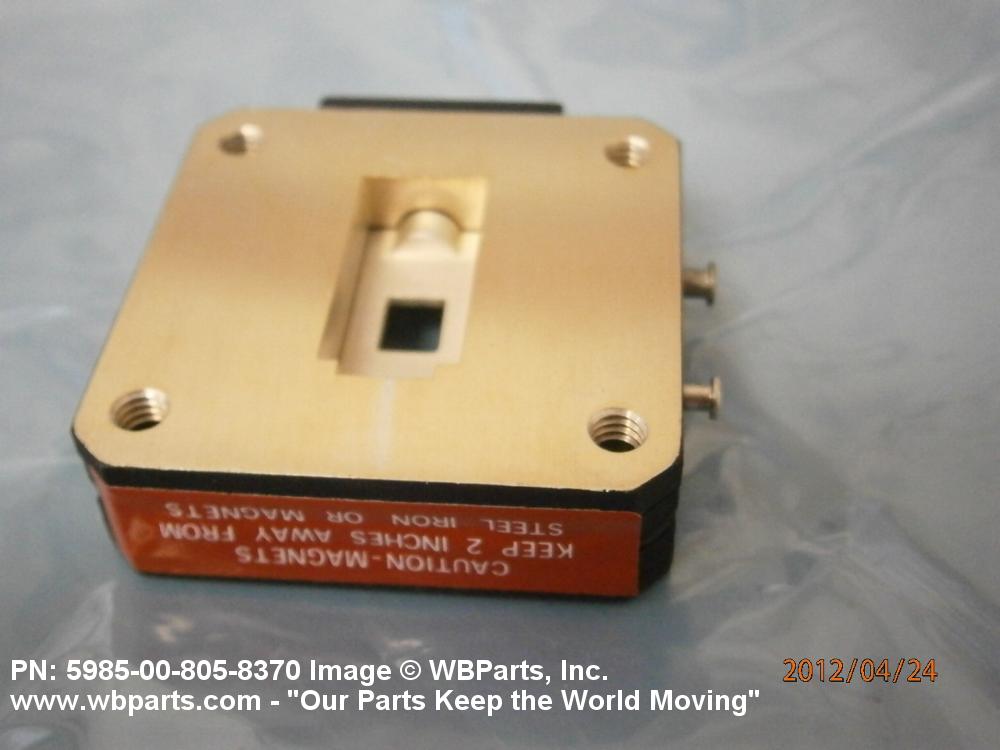

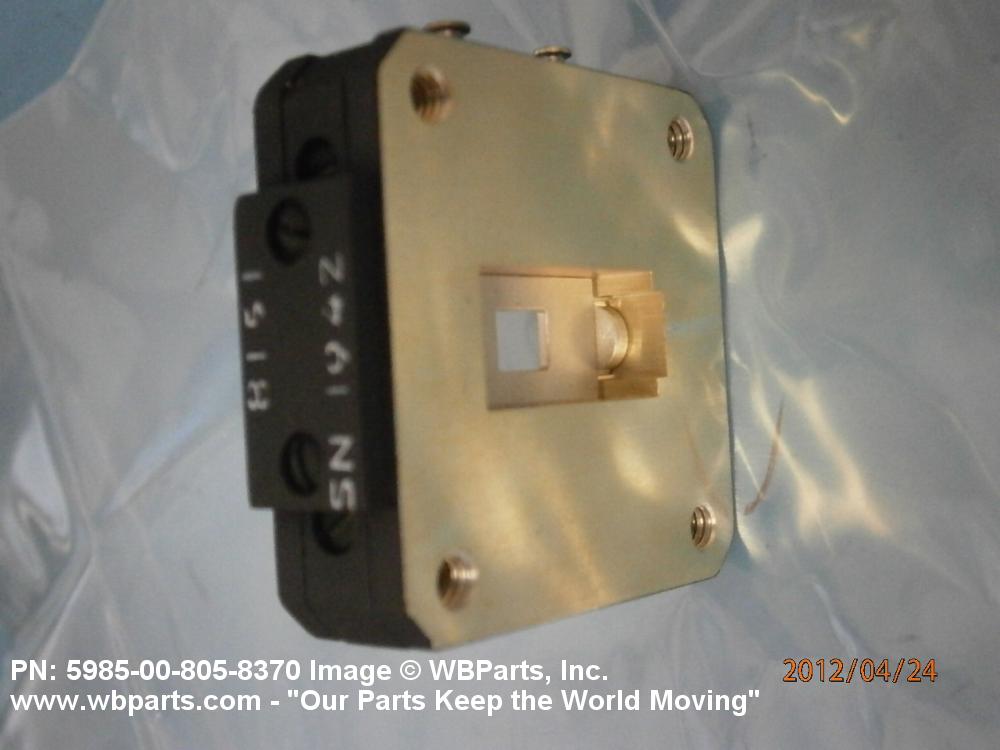

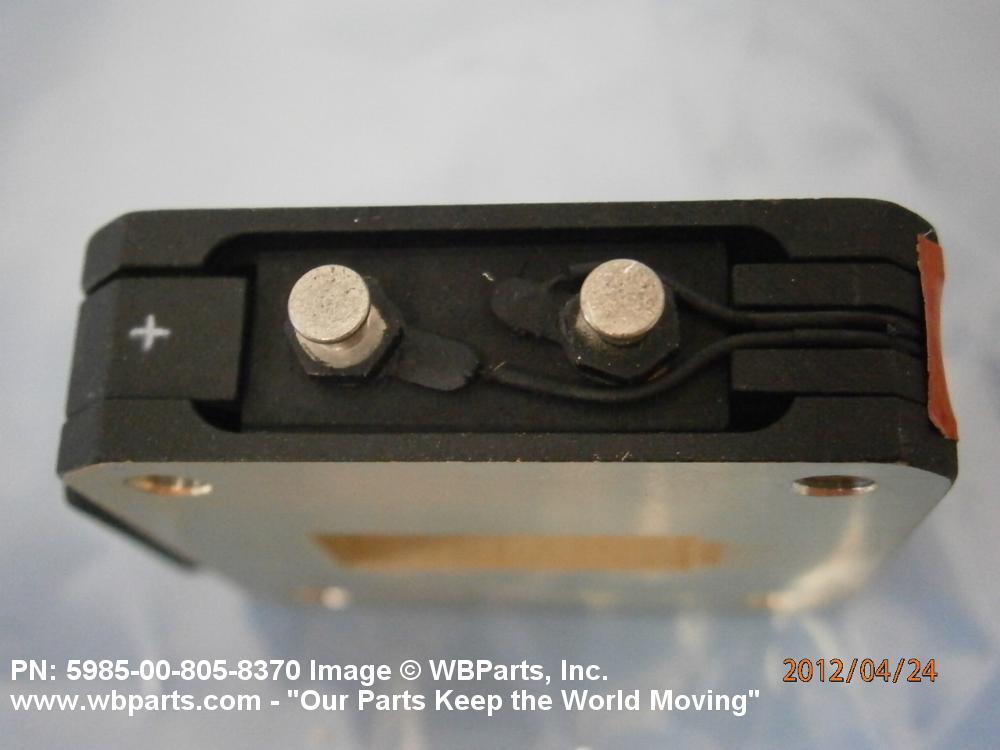

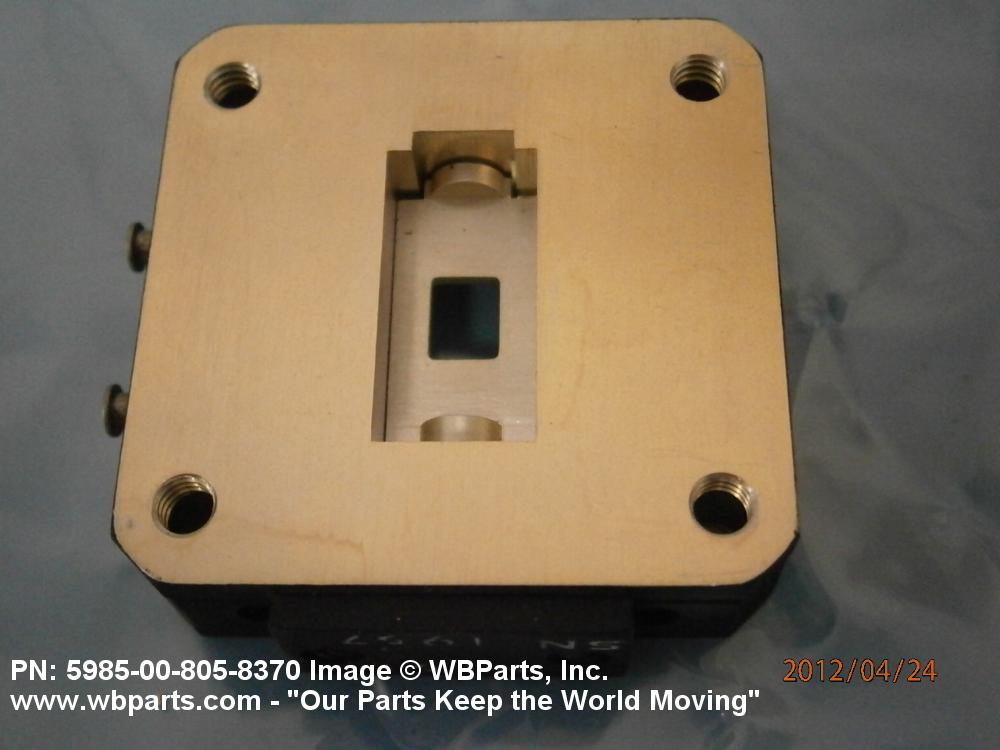

Drawings & Photos | NSN 5985-00-805-8370
Demand History | NSN 5985-00-805-8370
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-00-805-8370 | 2012-03-89 | 2 | United States |
| 5985-00-805-8370 | 2012-03-87 | 2 | United States |
Cross Reference | NSN 5985-00-805-8370
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MA710 | 96341 | COBHAM ELECTRONIC SYSTEMS INC. DBA COBHAM DEFENSE ELECTRONICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-00-805-8370
Related Products | NSN 5985-00-805-8370
Technical Data | NSN 5985-00-805-8370
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | ELECTRICAL |
| CURRENT TYPE | DC |
| DC VOLTAGE RATING | 29.0 VOLTS NOMINAL |
| MATERIAL | BRASS |
| OVERALL LENGTH | 1.625 INCHES NOMINAL |
| OVERALL WIDTH | 1.625 INCHES NOMINAL |
| OVERALL HEIGHT | 0.485 INCHES NOMINAL |
| MOUNTING CONFIGURATION | FOUR MTG HOLES 0.174 IN. DIA ON 1.220 IN. BY 1.280 IN. MTG CENTERS |
| MANUFACTURERS CODE | 96341 |
| DESIGN CONTROL REFERENCE | MA710 |
Restrictions/Controls & Freight Information | NSN 5985-00-805-8370
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063520 | WAVEGUIDE IN BOXES/CRATES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-00-805-8370
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
