Product Details | WAVEGUIDE ADAPTER
5985-00-994-3682 An item designed to establish the necessary accommodations to connect a waveguide to a coaxial line, or to connect two or more terminated waveguides whose physical design does not normally allow connection.
Part Alternates: DBGH018, DBGH-018, GH018, 6055517, 8579411, 10667940, 5985-00-994-3682, 00-994-3682, 5985009943682, 009943682
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-994-3682 | 00186 ( ADAPTER, WAVEGUIDE ) |
Drawings & Photos | NSN 5985-00-994-3682
Cross Reference | NSN 5985-00-994-3682
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10667940 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 6055517 | 03640 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 6055517 | 0B6S1 | INTERNATIONAL BUSINESS MACHINES CORP PARTS ORDER CENTER DEPT E - 54 |
| 6055517 | 30874 | INTERNATIONAL BUSINESS MACHINES CORP |
| 8579411 | 19200 | US ARMY ARDEC RDECOM |
| DBGH-018 | 01220 | SYSTRON-DONNER CORP MICROWAVE/INSTRUMENT DIV |
| DBGH-018 | C1834 | KONTRON AG |
| GH018 | 01220 | SYSTRON-DONNER CORP MICROWAVE/INSTRUMENT DIV |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5985-00-994-3682
Related Products | NSN 5985-00-994-3682
5985-00-994-4812, 5985-00-994-5217, 5985-00-994-6797, 5985-00-994-6809, 5985-00-994-7462
Technical Data | NSN 5985-00-994-3682
| Characteristic | Specifications |
|---|---|

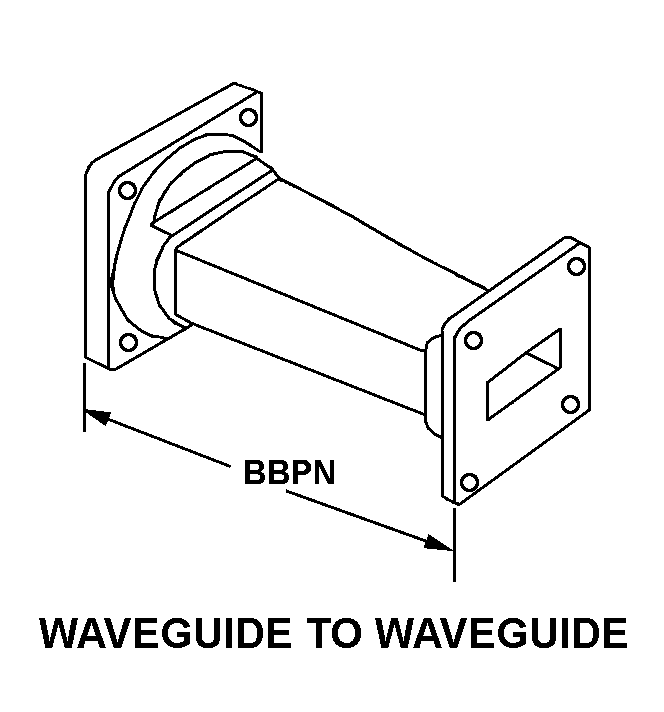

| STYLE DESIGNATOR | D1 WAVEGUIDE TO WAVEGUIDE |
| ADAPTER LENGTH | 3.750 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | A1 INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR |
| WAVEGUIDE OUTSIDE WIDTH | 1.246 INCHES MINIMUM AND 1.254 INCHES MAXIMUM |
| WAVEGUIDE INSIDE WIDTH | 1.118 INCHES MINIMUM AND 1.126 INCHES MAXIMUM |
| WAVEGUIDE INSIDE HEIGHT | 0.493 INCHES MINIMUM AND 0.501 INCHES MAXIMUM |
| WAVEGUIDE OUTSIDE HEIGHT | 0.621 INCHES MINIMUM AND 0.629 INCHES MAXIMUM |
| TUBING WALL CONSTRUCTION STYLE | J1 SEAMLESS SINGLE TUBING SEGMENT |
| MATERIAL | COPPER ALLOY OR ALUMINUM ALL TUBING SEGMENT AND FLANGE |
| SURFACE TREATMENT | CHROMATE ZINC AND ENAMEL ALL TUBING SEGMENT AND FLANGE OUTSIDE SURFACES |
| FLANGE QUANTITY | 2 |
| FLANGE STYLE | C28 COVER TYPE ALL FLANGES |
| FLANGE INSIDE WIDTH | 1.253 INCHES MINIMUM FIRST FLANGE 1.003 INCHES MINIMUM SECOND FLANGE |
| FLANGE INSIDE HEIGHT | 0.628 INCHES MINIMUM FIRST FLANGE 0.503 INCHES MINIMUM SECOND FLANGE |
| FLANGE OUTSIDE WIDTH | 1.860 INCHES MINIMUM AND 1.890 INCHES MAXIMUM FIRST FLANGE 1.610 INCHES MINIMUM AND 1.640 INCHES MAXIMUM SECOND FLANGE |
| FLANGE OUTSIDE HEIGHT | 1.860 INCHES MINIMUM AND 1.890 INCHES MAXIMUM FIRST FLANGE 1.610 INCHES MINIMUM AND 1.640 INCHES MAXIMUM SECOND FLANGE |
| FLANGE DEPTH | 0.423 INCHES MINIMUM AND 0.453 INCHES MAXIMUM ALL FLANGES |
| FLANGE CONNECTING FACILITY AND QUANTITY | 4 UNTHREADED HOLE ALL FLANGES ALL CONNECTION FACILITIES |
| FLANGE CONNECTING HOLE DIAMETER | 0.169 INCHES MINIMUM AND 0.172 INCHES MAXIMUM ALL FLANGES ALL CONNECTION FACILITIES |
| VOLTAGE STANDING WAVE RATIO | 1.08 |
| SPECIAL FEATURES | FREQUENCY RANGE 8.2 TO 12.4 KHZ; WAVEGUIDE SIZE TAPERES FROM RG-51/U TO RG-52/U |
| SPECIFICATION/STANDARD DATA | 18876-10667940 MANUFACTURERS SPECIFICATION CONTROL |
| III FSC APPLICATION DATA | ANTENNAS,WAVEGUIDES,AND RELATED EQUIPMENT |
Restrictions/Controls & Freight Information | NSN 5985-00-994-3682
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063520 | WAVEGUIDE IN BOXES/CRATES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
