NSN 5985-01-045-5198 205280P1, 20-5280P1, 3214409-002-101
Product Details | WAVEGUIDE SWITCH
5985-01-045-5198 An item specifically designed for mechanically or electronically positioning one or more waveguide sections so as to couple it or them to other sections in a waveguide system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Part Alternates: 205280P1, 20-5280P1, 3214409-002-101, 5985-01-045-5198, 01-045-5198, 3214409002101, 5985010455198, 010455198
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 03 AUG 1977 | 01-045-5198 | 05118 ( SWITCH, WAVEGUIDE ) |
Drawings & Photos | NSN 5985-01-045-5198
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-045-5198
Technical Data | NSN 5985-01-045-5198
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 9.6 GIGAHERTZ NOMINAL SINGLE FREQUENCY OPERATING |
| RF POWER HANDLING CAPABILITY | 100.0 KILOWATTS PEAK SINGLE |
| VOLTAGE STANDING WAVE RATIO | 1.15 SINGLE |
| INSERTION LOSS IN DECIBELS | 0.20 SINGLE |
| MINIMUM CROSSTALK RATING IN DECIBELS | 50.0 SINGLE |
| ACTUATOR OPERATING METHOD | RELAY |
| COUPLING POSITION QUANTITY | 4 |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, RECEPTACLE AND 4 RECTANGULAR FLANGE |

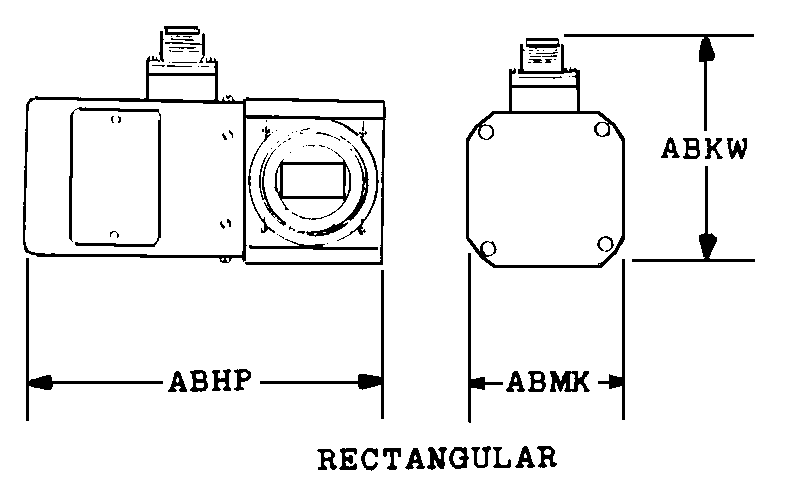

| BODY STYLE | 5C RECTANGULAR |
| OVERALL LENGTH | 3.812 INCHES MAXIMUM |
| OVERALL WIDTH | 1.870 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY BODY |
Restrictions/Controls & Freight Information | NSN 5985-01-045-5198
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | YD | Israel YE YF |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-01-045-5198
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
