Product Details | WAVEGUIDE ADAPTER
5985-01-051-0701 An item designed to establish the necessary accommodations to connect a waveguide to a coaxial line, or to connect two or more terminated waveguides whose physical design does not normally allow connection.
Part Alternates: 26987, 592R913H01, 5985-01-051-0701, 01-051-0701, 5985010510701, 010510701
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 NOV 1977 | 01-051-0701 | 00186 ( ADAPTER, WAVEGUIDE ) |
Drawings & Photos | NSN 5985-01-051-0701
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-051-0701
Technical Data | NSN 5985-01-051-0701
| Characteristic | Specifications |
|---|---|

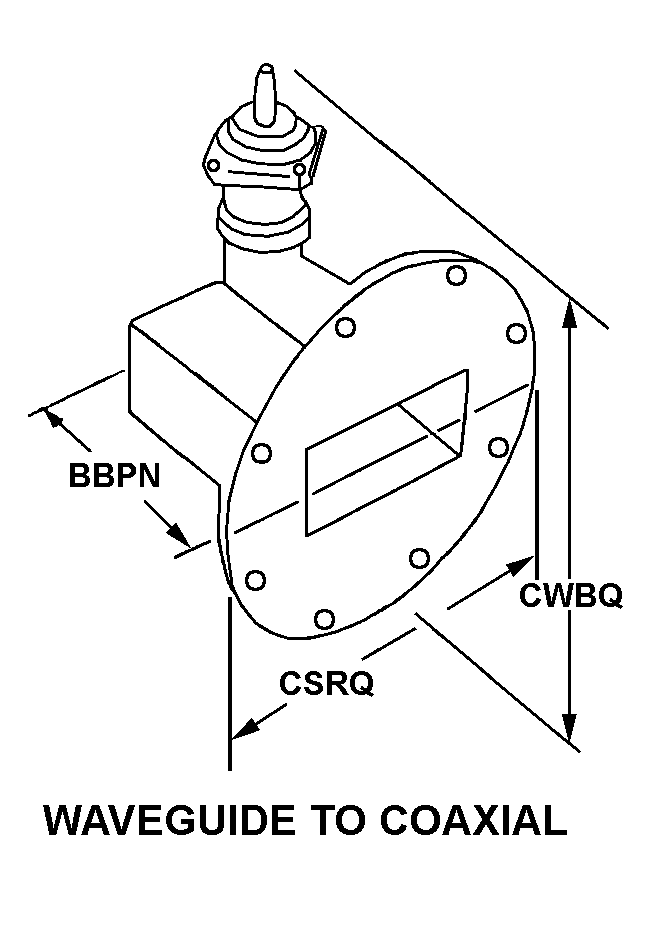

| STYLE DESIGNATOR | D7 WAVEGUIDE TO COAXIAL |
| ADAPTER LENGTH | 10.000 INCHES NOMINAL |
| ADAPTER DIAMETER | 9.030 INCHES NOMINAL |
| ADAPTER OVERALL HEIGHT | 8.510 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | A1 INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR |
| WAVEGUIDE OUTSIDE WIDTH | 6.750 INCHES NOMINAL |
| WAVEGUIDE INSIDE WIDTH | 6.500 INCHES NOMINAL |
| WAVEGUIDE INSIDE HEIGHT | 3.250 INCHES NOMINAL |
| WAVEGUIDE OUTSIDE HEIGHT | 3.500 INCHES NOMINAL |
| TUBING WALL CONSTRUCTION STYLE | J1 SEAMLESS SINGLE TUBING SEGMENT |
| FLANGE QUANTITY | 1 |
| FLANGE STYLE | C7 CONTACT TYPE SINGLE FLANGE |
| COAXIAL CONNECTOR SERIES DESIGNATION | EIA FLANGE,1.625 IN. DIA |
| MAXIMUM OPERATING PRESSURE | 20.0 POUNDS PER SQUARE INCH GAGE |
| VOLTAGE STANDING WAVE RATIO | 1.05 |
