NSN 5985-01-052-5179 1024647, 2116123, 01-052-5179
Product Details | WAVEGUIDE ADAPTER
5985-01-052-5179 An item designed to establish the necessary accommodations to connect a waveguide to a coaxial line, or to connect two or more terminated waveguides whose physical design does not normally allow connection.
Part Alternates: 1024647, 2116123, 5985-01-052-5179, 01-052-5179, 5985010525179, 010525179
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 DEC 1977 | 01-052-5179 | 00186 ( ADAPTER, WAVEGUIDE ) |
Drawings & Photos | NSN 5985-01-052-5179
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-052-5179
Related Products | NSN 5985-01-052-5179
Technical Data | NSN 5985-01-052-5179
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | D2 WAVEGUIDE TO WAVEGUIDE |
| ADAPTER LENGTH | 1.734 INCHES MINIMUM AND 1.766 INCHES MAXIMUM |

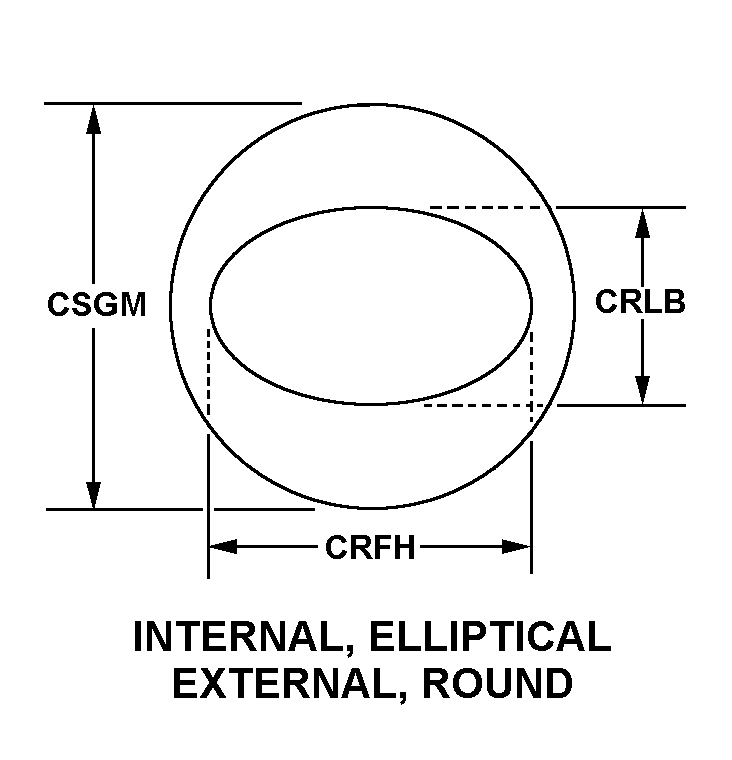

| CROSS-SECTIONAL SHAPE STYLE | A18 INTERNAL, ELLIPTICAL EXTERNAL, ROUND |
| WAVEGUIDE INSIDE WIDTH | 1.668 INCHES MINIMUM AND 1.672 INCHES MAXIMUM |
| WAVEGUIDE INSIDE HEIGHT | 1.127 INCHES MINIMUM AND 1.133 INCHES MAXIMUM |
| WAVEGUIDE OUTSIDE DIAMETER | 3.620 INCHES MINIMUM AND 3.630 INCHES MAXIMUM |
| TUBING WALL CONSTRUCTION STYLE | J1 SEAMLESS SINGLE TUBING SEGMENT |
| MATERIAL | ALUMINUM ALLOY 6061 SINGLE COUPLING |
| (NON-CORE DATA) MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-325 FED SPEC SINGLE MATERIAL RESPONSE SINGLE COUPLING |
| SURFACE TREATMENT | CHROMATE AND CHROMATE ZINC AND ENAMEL ALL COUPLING OUTSIDE SURFACES |
| (NON-CORE DATA) SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-E-15090 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE COUPLING OUTSIDE SURFACES |
| FLANGE QUANTITY | 2 |
| FLANGE CONNECTING FACILITY AND QUANTITY | 6 UNTHREADED HOLE SINGLE FLANGE FIRST CONNECTION FACILITY 8 THREADED HOLE SINGLE FLANGE SECOND CONNECTION FACILITY |
| FLANGE CONNECTING HOLE DIAMETER | 0.281 INCHES NOMINAL SINGLE FLANGE FIRST CONNECTION FACILITY |
| THREAD SERIES DESIGNATOR | UNC SINGLE FLANGE SECOND CONNECTION FACILITY |
| NOMINAL THREAD SIZE | 0.190 INCHES SINGLE FLANGE SECOND CONNECTION FACILITY |
| THREAD CLASS | 2B SINGLE FLANGE SECOND CONNECTION FACILITY |
| THREAD QUANTITY PER INCH | 24 SINGLE FLANGE SECOND CONNECTION FACILITY |
| THREAD DIRECTION | RIGHT-HAND SINGLE FLANGE SECOND CONNECTION FACILITY |
| III FSC APPLICATION DATA | ANTENNAS,WAVEGUIDES,AND RELATED EQUIPMENT |
