Product Details | WAVEGUIDE ASSEMBLY
5985-01-053-6552 An item consisting of one or more definite lengths of straight or formed, flexible or rigid, prefabricated hollow tubing of conductive material. The tubing has a predetermined cross section and is designed to guide or conduct high frequency electromagnetic energy through its interior. One or more ends are terminated. May include common mounting of a SWITCH, WAVE GUIDE, a DUMMY LOAD, ELECTRICAL and other components such as waveguide section, cable terminal chamber and the like. Excludes COUPLER, ROTARY, RADIO FREQUENCY; COUPLER, DIRECTIONAL; ADAPTER, WAVEGUIDE; and TUNER, WAVEGUIDE.
Part Alternates: 3068322, 306832-2, 5985-01-053-6552, 01-053-6552, 5985010536552, 010536552
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 JAN 1978 | 01-053-6552 | 00305 ( WAVEGUIDE ASSEMBLY ) |
Drawings & Photos | NSN 5985-01-053-6552
Cross Reference | NSN 5985-01-053-6552
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 306832-2 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5985-01-053-6552
Related Products | NSN 5985-01-053-6552
5985-01-053-6579, 5985-01-053-6657, 5985-01-053-6830, 5985-01-053-7575, 5985-01-053-7675
Technical Data | NSN 5985-01-053-6552
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B1 STRAIGHT TYPE |
| WAVEGUIDE LENGTH | 4.500 FEET NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | A1 INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR |
| WAVEGUIDE OUTSIDE WIDTH | 3.000 INCHES NOMINAL |
| WAVEGUIDE INSIDE WIDTH | 2.840 INCHES NOMINAL |
| WAVEGUIDE INSIDE HEIGHT | 1.340 INCHES NOMINAL |
| WAVEGUIDE OUTSIDE HEIGHT | 1.500 INCHES NOMINAL |
| FLEXIBILITY | RIGID ALL TUBING SEGMENT |
| TUBING WALL CONSTRUCTION STYLE | J1 SEAMLESS ALL TUBING SEGMENT |
| MATERIAL | ALUMINUM FIRST FLANGE ALUMINUM ALLOY 6061 ALL TUBING SEGMENT |
| (NON-CORE DATA) MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/11,T6 FED SPEC SINGLE MATERIAL RESPONSE ALL TUBING SEGMENT |
| FLANGE QUANTITY | 2 |

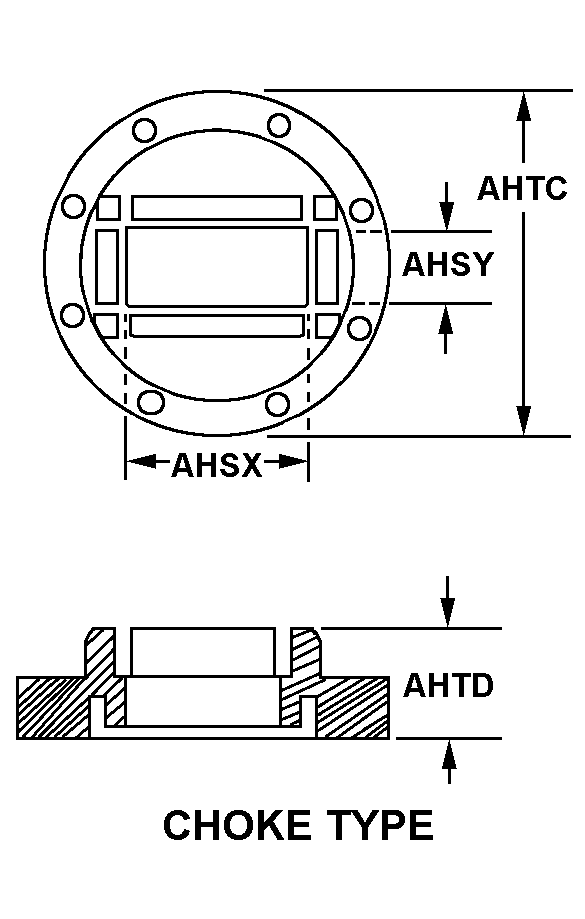

| FLANGE STYLE | C6 CHOKE TYPE FIRST FLANGE |
| FLANGE INSIDE WIDTH | 2.840 INCHES NOMINAL FIRST FLANGE |
| FLANGE INSIDE HEIGHT | 1.340 INCHES NOMINAL FIRST FLANGE |
| FLANGE OUTSIDE DIAMETER | 5.313 INCHES NOMINAL FIRST FLANGE |
| FLANGE DEPTH | 1.250 INCHES NOMINAL FIRST FLANGE |
| FLANGE CONNECTING FACILITY AND QUANTITY | 8 THREADED HOLE FIRST FLANGE SINGLE CONNECTION FACILITY |
| THREAD SERIES DESIGNATOR | UNC FIRST FLANGE SINGLE CONNECTION FACILITY |
| NOMINAL THREAD SIZE | 0.250 INCHES FIRST FLANGE SINGLE CONNECTION FACILITY |
| THREAD CLASS | 2B FIRST FLANGE SINGLE CONNECTION FACILITY |
| THREAD QUANTITY PER INCH | 20 FIRST FLANGE SINGLE CONNECTION FACILITY |
| THREAD DIRECTION | RIGHT-HAND FIRST FLANGE SINGLE CONNECTION FACILITY |
| (NON-CORE DATA) TUBING MANUFACTURER PART NUMBER | M85/1-042 ALL TUBING SEGMENT |
| (NON-CORE DATA) FLANGE MANUFACTURER PART NUMBER | M3922/61-1 FIRST FLANGE |
| MANUFACTURERS CODE | 96214 |
| DESIGN CONTROL REFERENCE | 306832-2 |
Restrictions/Controls & Freight Information | NSN 5985-01-053-6552
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063520 | WAVEGUIDE IN BOXES/CRATES SUB |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TA | Sacramento Air Logistics Center McClellan AFB, CA 95652-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-01-053-6552
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | IM | SX:GROUND NAVIGATION AIDS NAVAIDS PROJECTS, 404L TRAFFIC CONTROL APPROACH AND LANDING SYSTEM (TRACLS) |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
