NSN 5985-01-215-9404 A3046166, 01-215-9404, 012159404
Product Details | ANTENNA SUPPORT
5985-01-215-9404 An item which consists of a mechanical or structural part designed to overcome the force of gravity, but is not intended to be the principal sustaining member of an antenna.
Part Alternates: A3046166, 5985-01-215-9404, 01-215-9404, 5985012159404, 012159404
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-215-9404 | 02487 ( SUPPORT, ANTENNA ) |

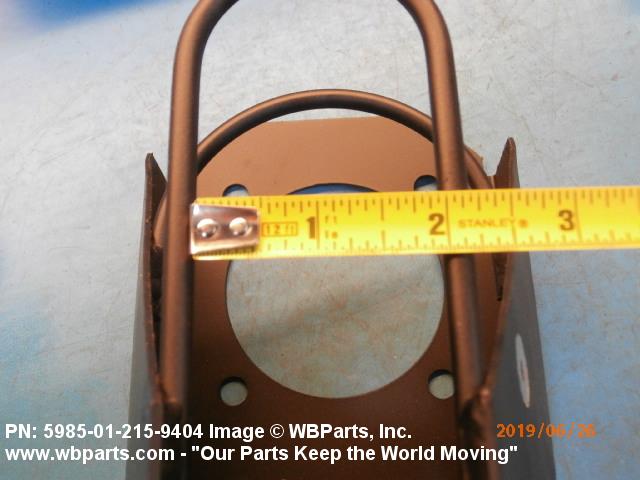

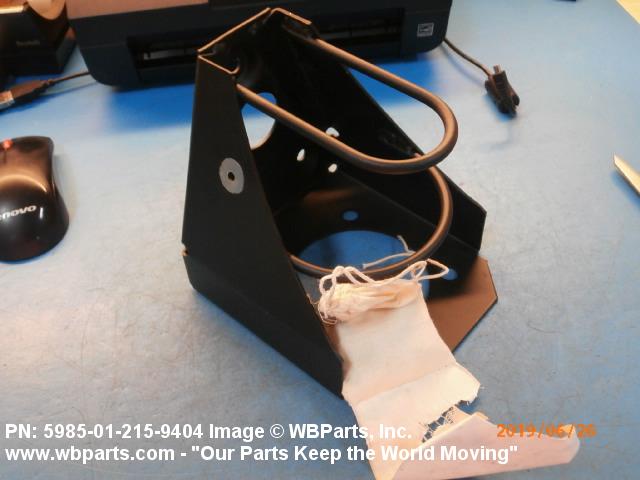

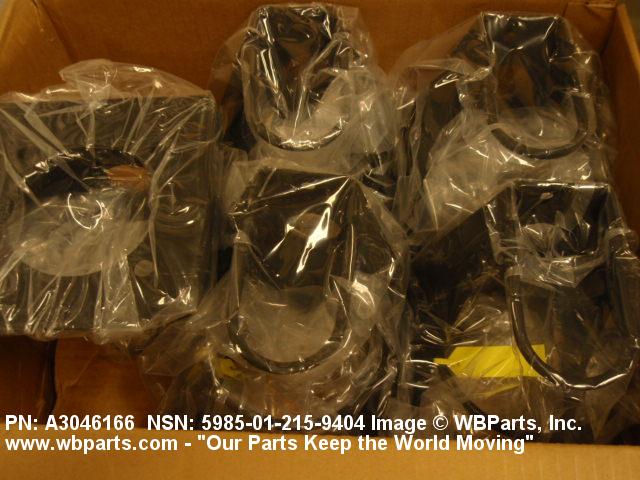

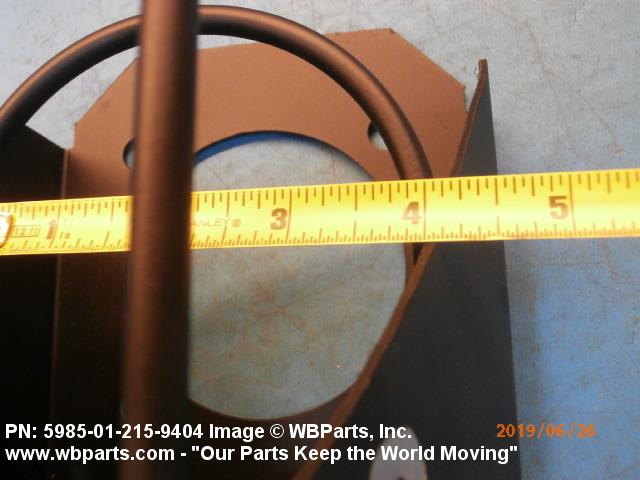

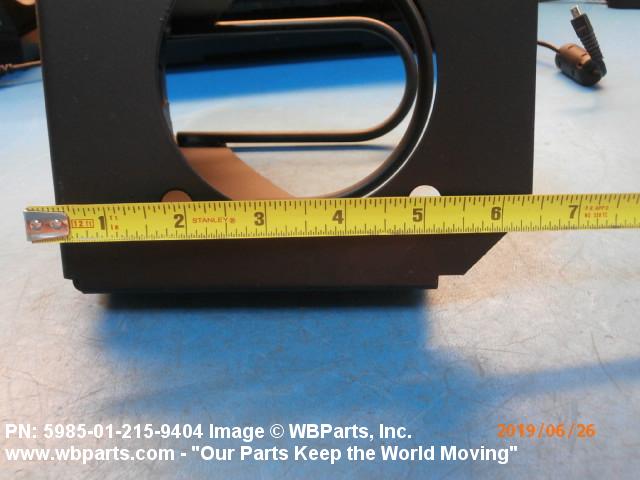

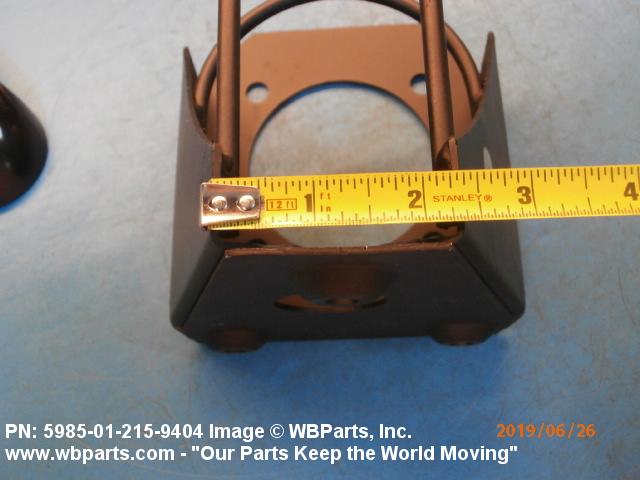

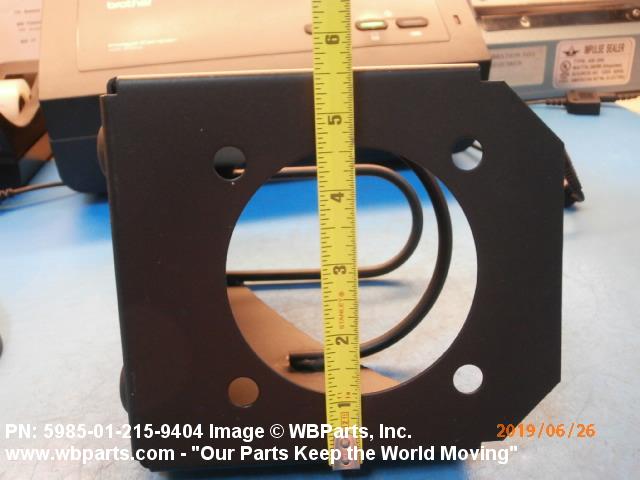

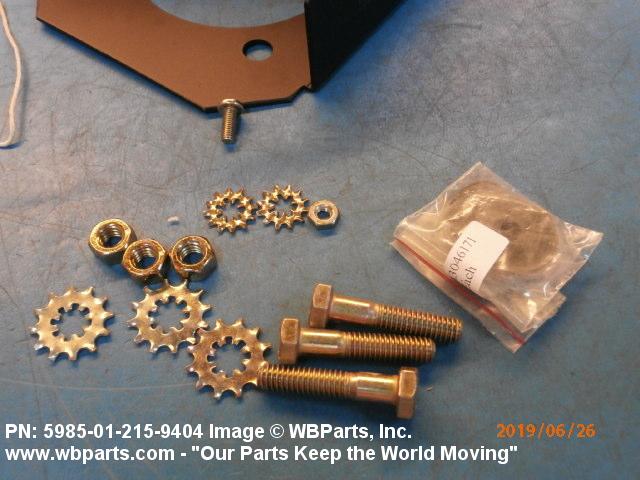

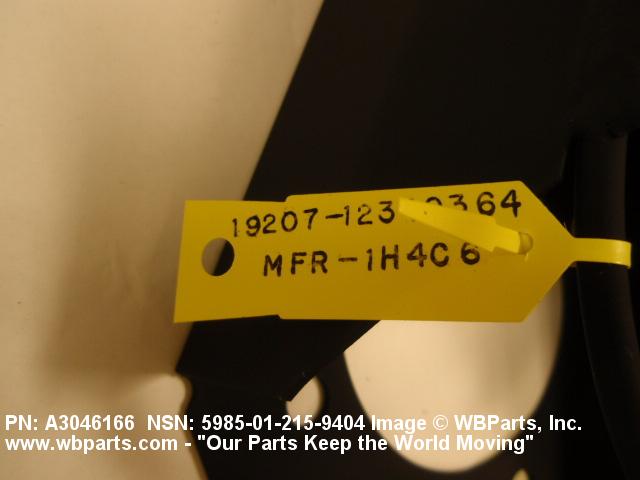

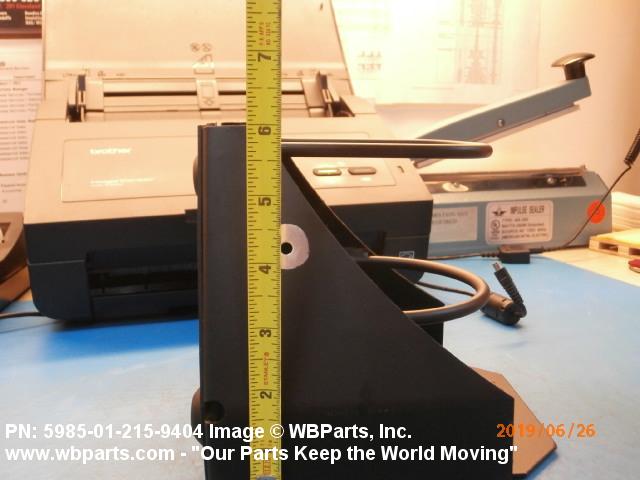

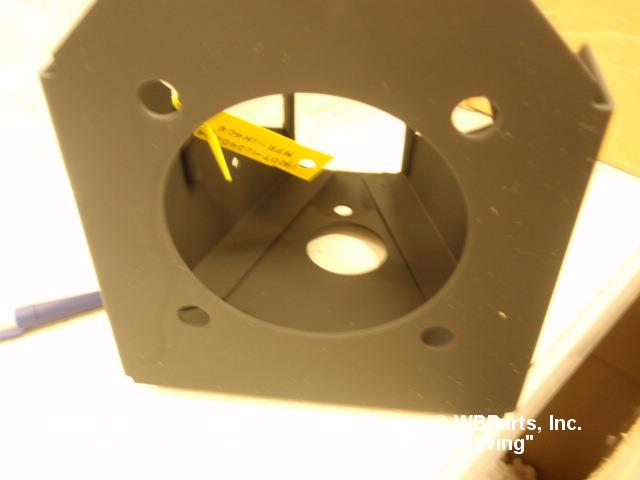

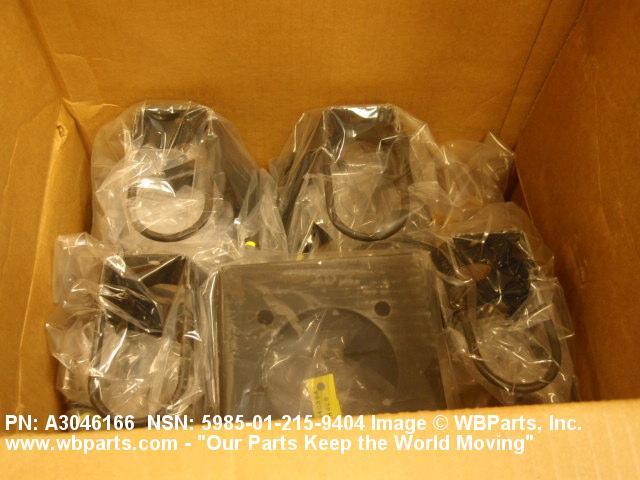

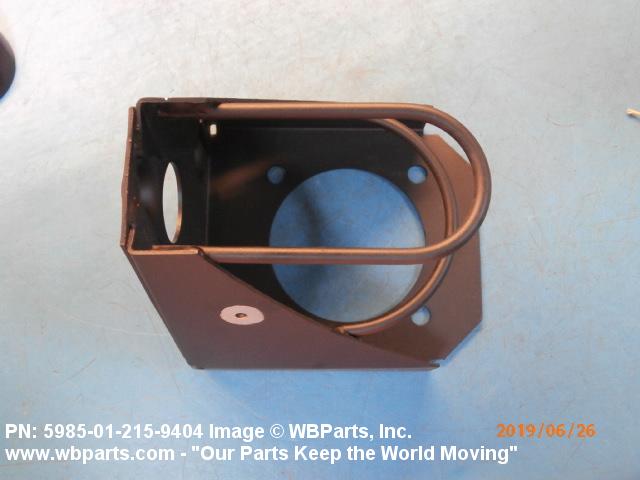

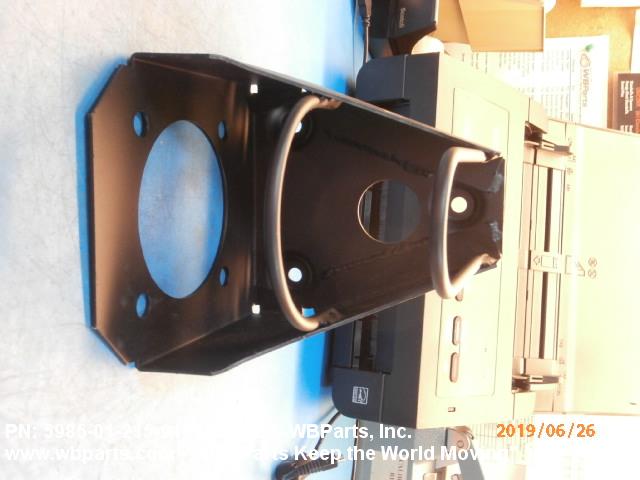

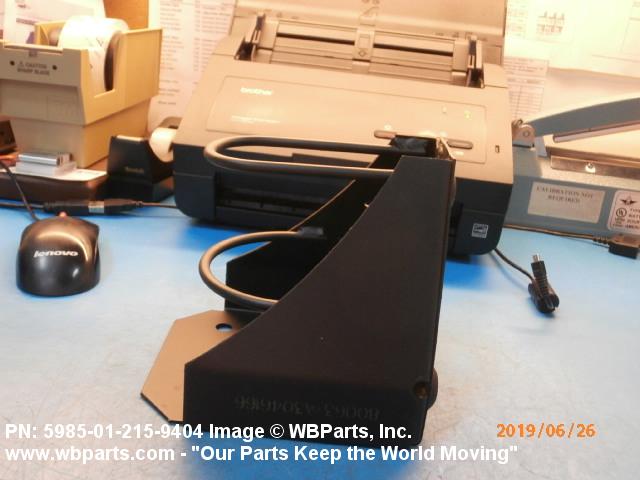

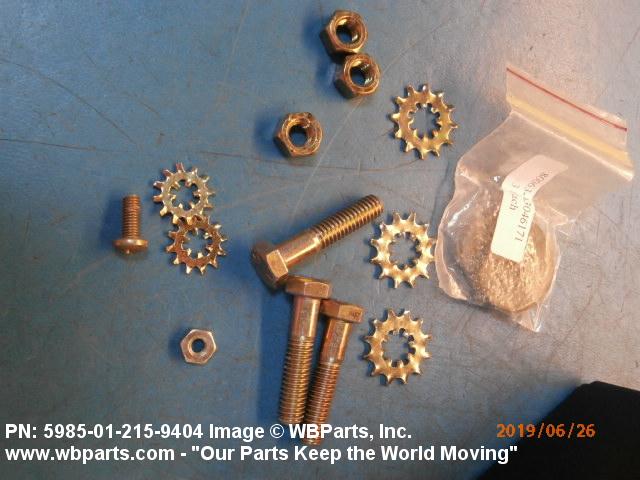

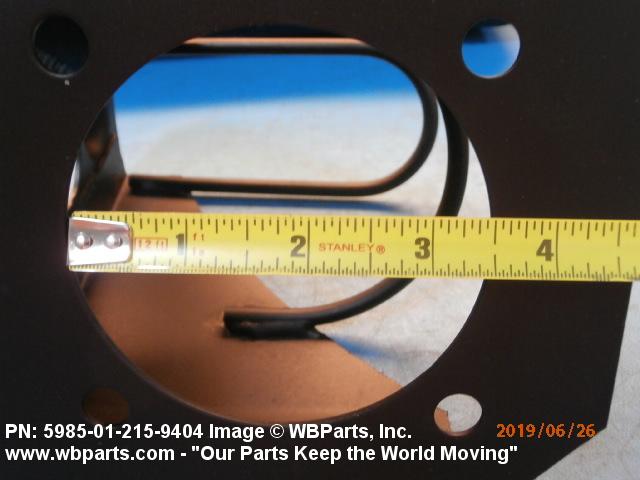

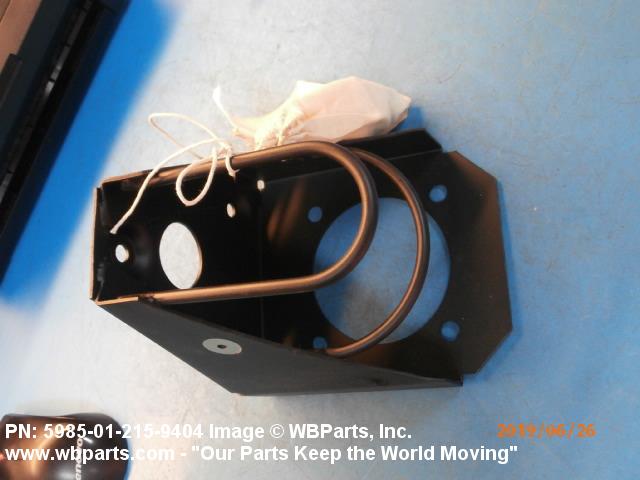

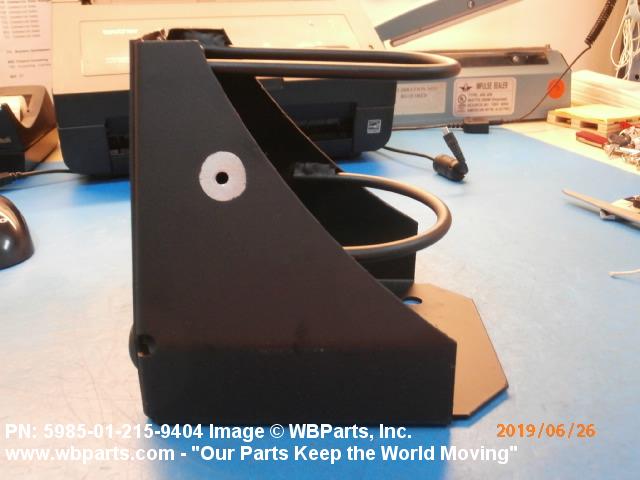

Drawings & Photos | NSN 5985-01-215-9404
Demand History | NSN 5985-01-215-9404
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-01-215-9404 | 2020-08-220 | 1 | US |
| 5985-01-215-9404 | 2019-06-158 | 2 | United States |
| 5985-01-215-9404 | 2017-02-59 | 2 | United States |
| 5985-01-215-9404 | 2013-05-127 | 2 | us |
| A3046166 | 2009-12-352 | 10 | United States |
| A3046166 | 2009-11-309 | 20 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-215-9404
Technical Data | NSN 5985-01-215-9404
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZED AND PAINTED |
| MOUNTING METHOD | UNTHREADED HOLES |
| MOUNTING FACILITY QUANTITY | 4 |
| MOUNTING HOLE TYPE | PLAIN |
| MOUNTING HOLE DIAMETER | 0.440 INCHES NOMINAL |
| BASIC SHAPE STYLE | 12A IRREGULAR |
| OVERALL LENGTH | 6.440 INCHES NOMINAL |
| OVERALL HEIGHT | 5.870 INCHES NOMINAL |
| OVERALL WIDTH | 5.480 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5985-01-215-9404
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
