NSN 5985-01-283-1283 TS0306, 4193766, 419376-6
Product Details | FIXED ATTENUATOR
5985-01-283-1283 A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match.
Part Alternates: TS0306, 4193766, 419376-6, 5985-01-283-1283, 01-283-1283, 5985012831283, 012831283
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 JUL 1988 | 01-283-1283 | 14224 ( ATTENUATOR, FIXED ) |
Drawings & Photos | NSN 5985-01-283-1283
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-283-1283
Technical Data | NSN 5985-01-283-1283
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| INPUT IMPEDANCE RATING IN OHMS | 50.0 |
| OUTPUT IMPEDANCE RATING IN OHMS | 50.0 |
| FREQUENCY RANGE | 0.000 HERTZ MINIMUM AND 12.000 GIGAHERTZ MAXIMUM |
| VOLTAGE STANDING WAVE RATIO | 1.30 |
| VOLTAGE STANDING WAVE RATIO FREQUENCY RANGE | 0.0 TO 12.0 GIGAHERTZ |
| RF SIGNAL ATTENUATION IN DECIBELS | 6.0 |
| ATTENUATION ACCURACY IN DECIBELS | -0.50 TO 0.50 |
| ATTENUATION ACCURACY REFERENCE FREQUENCY | 18.0 GIGAHERTZ |
| FREQUENCY SENSITIVITY ATTENUATION IN DECIBELS | NOT RATED |
| POWER RATING | 0.5 WATTS AVERAGE |
| OPERATING TEMP RANGE | -55.0 TO 125.0 DEG CELSIUS |
| TEMPERATURE SENSITIVITY ATTENUATION IN DECIBELS | NOT RATED |

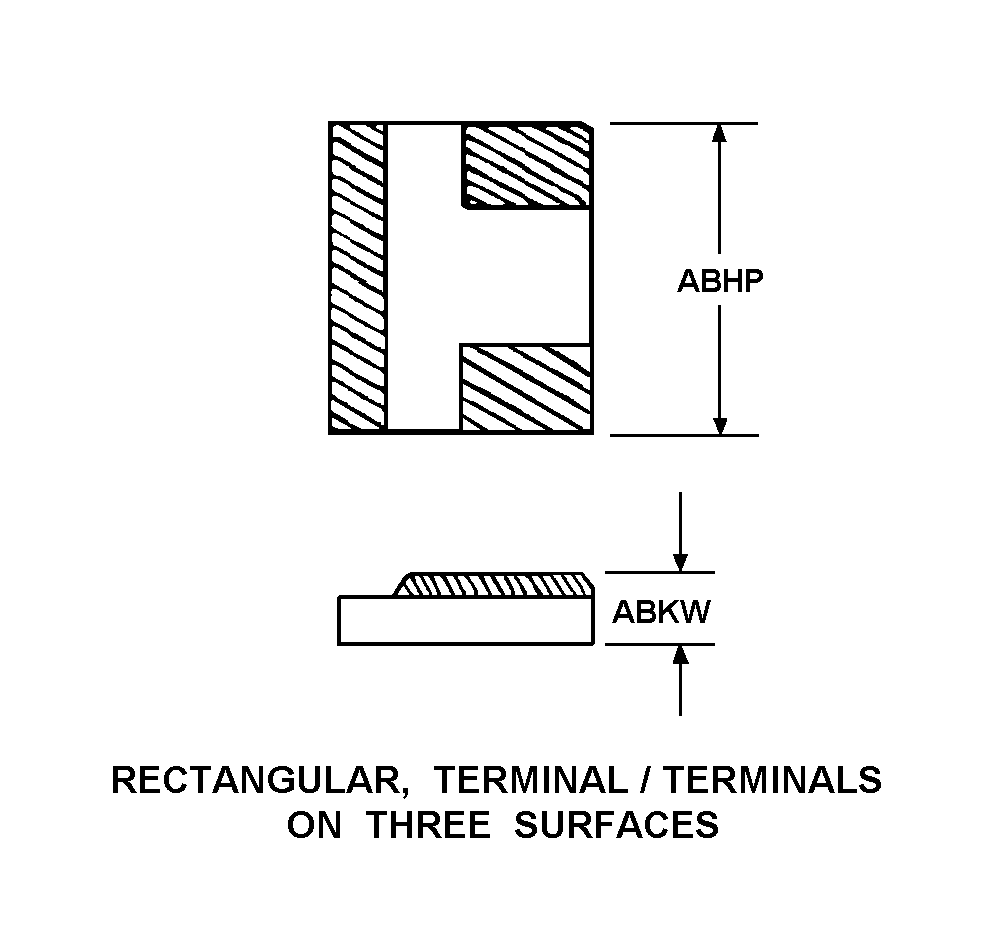

| BODY STYLE | 26B RECTANGULAR TERMINAL/TERMINALS ON THREE SURFACES |
| OVERALL LENGTH | 0.137 INCHES MINIMUM AND 0.157 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.030 INCHES MAXIMUM |
| OVERALL WIDTH | 0.112 INCHES MINIMUM AND 0.132 INCHES MAXIMUM |
| BODY MATERIAL | PLASTIC, EPOXY RESIN |
| BODY SURFACE TREATMENT | PASSIVATED |
| TERMINAL TYPE AND QUANTITY | 3 SURFACE CONTACT |
| MOUNTING METHOD | TERMINAL |
| III TERMINAL MATERIAL | ANY ACCEPTABLE |
| III TERMINAL SURFACE TREATMENT | GOLD PLATED AND PLATINUM |
| III PRECIOUS MATERIAL | GOLD AND PLATINUM |
| III FSC APPLICATION DATA | ANTENNAS,WAVEGUIDES,AND RELATED EQUIPMENT |
Restrictions/Controls & Freight Information | NSN 5985-01-283-1283
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | C | Item contains two or more precious metals |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 060535 | AERIAL/ANTENNAS DIRECTIONAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
