NSN 5985-01-320-0956 G2251512, G225151-2 , T170S-1.25
Product Details | WAVEGUIDE ASSEMBLY
5985-01-320-0956 An item consisting of one or more definite lengths of straight or formed, flexible or rigid, prefabricated hollow tubing of conductive material. The tubing has a predetermined cross section and is designed to guide or conduct high frequency electromagnetic energy through its interior. One or more ends are terminated. May include common mounting of a SWITCH, WAVE GUIDE, a DUMMY LOAD, ELECTRICAL and other components such as waveguide section, cable terminal chamber and the like. Excludes COUPLER, ROTARY, RADIO FREQUENCY; COUPLER, DIRECTIONAL; ADAPTER, WAVEGUIDE; and TUNER, WAVEGUIDE.
Part Alternates: G2251512, G225151-2 , T170S-1.25, T170S125, TS22002, 232468, 5985-01-320-0956, 01-320-0956, 5985013200956, 013200956
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 MAY 1990 | 01-320-0956 | 00305 ( WAVEGUIDE ASSEMBLY ) |

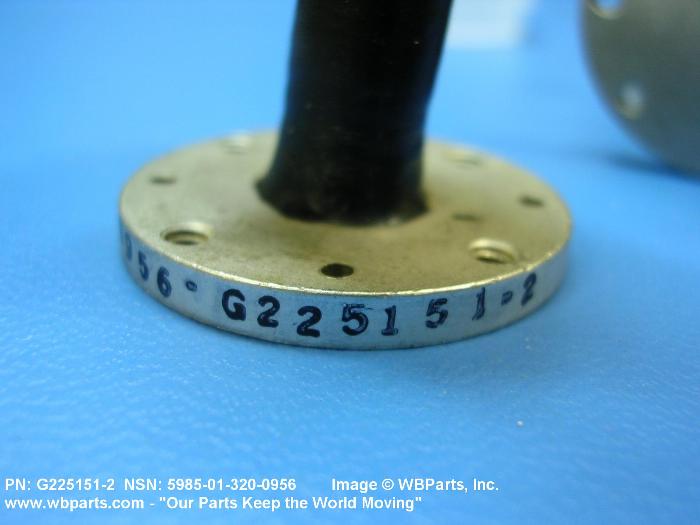

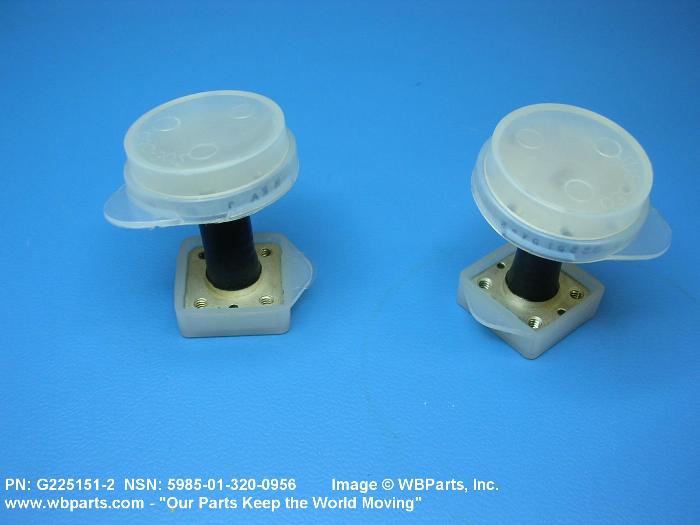

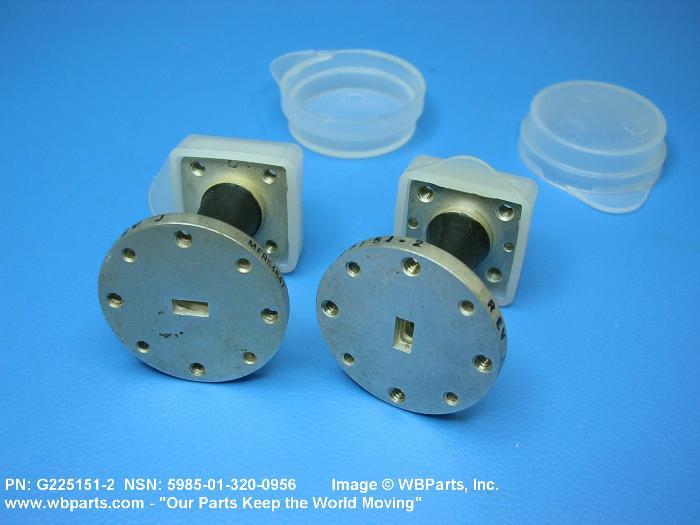

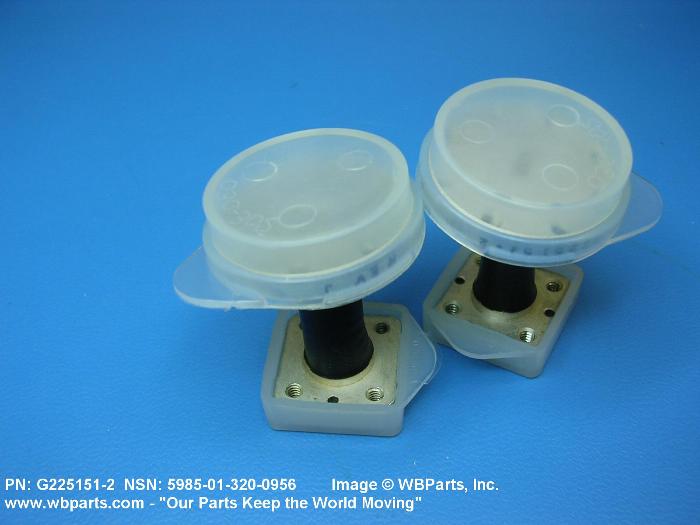

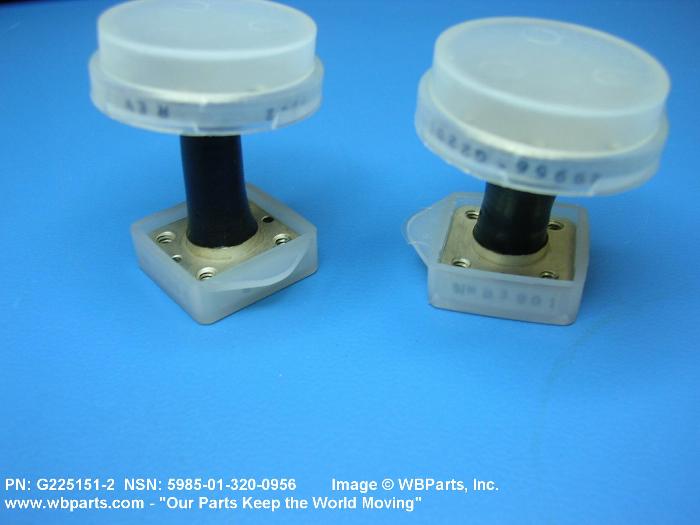

Drawings & Photos | NSN 5985-01-320-0956
Demand History | NSN 5985-01-320-0956
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 232468 | 2022-09-250 | 6 | DIBBS |
| G225151-2 | 2022-09-250 | 6 | DIBBS |
| T170S-1.25 | 2022-09-250 | 6 | DIBBS |
| TS22002 | 2022-09-250 | 6 | DIBBS |
| 5985-01-320-0956 | 2012-09-268 | 7 | DIBBS |
| 5985-01-320-0956 | 2012-06-156 | 10 | DIBBS |
| 5985-01-320-0956 | 2011-07-202 | 7 | DIBBS |
| 5985-01-320-0956 | 2010-11-334 | 5 | DIBBS |
| G2251512 | 2008-06-158 | 5 | United States |
| G2251512 | 2008-05-149 | 5 | United States |
Cross Reference | NSN 5985-01-320-0956
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-320-0956
Related Products | NSN 5985-01-320-0956
Technical Data | NSN 5985-01-320-0956
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B1 STRAIGHT TYPE |
| WAVEGUIDE LENGTH | 1.250 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | A1 INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR |
| WAVEGUIDE INSIDE WIDTH | 0.2225 INCHES MINIMUM AND 0.2255 INCHES MAXIMUM |
| WAVEGUIDE INSIDE HEIGHT | 0.1105 INCHES MINIMUM AND 0.1135 INCHES MAXIMUM |
| FLEXIBILITY | FLEXIBLE SINGLE TUBING SEGMENT |
| TUBING WALL CONSTRUCTION STYLE | J9 CORRUGATED SINGLE TUBING SEGMENT |
| TUBING TWIST TYPE | TWISTABLE SINGLE TUBING SEGMENT |
| FLANGE QUANTITY | 2 |
| FLANGE STYLE | C25 COVER TYPE ALL FLANGES |
| FLANGE OUTSIDE DIAMETER | 0.123 INCHES MINIMUM AND 0.125 INCHES MAXIMUM ALL FLANGES |
| FLANGE CONNECTING FACILITY AND QUANTITY | 4 THREADED HOLE ALL FLANGES FIRST CONNECTION FACILITY 4 UNTHREADED HOLE ALL FLANGES SECOND CONNECTION FACILITY |
| FLANGE CONNECTING HOLE DIAMETER | 0.067 INCHES NOMINAL ALL FLANGES SECOND CONNECTION FACILITY |
| THREAD SERIES DESIGNATOR | UNC ALL FLANGES FIRST CONNECTION FACILITY |
| NOMINAL THREAD SIZE | 0.112 INCHES ALL FLANGES FIRST CONNECTION FACILITY |
| THREAD CLASS | 2B ALL FLANGES FIRST CONNECTION FACILITY |
| THREAD DIRECTION | RIGHT-HAND ALL FLANGES FIRST CONNECTION FACILITY |
| III END ITEM IDENTIFICATION | AN/USC-38 SATELLITE COMMUNICATIONS TERMINAL |
| III FSC APPLICATION DATA | ANTENNAS,WAVEGUIDES,AND RELATED EQUIP. |
Restrictions/Controls & Freight Information | NSN 5985-01-320-0956
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063520 | WAVEGUIDE IN BOXES/CRATES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-01-320-0956
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
