Product Details | WAVEGUIDE ADAPTER
5985-01-342-8928 An item designed to establish the necessary accommodations to connect a waveguide to a coaxial line, or to connect two or more terminated waveguides whose physical design does not normally allow connection.
Part Alternates: M22641/23-24, M226412324, MIL-A-22641/23, MILA2264123, 5985-01-342-8928, 01-342-8928, 5985013428928, 013428928
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 31 JUL 1991 | 01-342-8928 | 00186 ( ADAPTER, WAVEGUIDE ) |
Drawings & Photos | NSN 5985-01-342-8928
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5985-01-342-8928
Related Products | NSN 5985-01-342-8928
5985-01-342-8931, 5985-01-342-8932, 5985-01-342-8966, 5985-01-342-8982, 5985-01-342-9249
Technical Data | NSN 5985-01-342-8928
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | D9 WAVEGUIDE TO COAXIAL |
| ADAPTER LENGTH | 1.300 INCHES MAXIMUM |
| ADAPTER HEIGHT | 1.360 INCHES MINIMUM AND 1.390 INCHES MAXIMUM |
| ADAPTER OVERALL HEIGHT | 1.7475 INCHES MAXIMUM |
| ADAPTER OVERALL WIDTH | 1.360 INCHES MINIMUM AND 1.390 INCHES MAXIMUM |
| CROSS-SECTIONAL SHAPE STYLE | A2 INTERNAL, RECTANGULAR DOUBLE RIDGED EXTERNAL, RECTANGULAR |
| WAVEGUIDE OUTSIDE WIDTH | 0.788 INCHES MINIMUM AND 0.794 INCHES MAXIMUM |
| WAVEGUIDE INSIDE WIDTH | 0.688 INCHES MINIMUM AND 0.694 INCHES MAXIMUM |
| WAVEGUIDE INSIDE HEIGHT | 0.318 INCHES MINIMUM AND 0.324 INCHES MAXIMUM |
| WAVEGUIDE OUTSIDE HEIGHT | 0.418 INCHES MINIMUM AND 0.424 INCHES MAXIMUM |
| TUBING WALL CONSTRUCTION STYLE | J1 SEAMLESS SINGLE TUBING SEGMENT |
| MATERIAL | ALUMINUM ALLOY SINGLE TUBING SEGMENT AND FLANGE |
| FLANGE QUANTITY | 1 |

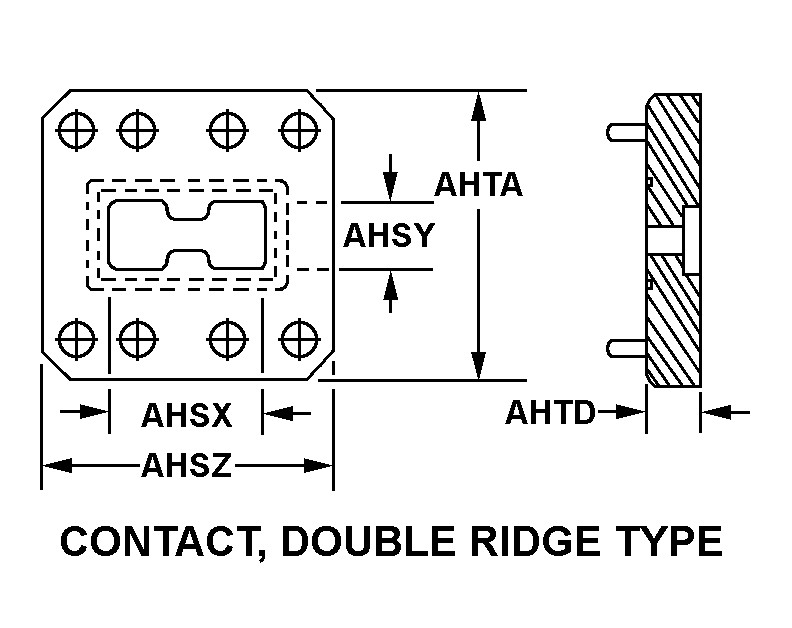

| FLANGE STYLE | C22A CONTACT, DOUBLE RIDGE TYPE SINGLE FLANGE |
| FLANGE INSIDE WIDTH | 0.688 INCHES MINIMUM AND 0.694 INCHES MAXIMUM SINGLE FLANGE |
| FLANGE INSIDE HEIGHT | 0.318 INCHES MINIMUM AND 0.322 INCHES MAXIMUM SINGLE FLANGE |
| FLANGE OUTSIDE WIDTH | 1.360 INCHES MINIMUM AND 1.390 INCHES MAXIMUM SINGLE FLANGE |
| FLANGE OUTSIDE HEIGHT | 1.360 INCHES MINIMUM AND 1.390 INCHES MAXIMUM SINGLE FLANGE |
| FLANGE DEPTH | 0.235 INCHES MINIMUM AND 0.265 INCHES MAXIMUM SINGLE FLANGE |
| FLANGE CONNECTING FACILITY AND QUANTITY | 4 THREADED HOLE SINGLE FLANGE FIRST CONNECTION FACILITY 2 UNTHREADED HOLE SINGLE FLANGE SECOND CONNECTION FACILITY 2 UNTHREADED HOLE SINGLE FLANGE THIRD CONNECTION FACILITY |
| FLANGE CONNECTING HOLE DIAMETER | 0.0960 INCHES MINIMUM AND 0.0965 INCHES MAXIMUM SINGLE FLANGE SECOND CONNECTION FACILITY 0.0937 INCHES MINIMUM AND 0.0939 INCHES MAXIMUM SINGLE FLANGE THIRD CONNECTION FACILITY |
| THREAD SERIES DESIGNATOR | UNC SINGLE FLANGE FIRST CONNECTION FACILITY |
| NOMINAL THREAD SIZE | 0.138 INCHES SINGLE FLANGE FIRST CONNECTION FACILITY |
| THREAD CLASS | 2B SINGLE FLANGE FIRST CONNECTION FACILITY |
| THREAD DIRECTION | RIGHT-HAND SINGLE FLANGE FIRST CONNECTION FACILITY |
| COAXIAL CONNECTOR SERIES DESIGNATION | N |
| CONNECTOR END DESIGN | FEMALE |
| INSERTION LOSS IN DECIBELS | 0.10 |
| VOLTAGE STANDING WAVE RATIO | 1.30 |
| SPECIAL FEATURES | FREQUENCY RANGE 7.5 TO 18.0 GHZ |
