Product Details | VARIABLE ATTENUATOR
5985-01-414-6951 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Part Alternates: 33323KA, 8371160014, 83711-60014, 5985-01-414-6951, 01-414-6951, 5985014146951, 014146951
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13-JUN-95 | 01-414-6951 | 00838 ( ATTENUATOR, VARIABLE ) |

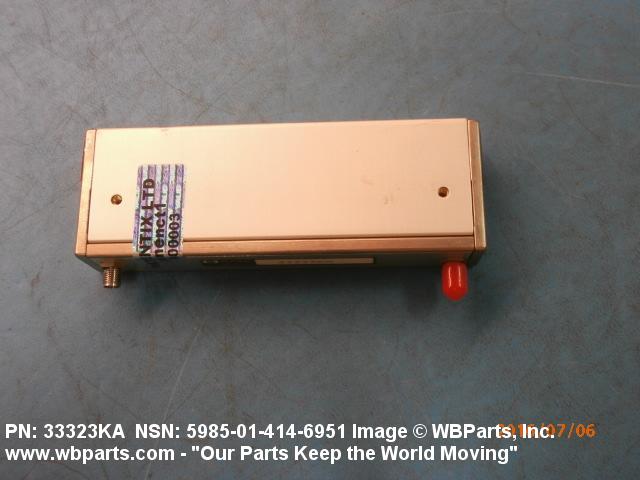

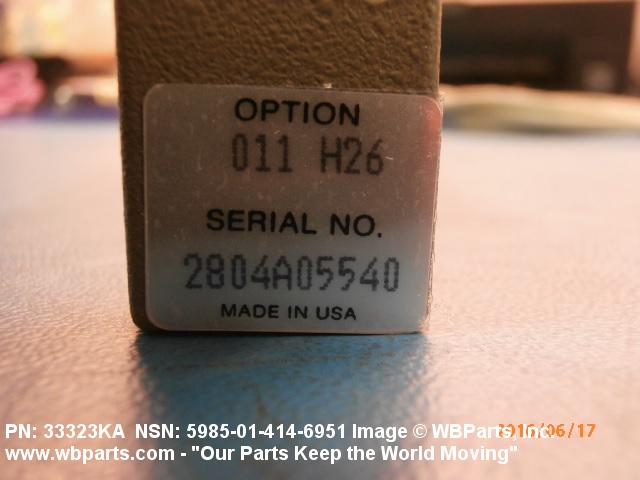

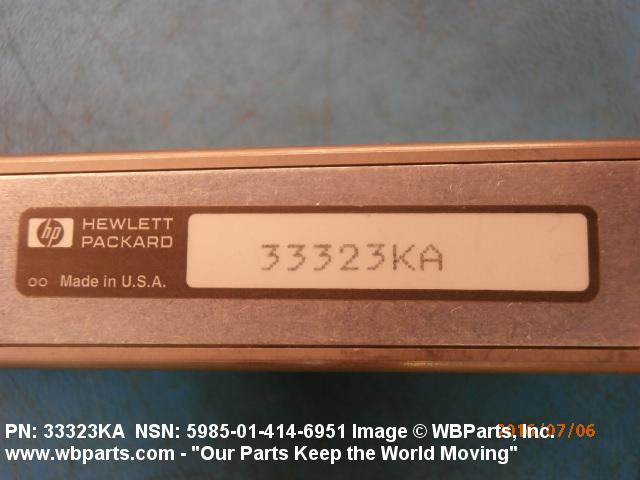

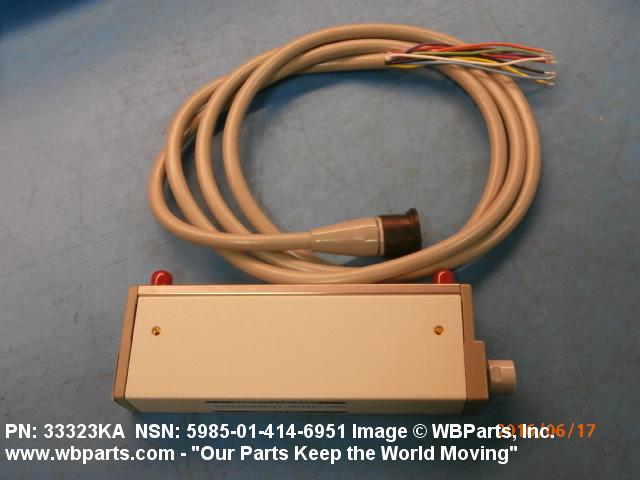

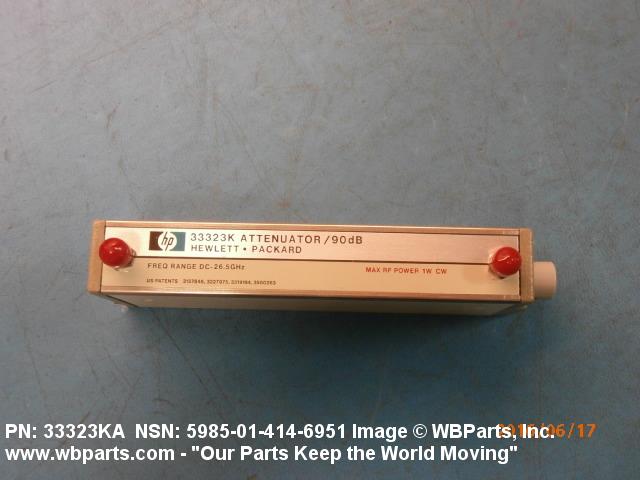

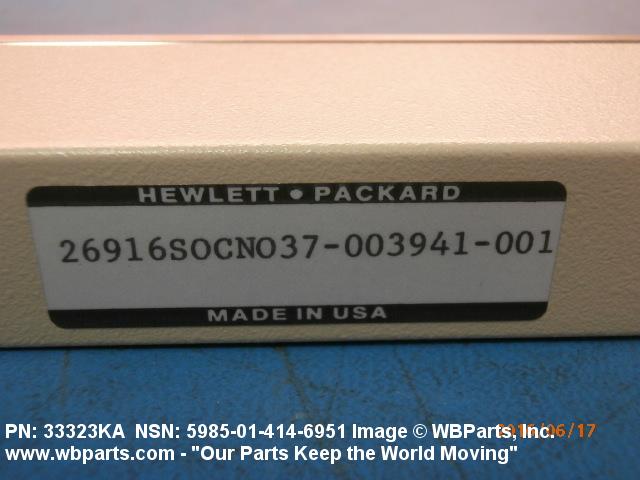

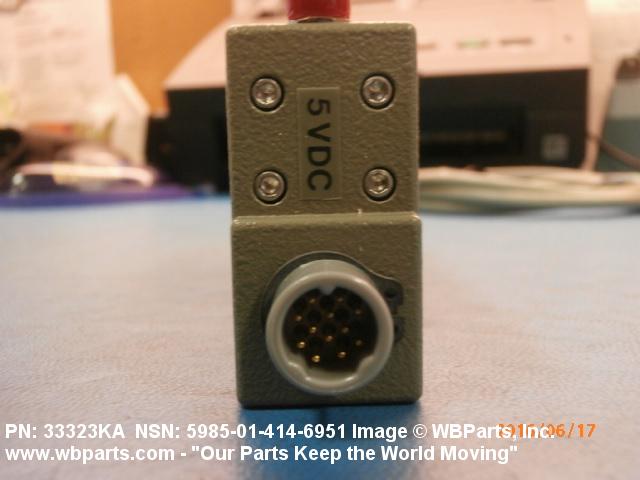

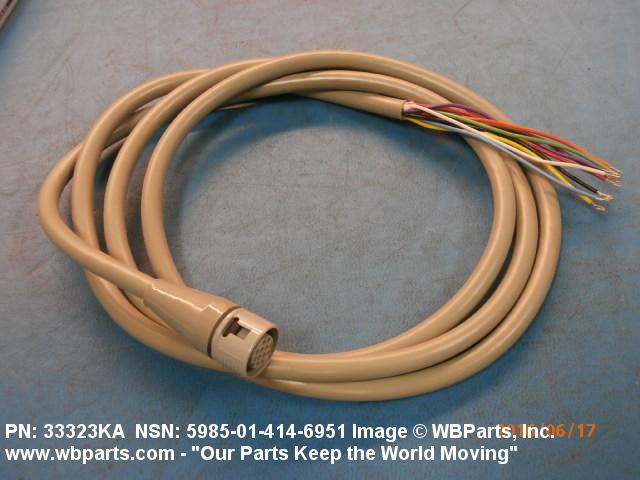

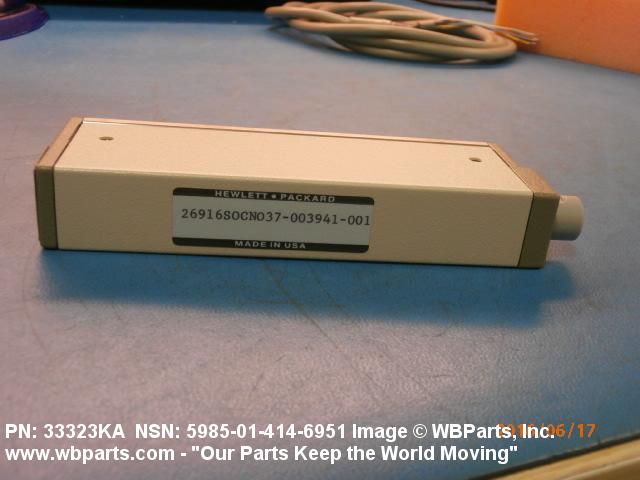

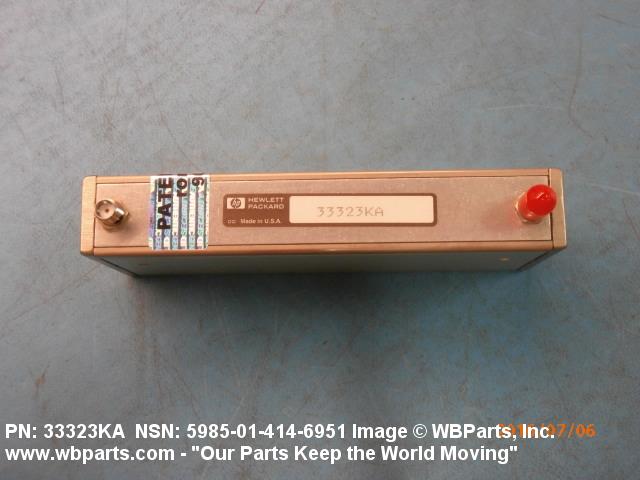

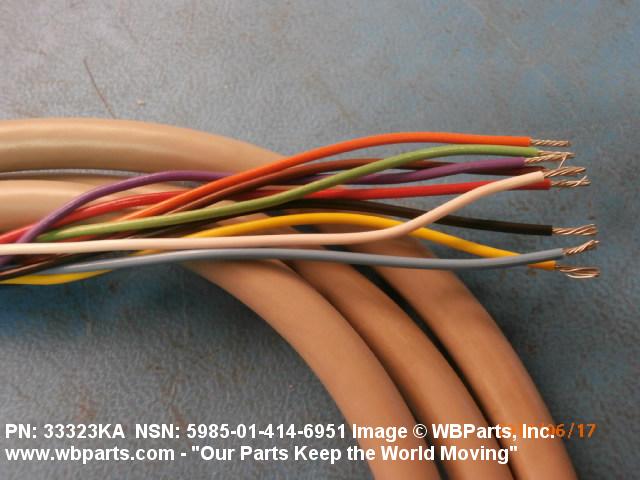

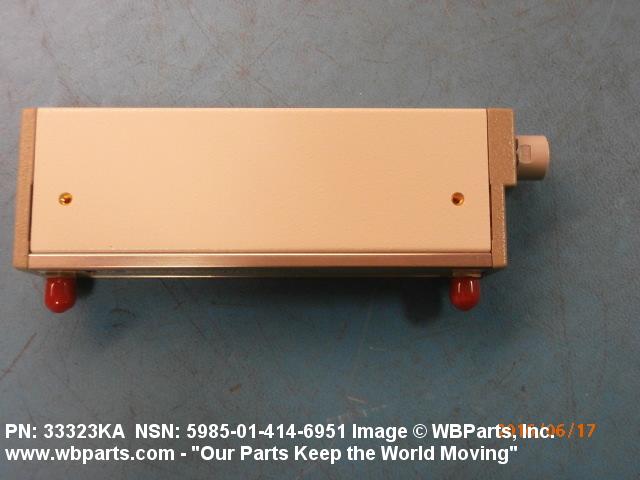

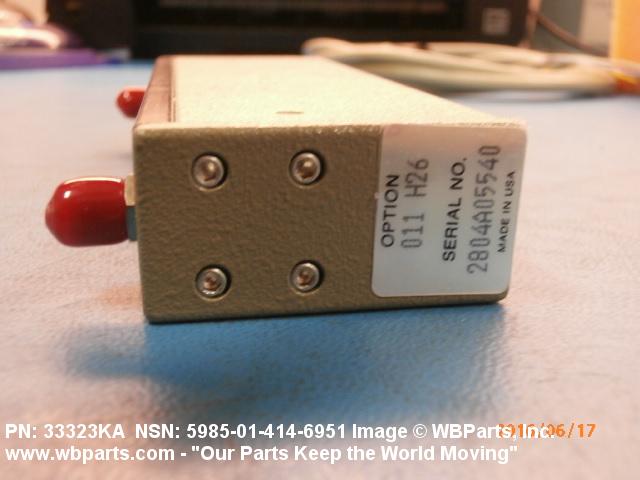

Drawings & Photos | NSN 5985-01-414-6951
Demand History | NSN 5985-01-414-6951
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-01-414-6951 | 2016-06-06 | 1 | us |
| 5985-01-414-6951 | 2016-06-03 | 1 | US |
| 83711-60014 | 2013-11-15 | 1 | United States |
| 5985-01-414-6951 | 2011-08-25 | 1 | DIBBS |
| 5985-01-414-6951 | 2009-06-12 | 1 | US |
| 5985-01-414-6951 | 2009-03-12 | 1 | DIBBS |
| 5985-01-414-6951 | 2008-10-02 | 10 | us |
| 5985-01-414-6951 | 2008-09-30 | 10 | Canada |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5985-01-414-6951
5985-01-414-6958, 5985-01-414-6960, 5985-01-414-7275, 5985-01-414-7279, 5985-01-414-7473
Technical Data | NSN 5985-01-414-6951
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |

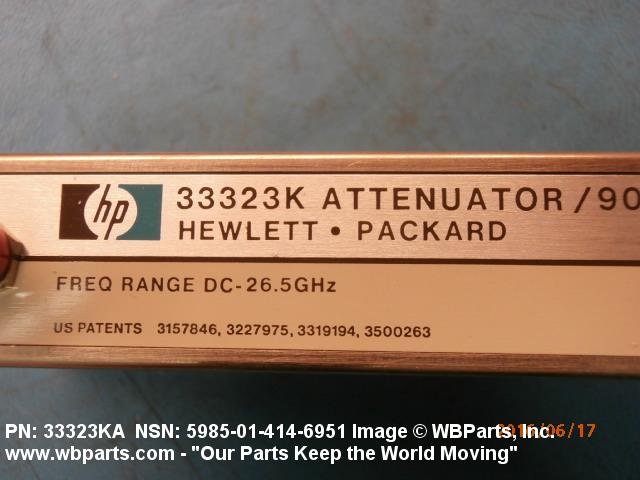

| FREQUENCY RANGE | 0.000 HERTZ MINIMUM AND 20.000 GIGAHERTZ MAXIMUM |
| VOLTAGE STANDING WAVE RATIO | 1.25 |
| POWER RATING | 1.0 WATTS AVERAGE |
| BODY STYLE | 41A IRREGULAR |
| OVERALL LENGTH | 5.062 INCHES NOMINAL |
| OVERALL HEIGHT | 1.000 INCHES NOMINAL |
| OVERALL WIDTH | 2.062 INCHES NOMINAL |
| ADJUSTMENT DEVICE TYPE AND QUANTITY | 1 ELECTRONIC, PROGRAMMABLE |

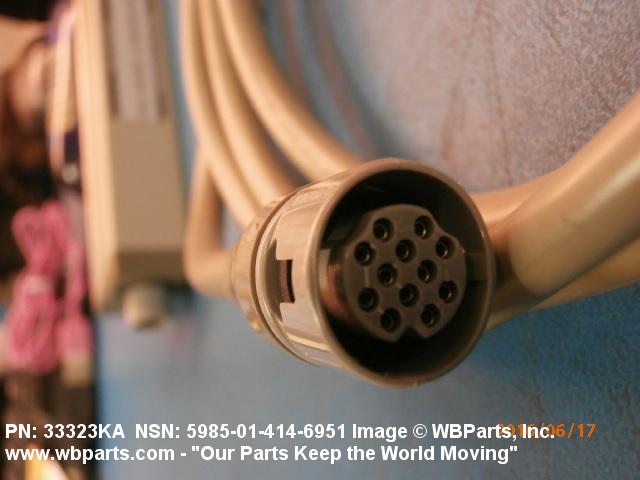

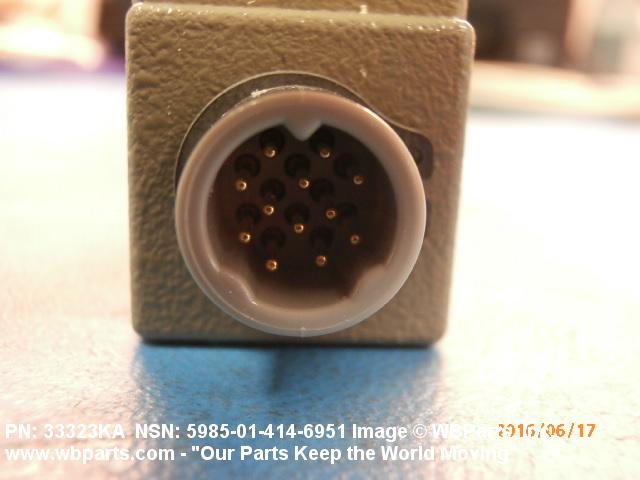

| TERMINAL TYPE AND QUANTITY | 2 CONNECTOR, COAXIAL, FEMALE AND 1 CONNECTOR, RECEPTACLE |

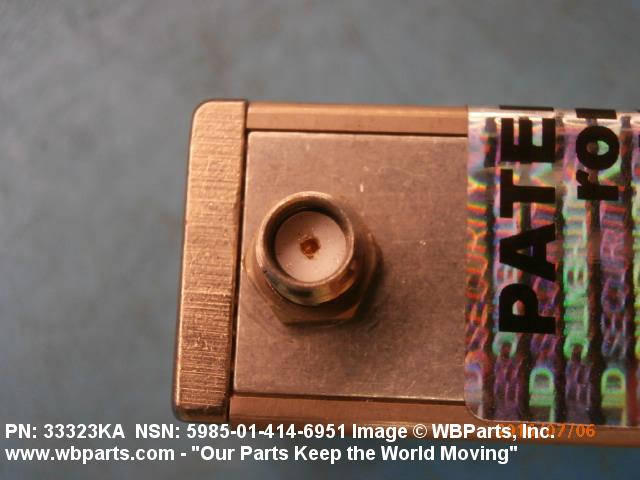

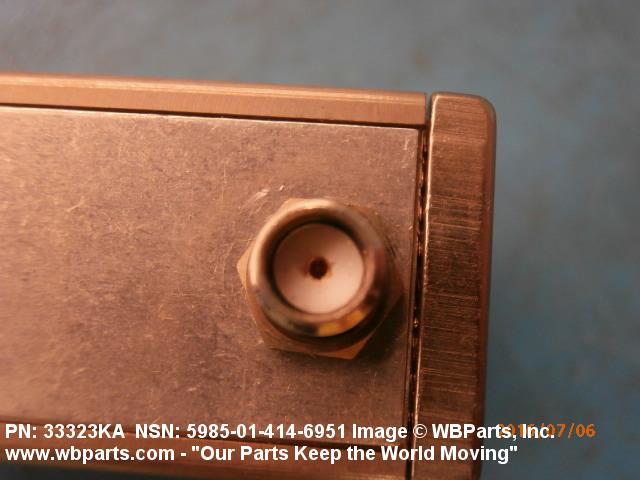

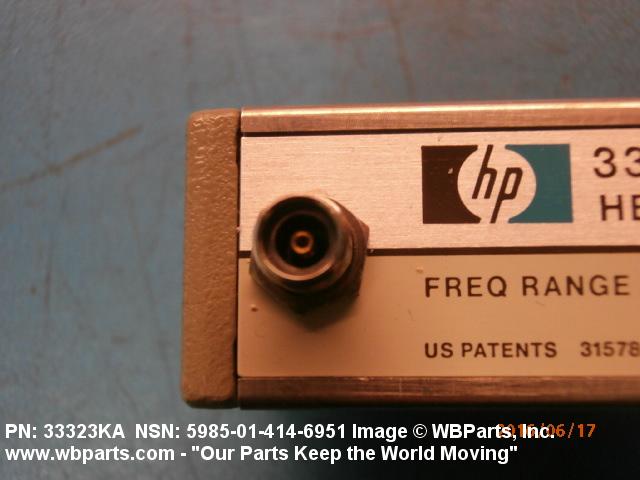

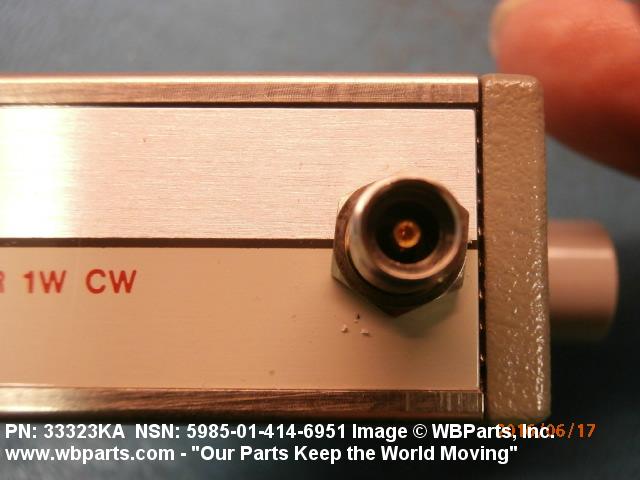

| COAXIAL CONNECTOR SERIES DESIGNATION | SMA |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED HOLE |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNC |
| MOUNTING FACILITY NOMINAL SCREW THREAD DIAMETER | 0.112 INCHES |
| MOUNTING THREAD QUANTITY | 40 PER INCH |
| MOUNTING FACILITY PATTERN | TWO POSITION IN-LINE |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 3.000 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5985-01-414-6951
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
