NSN 5985-01-441-5347 S67157549, S67-1575-49, 91820067
Product Details | ANTENNA
5985-01-441-5347 An item consisting of a conductor or a system of conductors specifically designed to radiate and/or receive electromagnetic waves in free space. May include beam-forming devices, drive motors, synchros, radome, and associated mechanical structure.
Part Alternates: S67157549, S67-1575-49, 91820067, 91914192 , 5985-01-441-5347, 01-441-5347, 5985014415347, 014415347
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 FEB 1997 | 01-441-5347 | 00749 ( ANTENNA ) |

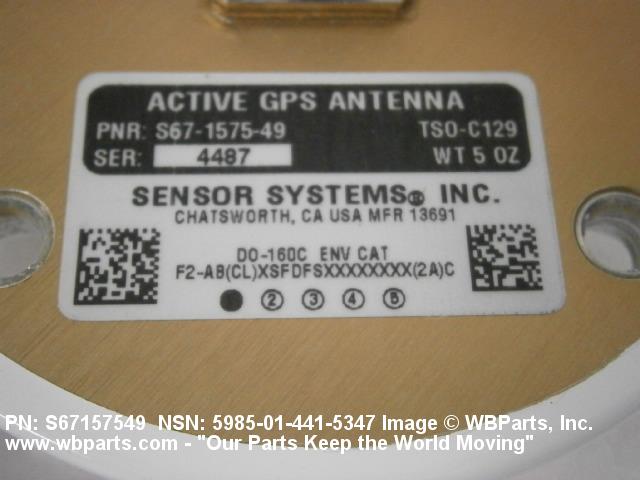

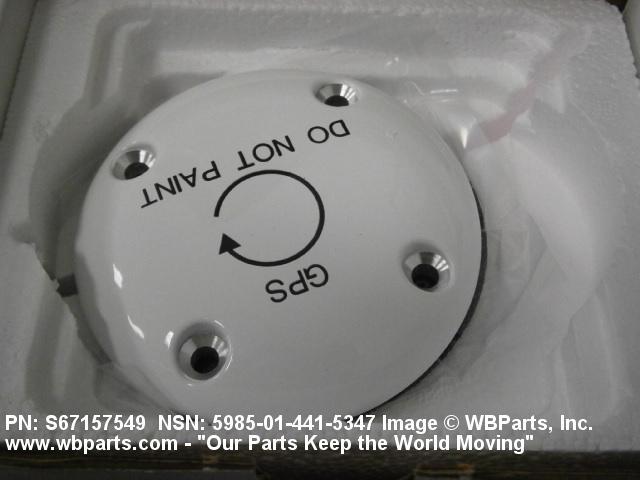

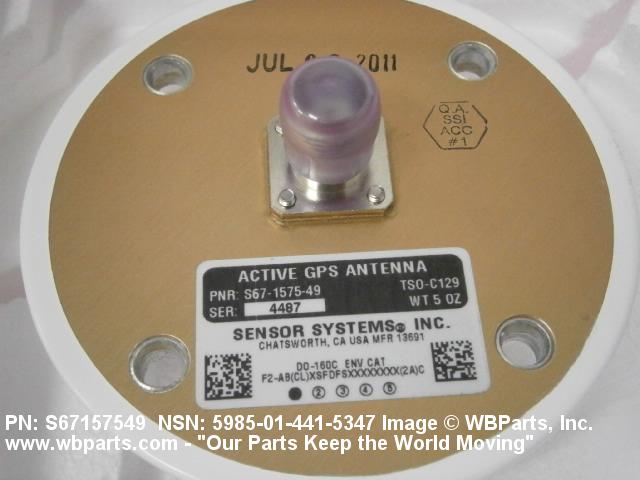

Drawings & Photos | NSN 5985-01-441-5347
Demand History | NSN 5985-01-441-5347
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-01-441-5347 | 2024-09-267 | 1 | US |
| 5985-01-441-5347 | 2017-09-261 | 1 | Malaysia |
| S67157549 | 2011-12-353 | 1 | Malaysia |
| S67157549 | 2009-09-273 | 1 | Malaysia |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-441-5347
Technical Data | NSN 5985-01-441-5347
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | SPHERICAL ARRAY SINGLE ANTENNA ELEMENT |
| FREQUENCY RATING | 1575.420 MEGAHERTZ NOMINAL SINGLE ANTENNA ELEMENT |
| POWER RATING | 1.000 WATTS AVERAGE SINGLE ANTENNA ELEMENT |
| POWER GAIN IN DECIBELS | 40.00 SINGLE ANTENNA ELEMENT |
| CHARACTERISTIC IMPEDANCE IN OHMS | 50.0 SINGLE ANTENNA ELEMENT |
| TERMINAL TYPE | RECEPTACLE, COAXIAL SINGLE ANTENNA ELEMENT |
| COAXIAL CONNECTOR SERIES DESIGNATION | TNC SINGLE ANTENNA ELEMENT |
| OVERALL HEIGHT | 1.320 INCHES NOMINAL |
| OVERALL DIAMETER | 3.500 INCHES NOMINAL |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE QUANTITY | 4 |
| MOUNTING HOLE DIAMETER | 0.218 INCHES MINIMUM AND 0.229 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | GLOBAL POSITIONING SYSTEM |
Restrictions/Controls & Freight Information | NSN 5985-01-441-5347
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
