NSN 5985-01-472-4063 1650003003, 16500-03003, 3AF5A
Product Details | WAVEGUIDE SWITCH
5985-01-472-4063 An item specifically designed for mechanically or electronically positioning one or more waveguide sections so as to couple it or them to other sections in a waveguide system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Part Alternates: 1650003003, 16500-03003, 3AF5A, 5985-01-472-4063, 01-472-4063, 5985014724063, 014724063
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 MAR 2000 | 01-472-4063 | 05118 ( SWITCH, WAVEGUIDE ) |
Drawings & Photos | NSN 5985-01-472-4063
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-472-4063
Technical Data | NSN 5985-01-472-4063
| Characteristic | Specifications |
|---|---|
| RF POWER HANDLING CAPABILITY | 5.0 KILOWATTS PEAK SINGLE |
| INSERTION LOSS IN DECIBELS | 0.05 SINGLE |
| MINIMUM CROSSTALK RATING IN DECIBELS | 70.0 SINGLE |
| ACTUATOR OPERATING METHOD | MOTOR |
| SWITCH TYPE | TRANSFER |
| COUPLING POSITION QUANTITY | 0 |

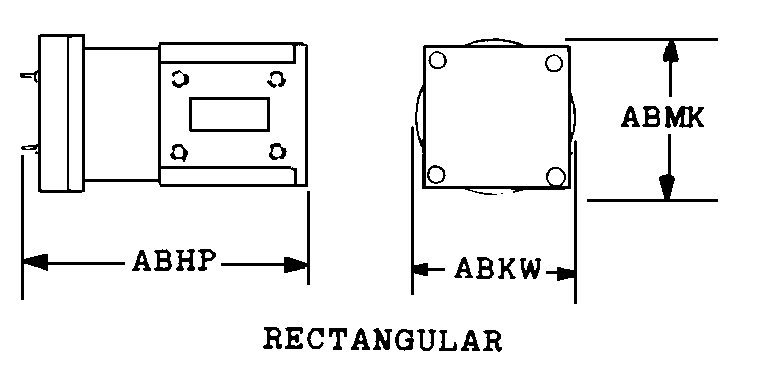

| BODY STYLE | 16C RECTANGULAR |
| OVERALL LENGTH | 5.600 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.250 INCHES MAXIMUM |
| OVERALL WIDTH | 1.750 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY BODY |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| SPECIAL FEATURES | FREQ. 5.85- 6.425 GHZ LIFE: 200,000 OPERATIONS, FINISH: SATIN BLACK ENAMEL, DRIVE: LATCHING GENEVANO BOUNCE, AUXILIARY SWITCH OPERATIVSWR LESS THAN 1.1 |
| III UNPACKAGED UNIT WEIGHT | 1.500 POUNDS |
