NSN 5985-01-475-8711 1107981, 110798-1, 01-475-8711
Product Details | FILTER WAVEGUIDE ASSEMBLY
5985-01-475-8711 A WAVEGUIDE ASSEMBLY which is specifically designed to pass frequencies within a range and to suppress frequencies outside that range. It may contain one or more tuned cavities, and tuning devices such as capacitive screws and the like.
Part Alternates: 1107981, 110798-1, 5985-01-475-8711, 01-475-8711, 5985014758711, 014758711
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 JUN 2000 | 01-475-8711 | 49869 ( WAVEGUIDE ASSEMBLY, FILTER ) |
Drawings & Photos | NSN 5985-01-475-8711
Cross Reference | NSN 5985-01-475-8711
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 110798-1 | 50478 | GENERAL DYNAMICS SATCOM TECHNOLOGIES, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-475-8711
Technical Data | NSN 5985-01-475-8711
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B1 STRAIGHT TYPE |
| WAVEGUIDE LENGTH | 6.350 INCHES NOMINAL |

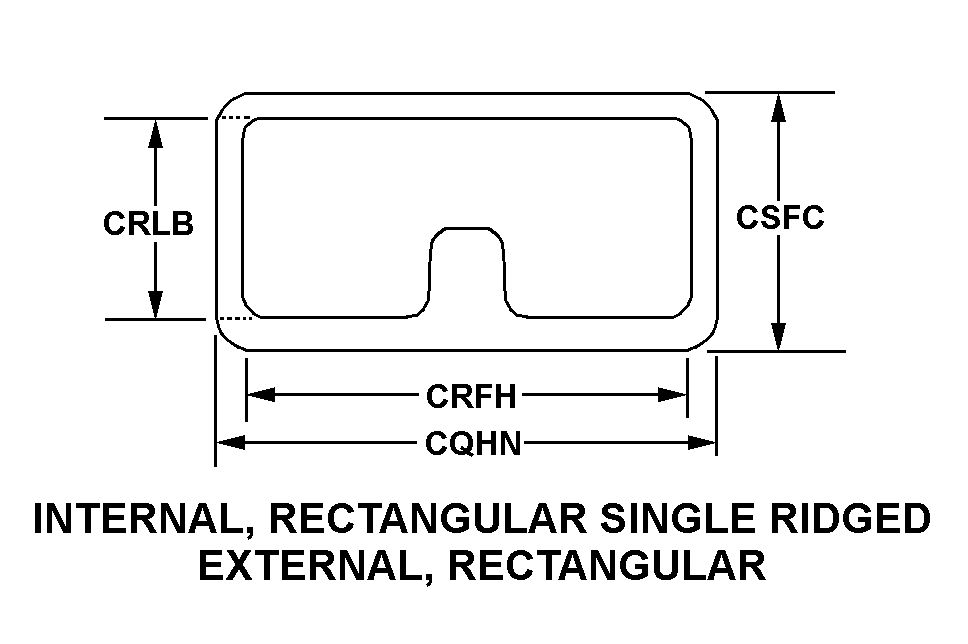

| CROSS-SECTIONAL SHAPE STYLE | A3 INTERNAL, RECTANGULAR SINGLE RIDGED EXTERNAL, RECTANGULAR |
| MATERIAL | ALUMINUM SINGLE TUBING SEGMENT |
| SURFACE TREATMENT | CADMIUM FIRST FLANGE ALL SURFACES PAINT SECOND TUBING SEGMENT OUTSIDE SURFACES |
| (NON-CORE DATA) SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541C,TYPE II,CLASS2 MIL SPEC 1ST TREATMENT RESPONSE FIRST FLANGE ALL SURFACES FED-STD-595 FED STD 2ND TREATMENT RESPONSE SECOND TUBING SEGMENT OUTSIDE SURFACES |
| FLANGE QUANTITY | 2 |
| FLANGE STYLE | C22C CONTACT, DOUBLE RIDGE TYPE ALL FLANGES |
| SPECIFIED FREQUENCY | 3.625 GIGAHERTZ MINIMUM AND 4.2 GIGAHERTZ MAXIMUM |
| INSERTION LOSS IN DECIBELS | 0.035 |
| VOLTAGE STANDING WAVE RATIO | 1.10 |
| SPECIAL FEATURES | MANUFACTURER NOMENCLATURE TRANSMIT REJECT FILTER C-BAND; FREQUENCY RANGE 3.625 - 4.200 GHZ; PRESSURIZATION SEALED TO 5 PSI; TEMPERATURE RANGE -40 TO +80 DEGREES C; INTERIOR AND FLANGE FACE FINISH ARE CADMIUM PLATED; EXTERIOR WHITE PAINT |
Restrictions/Controls & Freight Information | NSN 5985-01-475-8711
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
