Product Details | ANTENNA

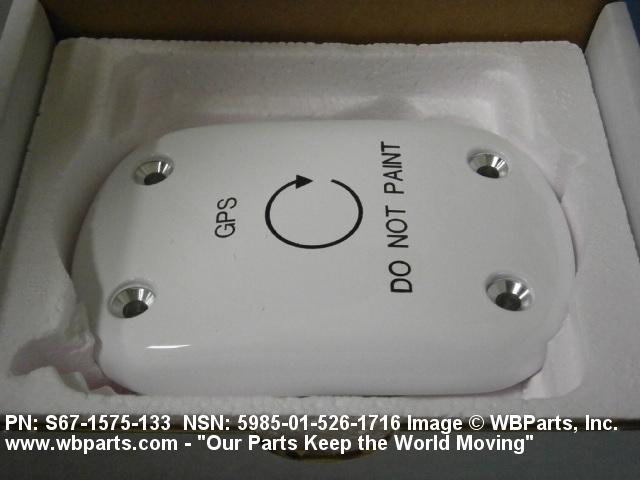

5985-01-526-1716 An item consisting of a conductor or a system of conductors specifically designed to radiate and/or receive electromagnetic waves in free space. May include beam-forming devices, drive motors, synchros, radome, and associated mechanical structure.
Part Alternates: S671575133, S67-1575-133, 17B4U50531, 17B4U5053-1 , 5985-01-526-1716, 01-526-1716, 5985015261716, 015261716
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 DEC 2004 | 01-526-1716 | 00749 ( ANTENNA ) |
Drawings & Photos | NSN 5985-01-526-1716
Demand History | NSN 5985-01-526-1716
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-01-526-1716 | 2018-06-172 | 15 | DIBBS |
| 5985-01-526-1716 | 2018-04-95 | 2 | DIBBS |
| 5985-01-526-1716 | 2018-02-36 | 2 | DIBBS |
| S671575133 | 2014-05-141 | 2 | UK |
| S671575133 | 2012-04-102 | 1 | United States |
| S671575133 | 2011-11-306 | 40 | United States |
| 5985-01-526-1716 | 2010-09-257 | 2 | US |
| S671575133 | 2007-11-323 | 6 | Singapore |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-526-1716
Related Products | NSN 5985-01-526-1716
Technical Data | NSN 5985-01-526-1716
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | ARRAY SINGLE ANTENNA ELEMENT |
| ELECTROMAGNETIC POLARIZATION TYPE | RIGHT CIRCULAR SINGLE ANTENNA ELEMENT |
| FREQUENCY RATING | 1575.420 MEGAHERTZ NOMINAL SINGLE ANTENNA ELEMENT |
| POWER GAIN IN DECIBELS | 33.00 SINGLE ANTENNA ELEMENT |
| CHARACTERISTIC IMPEDANCE IN OHMS | 50.0 SINGLE ANTENNA ELEMENT |
| TERMINAL TYPE | RECEPTACLE, COAXIAL SINGLE ANTENNA ELEMENT |
| COAXIAL CONNECTOR SERIES DESIGNATION | TNC SINGLE ANTENNA ELEMENT |
| OVERALL LENGTH | 4.700 INCHES NOMINAL |
| OVERALL HEIGHT | 1.450 INCHES NOMINAL |
| OVERALL WIDTH | 3.000 INCHES NOMINAL |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE QUANTITY | 4 |
| MOUNTING HOLE DIAMETER | 0.218 INCHES MINIMUM AND 0.229 INCHES MAXIMUM |

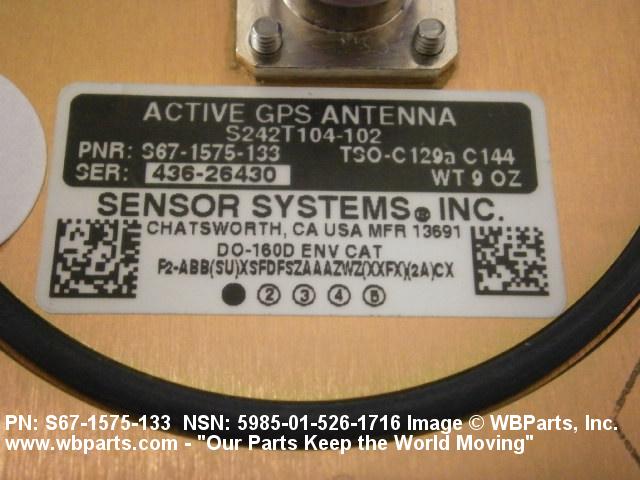

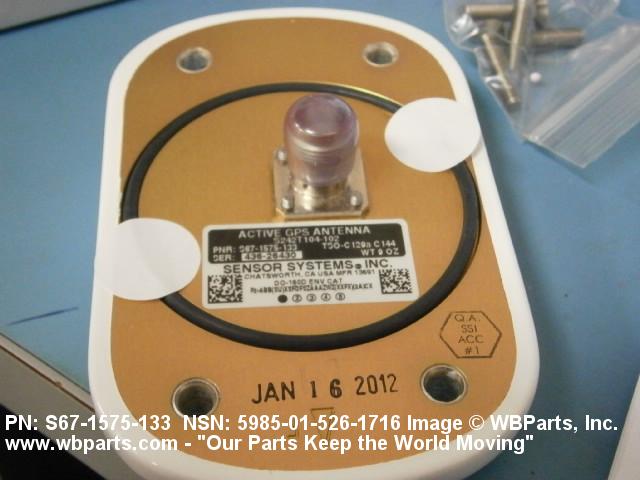

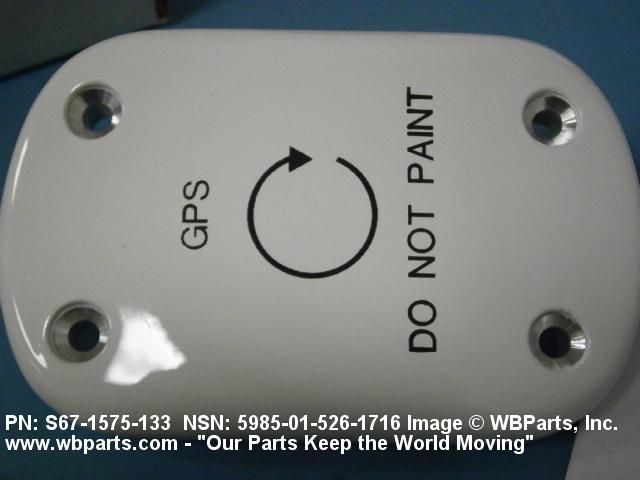

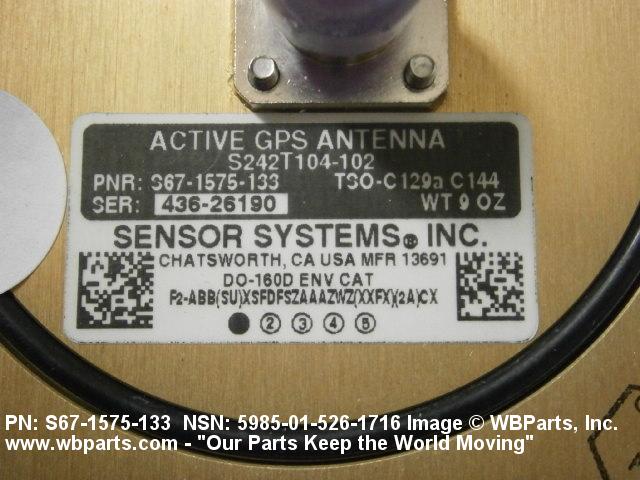

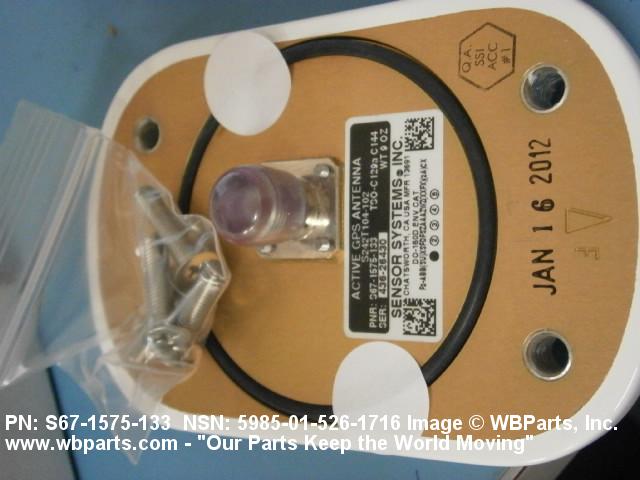

| SPECIAL FEATURES | ARINC 743A ACTIVE ANTENNA LOW PROFILE WITH RADOME. 33 DB GAIN. |
| III VOLTAGE RATING IN VOLTS | 24.0 DC SINGLE ANTENNA ELEMENT |
| III END ITEM IDENTIFICATION | C-17 AIRCRAFT |
